Fuel Pump Resistor: Installation: Installation
WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FUEL PUMP RESISTOR

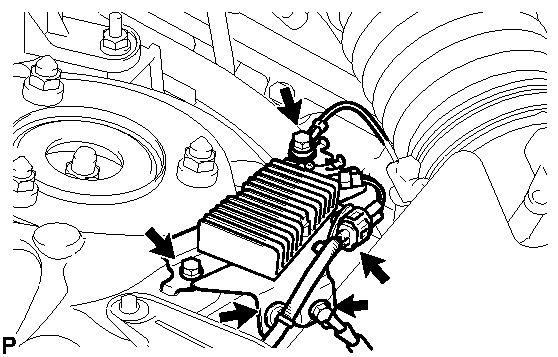

- Install the fuel pump resistor with the bolt.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- Install the ground wires with the 2 bolts.
Torque: 8.0 N*m (80 kgf*cm, 69 in.*lbf)
- Connect the connector with the clamp.
- Install the fuel pump resistor with the bolt.
- INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 116
- INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 117
