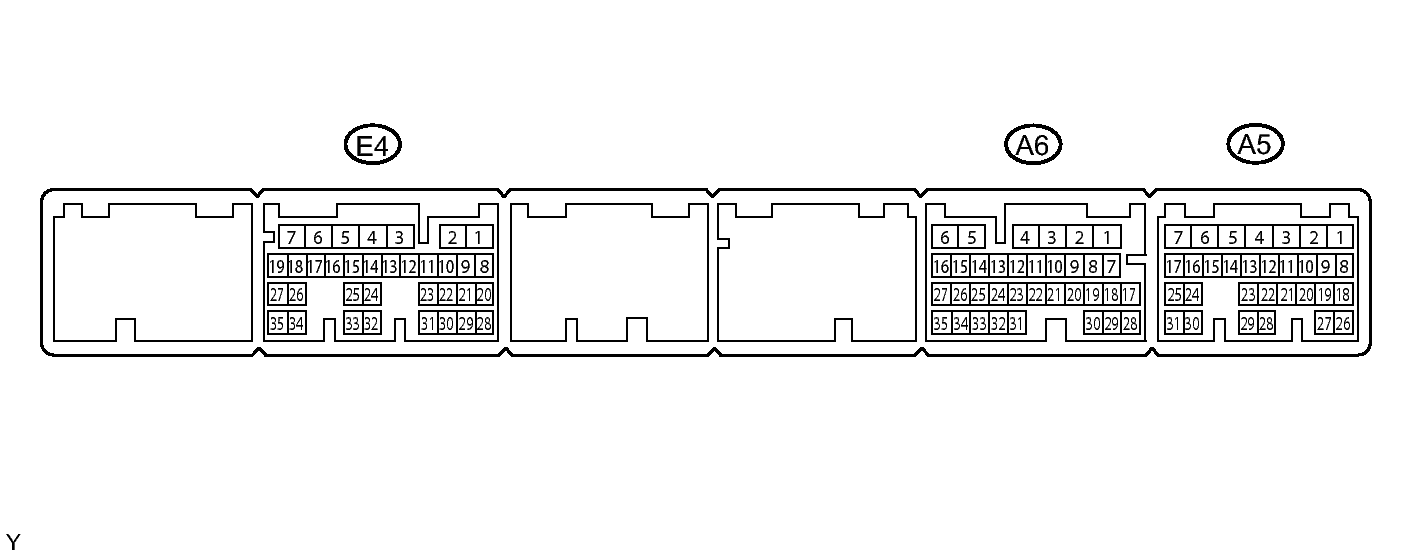

Terminals Of ECM
- CHECK ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition A6-3 (TC) - E4-7 (E1) V - BR Terminal TC of DLC3 Engine switch on (IG) 10 to 14 V A6-3 (TC) - E4-7 (E1) V - BR Terminal TC of DLC3 Terminals TC and CG of DLC3 connected Below 1 V A6-4 (STP) - E4-7 (E1) R-B - BR Stop light signal Engine switch on (IG), Brake pedal depressed 10 to 14 V A6-4 (STP) - E4-7 (E1) R-B - BR Stop light signal Engine switch on (IG), Brake pedal released Below 1 V A6-19 (SFTD)*2 - E4-7 (E1) P - BR Down shift switch signal Engine switch on (IG) and shift lever in S 10 to 14 V Engine switch on (IG) and shift lever in "-" (Down shift) Below 1 V A6-30 (SFTU)*2 - E4-7 (E1) Y - BR Up shift switch signal Engine switch on (IG) and shift lever in S 10 to 14 V Engine switch on (IG) and shift lever in "+" (Up shift) Below 1 V A6-31 (CCS) - E4-7 (E1) B-L - BR Cruise control main switch circuit Engine switch on (IG) 10 to 14 V A6-31 (CCS) - E4-7 (E1) B-L - BR Cruise control main switch circuit CANCEL switch ON 6.6 to 10.1 V A6-31 (CCS) - E4-7 (E1) B-L - BR Cruise control main switch circuit SET/COAST switch ON 4.5 to 7.1 V A6-31 (CCS) - E4-7 (E1) B-L - BR Cruise control main switch circuit RES/ACC switch ON 2.3 to 4.0 V A6-31 (CCS) - E4-7 (E1) B-L - BR Cruise control main switch circuit Engine switch on (IG), Cruise control main switch ON Below 1 V A5-8 (ST1-) - E4-7 (E1) G-W - BR Stop light signal Engine switch on (IG), Brake pedal depressed Below 1 V A5-8 (ST1-) - E4-7 (E1) G-W - BR Stop light signal Engine switch on (IG), Brake pedal released 10 to 14 V A5-9 (CLSW)*1 - E4-7 (E1) W-G - BR Clutch switch assembly circuit Clutch pedal depressed Below 1 V A5-9 (CLSW)*1 - E4-7 (E1) W-G - BR Clutch switch assembly circuit Clutch pedal released 10 to 14 V *1: Manual Transmission
*2: Automatic Transmission
