System Diagram

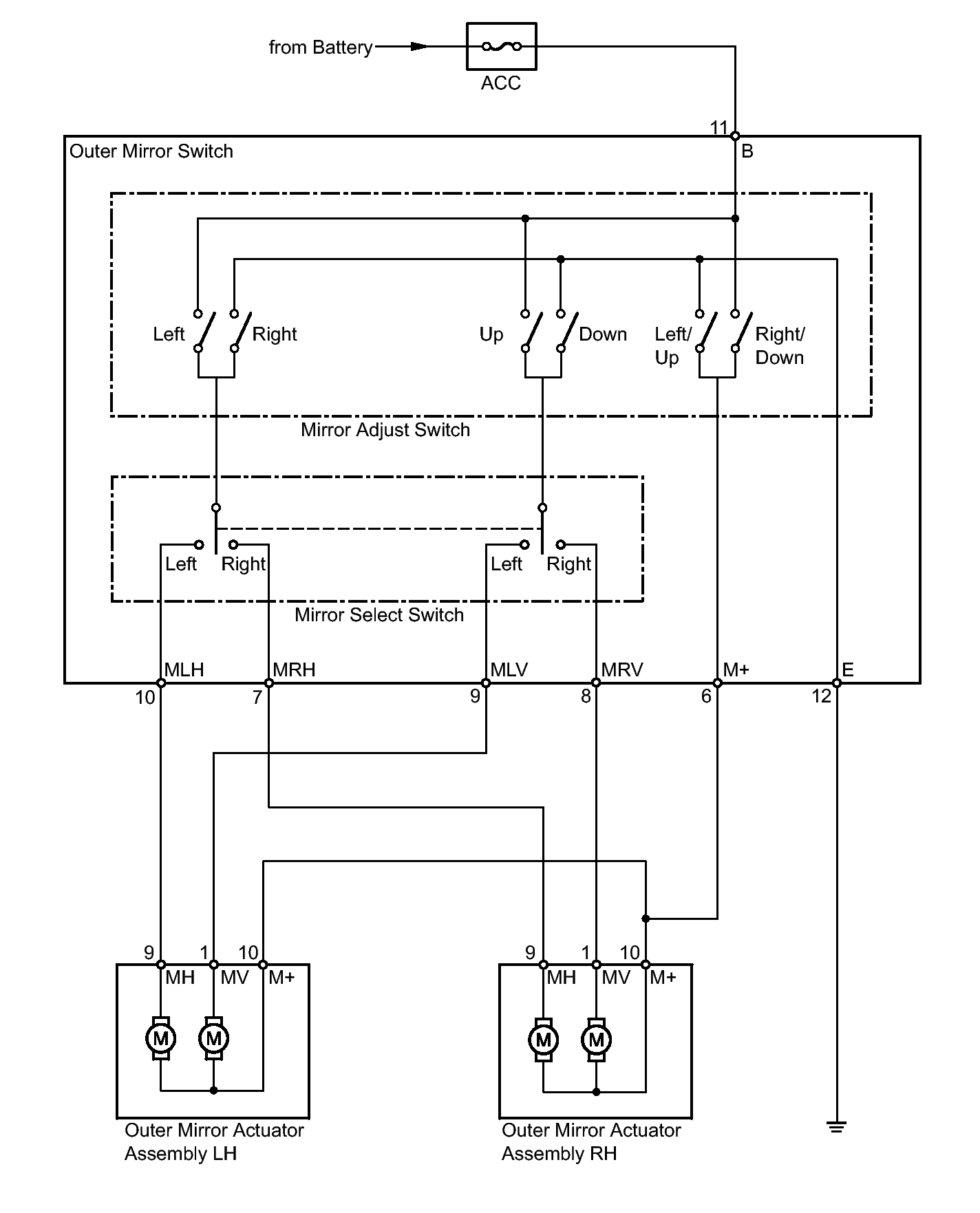

Fig 1: Identifying Power Mirror Control Wiring Diagram (W/O Memory) (1 Of 2)
GTY257451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Power Mirror Control System Diagram (W/O Memory) (2 Of 2)
GTY393220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
