Steering Wheel: Installation: Installation

  1. INSTALL STEERING PAD ATTACHING SCREW
    1. Install the 2 steering pad attaching screws to the lower steering wheel boss cover.
      Fig 1: Identifying Steering Pad Attaching Screws
      GTY109167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER STEERING WHEEL BOSS COVER
    1. Engage the 2 claws to install the lower steering wheel boss cover to the steering wheel sub-assembly.
      Fig 2: Identifying Lower Steering Wheel Boss Cover Claws
      GTY140386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

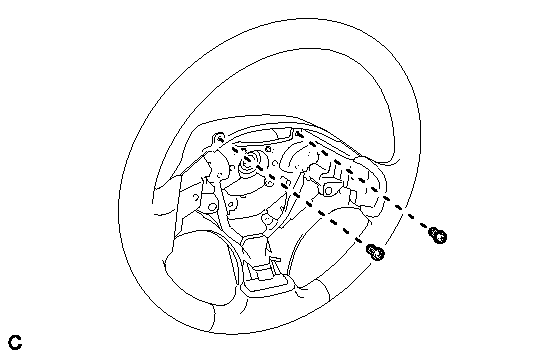

      Fig 3: Identifying Lower Steering Wheel Boss Cover Screws
      GTY256947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SHIFT PADDLE SWITCH (w/ Shift Paddle Switch)
    1. Install the shift paddle switch. Refer to INSTALLATION - Step 1 for A760E. Refer to INSTALLATION - Step 1 for A960E).
  4. INSTALL CRUISE CONTROL SWITCH WIRE
  5. INSTALL CRUISE CONTROL MAIN SWITCH  . Refer to INSTALLATION - Step 1
  6. INSTALL STEERING PAD SWITCH ASSEMBLY  See step  1
  7. INSTALL STEERING SHAKE DAMPER
    1. Install the steering shake damper to the steering wheel assembly with the 2 screws.

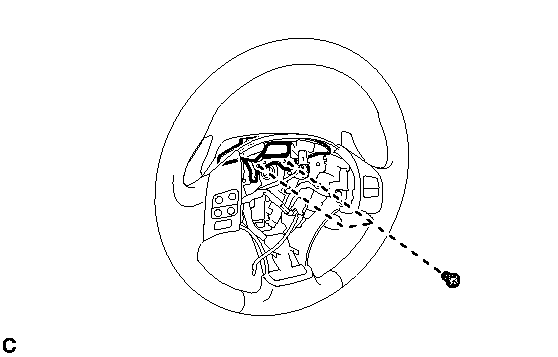

      Fig 4: Identifying Steering Shake Damper Screws
      GTY257154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)

  8. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  9. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 6
  10. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks on the steering wheel assembly and steering main shaft.

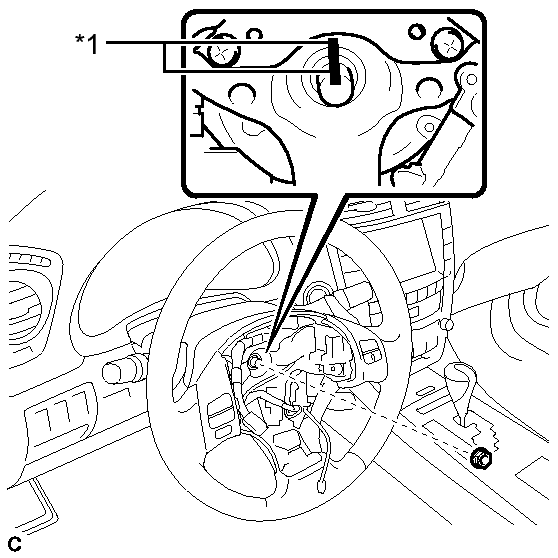

      Fig 5: Identifying Steering Wheel Assembly Matchmark
      GTY283438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
    2. Install the steering wheel assembly set nut.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Connect the connectors to the spiral cable sub-assembly.
  11. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  12. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  13. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  14. INSPECT STEERING WHEEL CENTER POINT
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:
    • Make sure that the cable has been disconnected from the battery terminal for at least 2 seconds before reconnecting the cable.
    • Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
  16. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  17. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
