Audio and Visual System (w/o Navigation System without Multi-display)

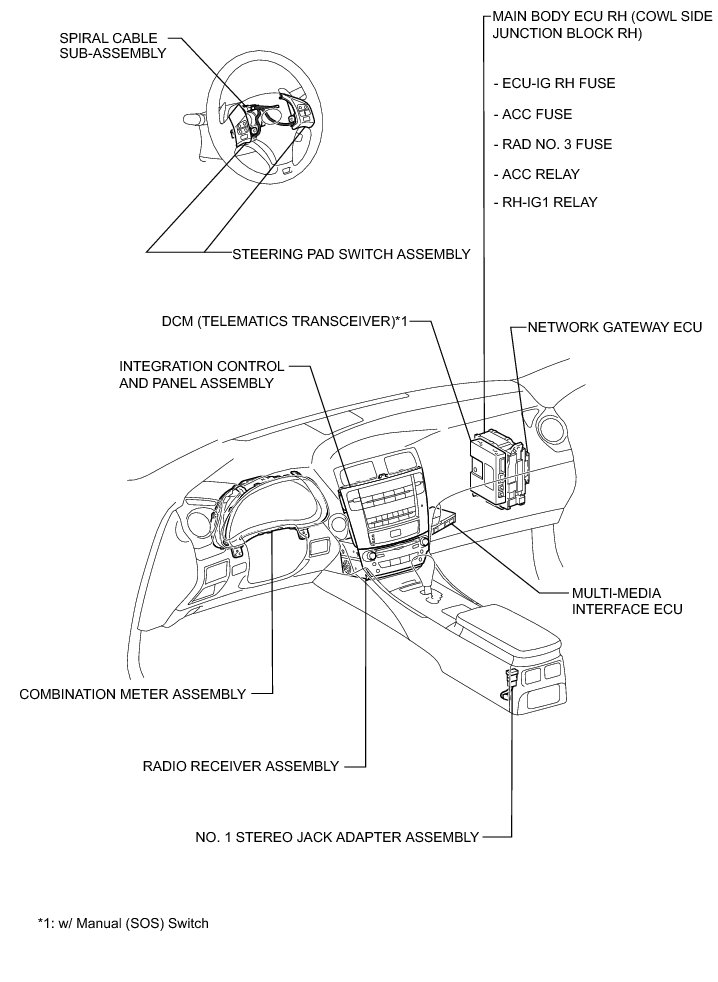

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): PARTS LOCATION





Instrument Panel:
