Memory Positioning Switch: Testing and Inspection

SEAT: SEAT MEMORY SWITCH: INSPECTION

1. INSPECT SEAT MEMORY SWITCH LH

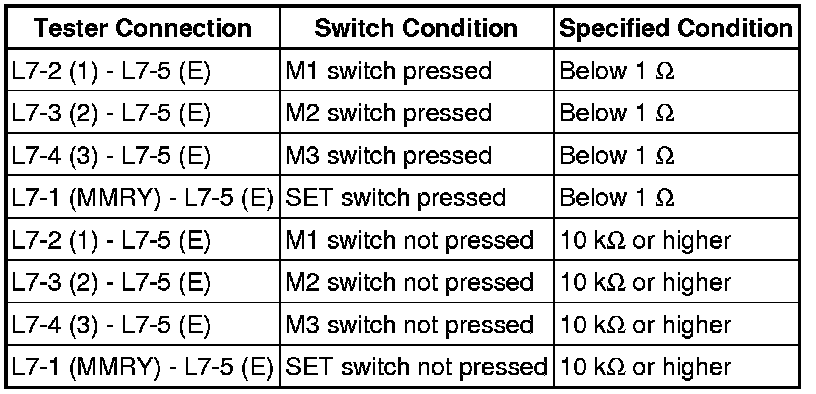

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the seat memory switch LH.

2. INSPECT SEAT MEMORY SWITCH RH

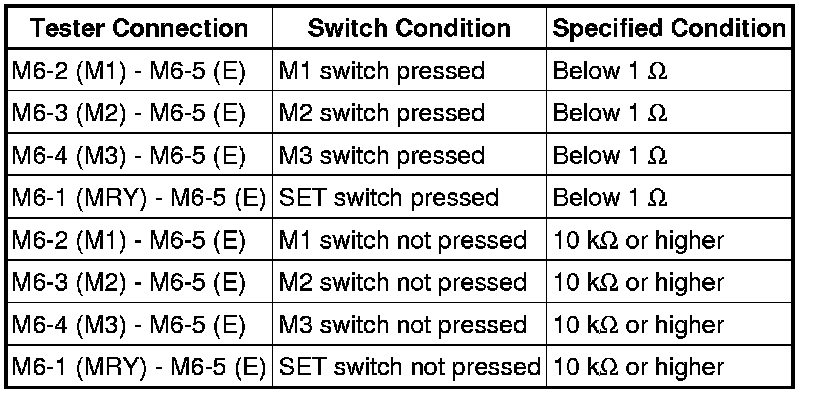

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the seat memory switch RH.
