Disassembly

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLY

1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL

(a) Remove the 6 screws.

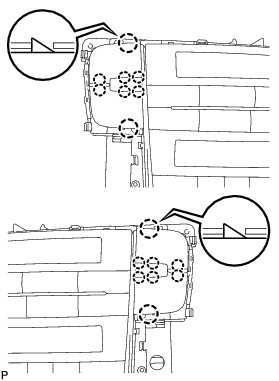

(b) Disengage the 5 claws and remove the center instrument cluster finish panel.





2. REMOVE NO. 1 CONTROL KNOB SUB-ASSEMBLY

(a) Disengage the 16 claws and remove the No. 1 control knob sub-assembly.
