DTC P0111: Intake Air Temperature Sensor Gradient Too High: Wiring Diagram

WARNING: This page is about a different car, the 2012 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

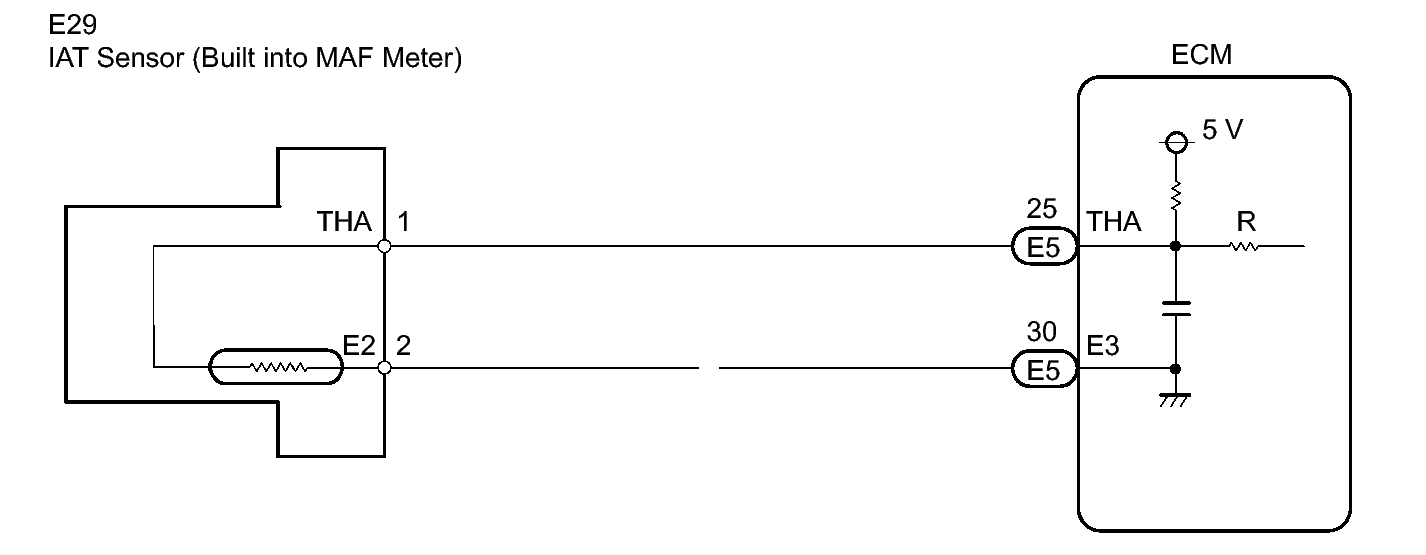

Fig 1: IAT Sensor And ECM Wiring Diagram
GTY393946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
