Engine Switch Indicator Circuit: Procedure

1. Remove the engine switch (for 2GR-FSE: Refer to REMOVAL , for 4GR-FSE: Refer to REMOVAL ).

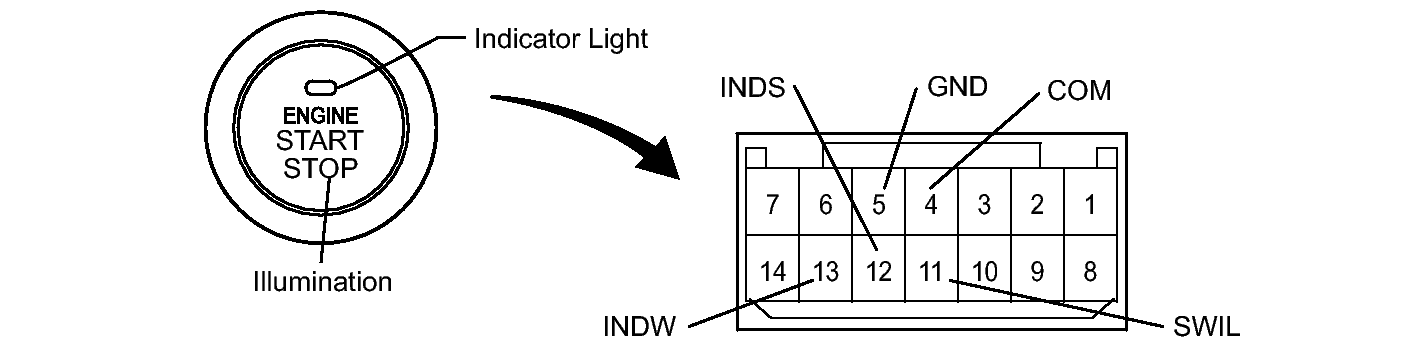

   Fig 1: Engine Switch Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.
   NOTE:

   • If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator does not illuminate.
   • If the voltage is too low, the indicator will not illuminate.
   OK



   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 11 (SWIL) Battery negative (-) → Terminal 4 (COM) or 5 (GND)	Illuminates
   Battery positive (+) → Terminal 12 (INDS) Battery negative (-) → Terminal 4 (COM) or 5 (GND)	Illuminates
   Battery positive (+) → Terminal 13 (INDW) Battery negative (-) → Terminal 4 (COM) or 5 (GND)	Illuminates

3. Proceed to next step based on inspection result.

   Result	Proceed to
   OK	A
   NG (for 2GR-FSE)	B
   NG (for 4GR-FSE)	C

B → See step   4

C → See step   5

A: Go to next step

1. Disconnect the J31 switch connector.

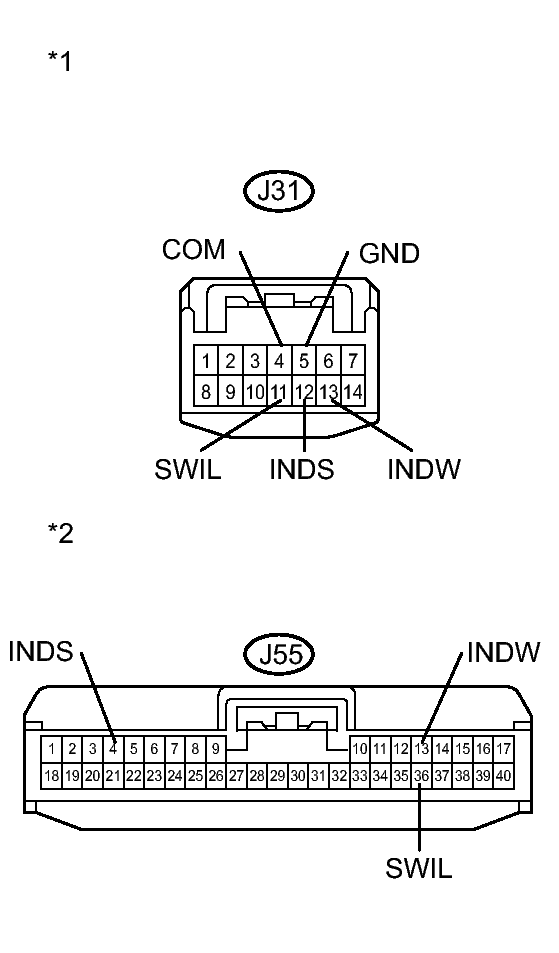

   Fig 2: J55 And J31 Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the J55 ECU connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J31-11 (SWIL) - J55-36 (SWIL)	Always	Below 1 Ω
   J31-12 (INDS) - J55-4 (INDS)	Always	Below 1 Ω
   J31-13 (INDW) - J55-13 (INDW)	Always	Below 1 Ω
   J31-5 (GND) - Body ground	Always	Below 1 Ω
   J31-4 (COM) - Body ground	Always	Below 1 Ω
   J31-11 (SWIL) or J55-36 (SWIL) - Body ground	Always	10 kΩ or higher
   J31-12 (INDS) or J55-4 (INDS) - Body ground	Always	10 kΩ or higher
   J31-13 (INDW) or J55-13 (INDW) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Engine Switch)
   *2	Front view of wire harness connector (to Power Source Control ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
