Shift Lever: Disassembly: Disassembly

REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the transmission control switch connector from the floor shift assembly.

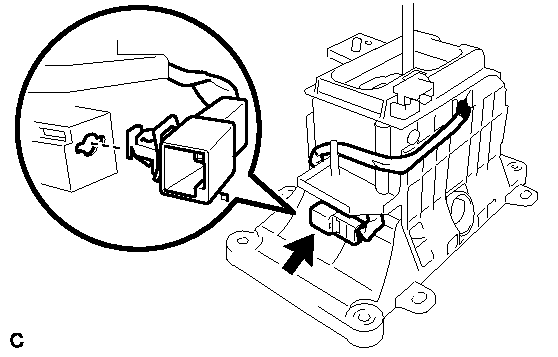

  Fig 1: Identifying Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever support and lock pin from the floor shift assembly.

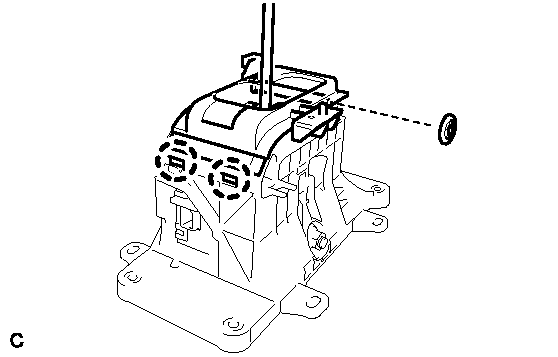

  Fig 2: Identifying Shift Lever Support And Lock Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws and remove the shift lever guide housing from the floor shift assembly.
  NOTE:
  First remove the shift lever support and lock pin, then disengage the 2 claws.
4. Disengage the 2 claws to remove the transmission control switch from the shift lever guide housing.

  Fig 3: Location of Transmission Control Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

Remove the shift lever nut and pull the pin.

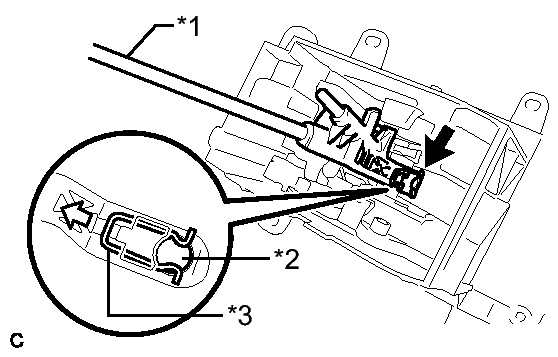

Fig 4: Identifying Shift Lock Control ECU Sub-Assembly Pin

GTY255264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Shift Lever
*2	Pin
*3	Shift Lever Nut

Remove the shift lever sub-assembly.
Remove the 2 screws and shift lock control ECU sub-assembly.

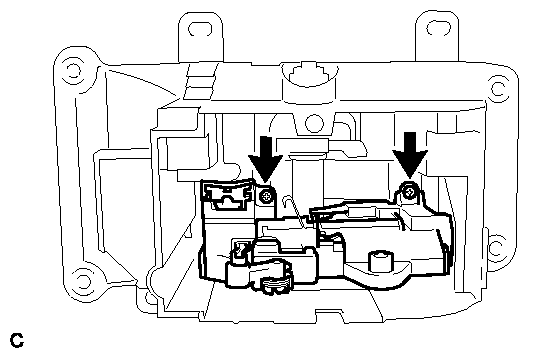

Fig 5: Identifying Shift Lock Control ECU Sub-Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
