Audio and Visual System (W/O Navigation System Without Multi-Display)

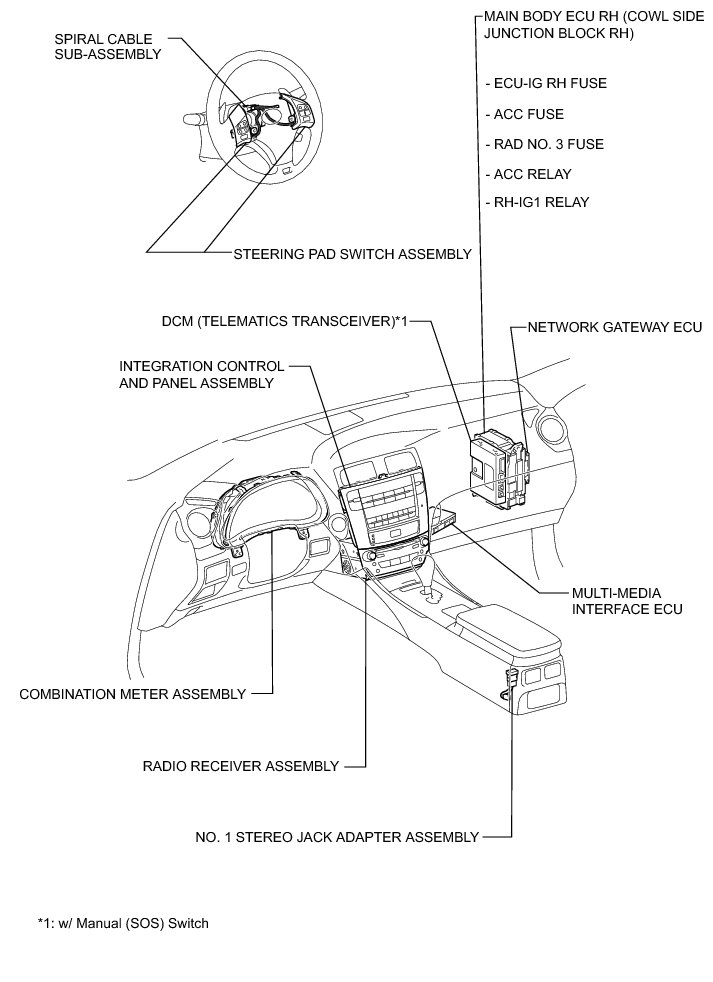

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): PARTS LOCATION





Instrument Panel:
