Reassembly

HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL: REASSEMBLY

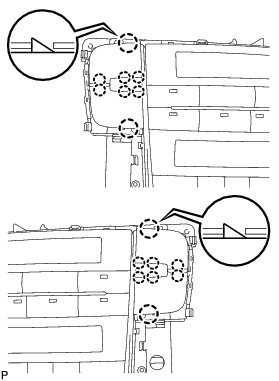

1. INSTALL NO. 1 CONTROL KNOB SUB-ASSEMBLY

(a) Engage the 16 claws, and install the No. 1 control knob sub-assembly.





2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL

(a) Engage the 5 claws.





(b) Install the integration control panel with 6 screws.
