Distance Control ECU Power Source Circuit: Wiring Diagram

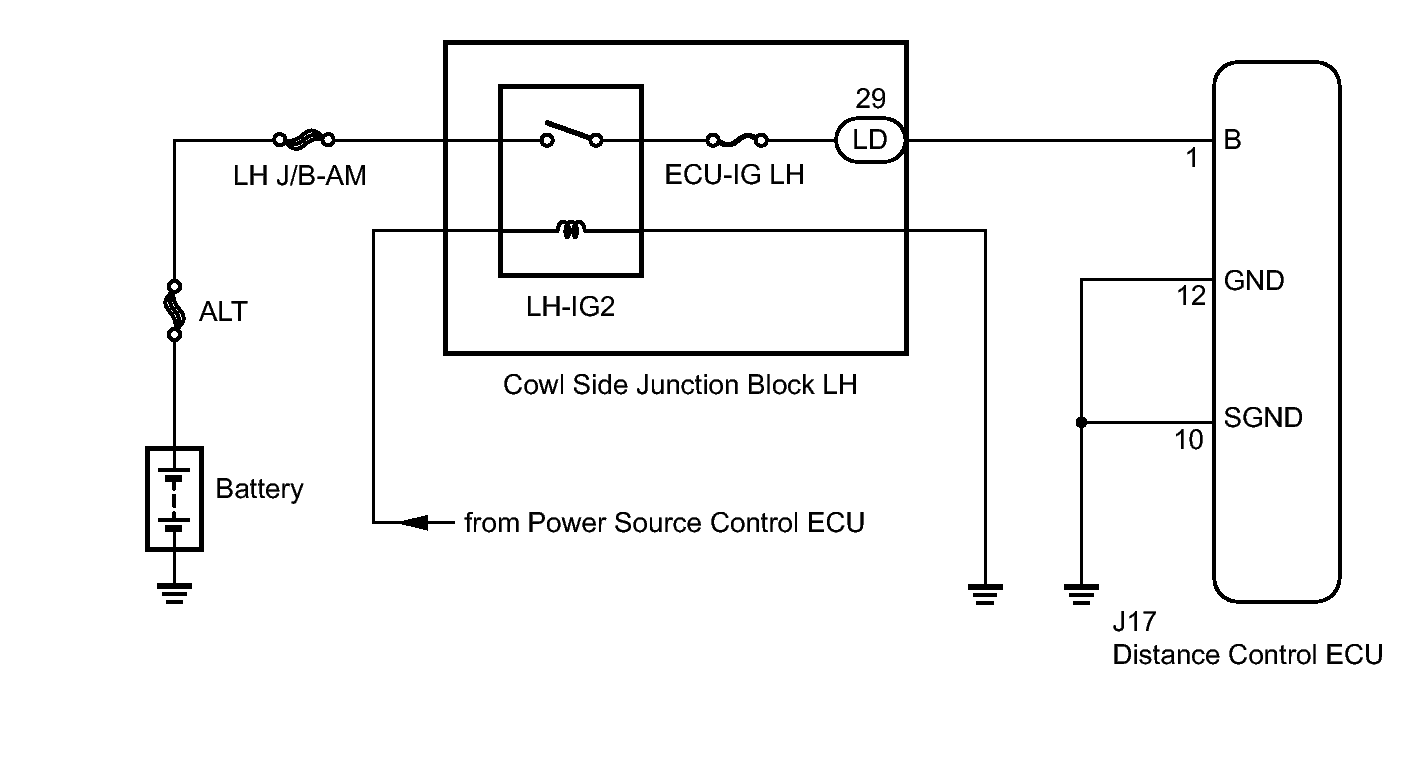

Fig 1: Identifying Distance Control ECU Power Source -- Wiring Diagram
GTY154028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
