Power Seat Switch: Components: Illustration

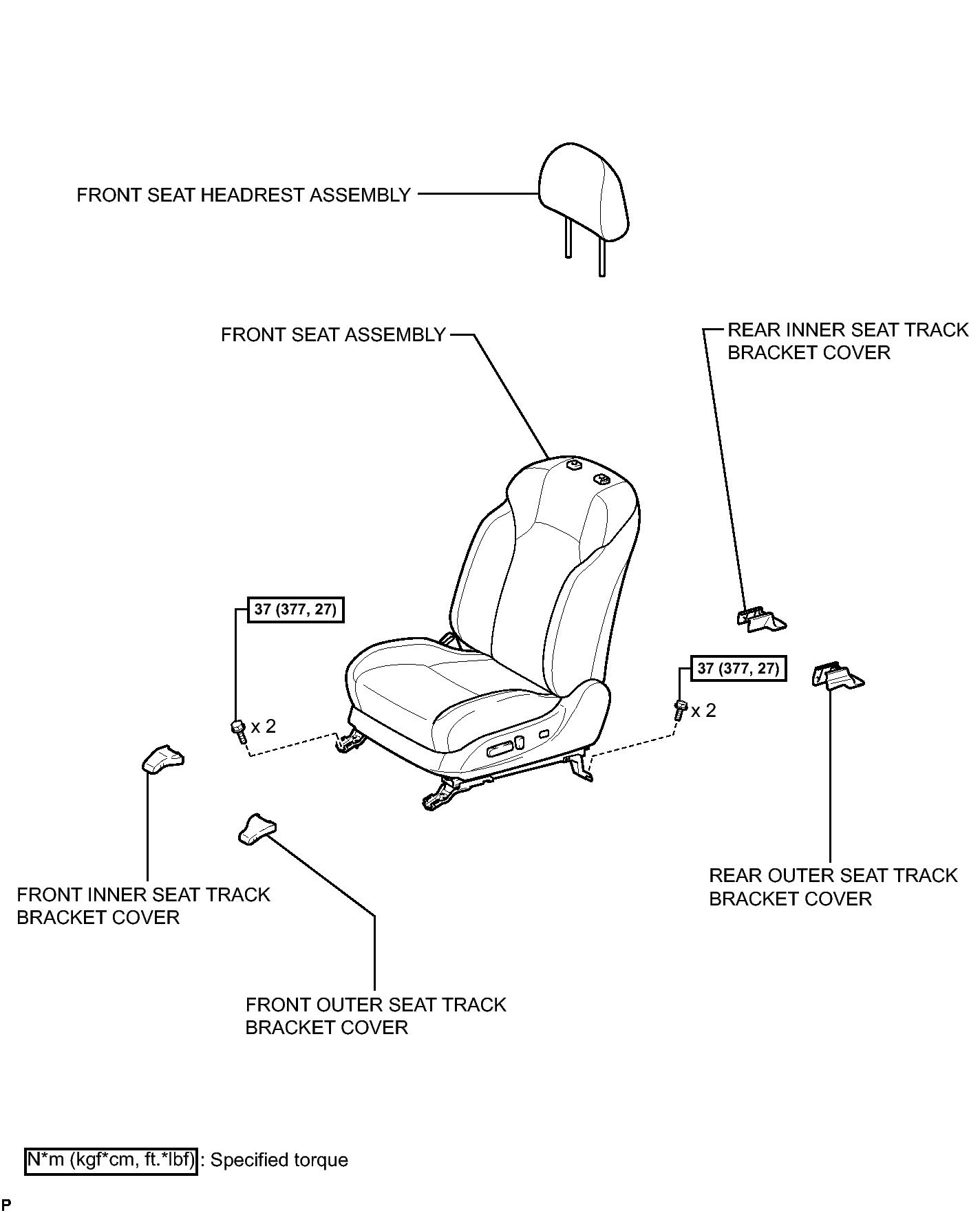

Fig 1: Identifying Power Seat Switch Replacement Components With Torque Specifications (1 Of 2)
GTY142249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

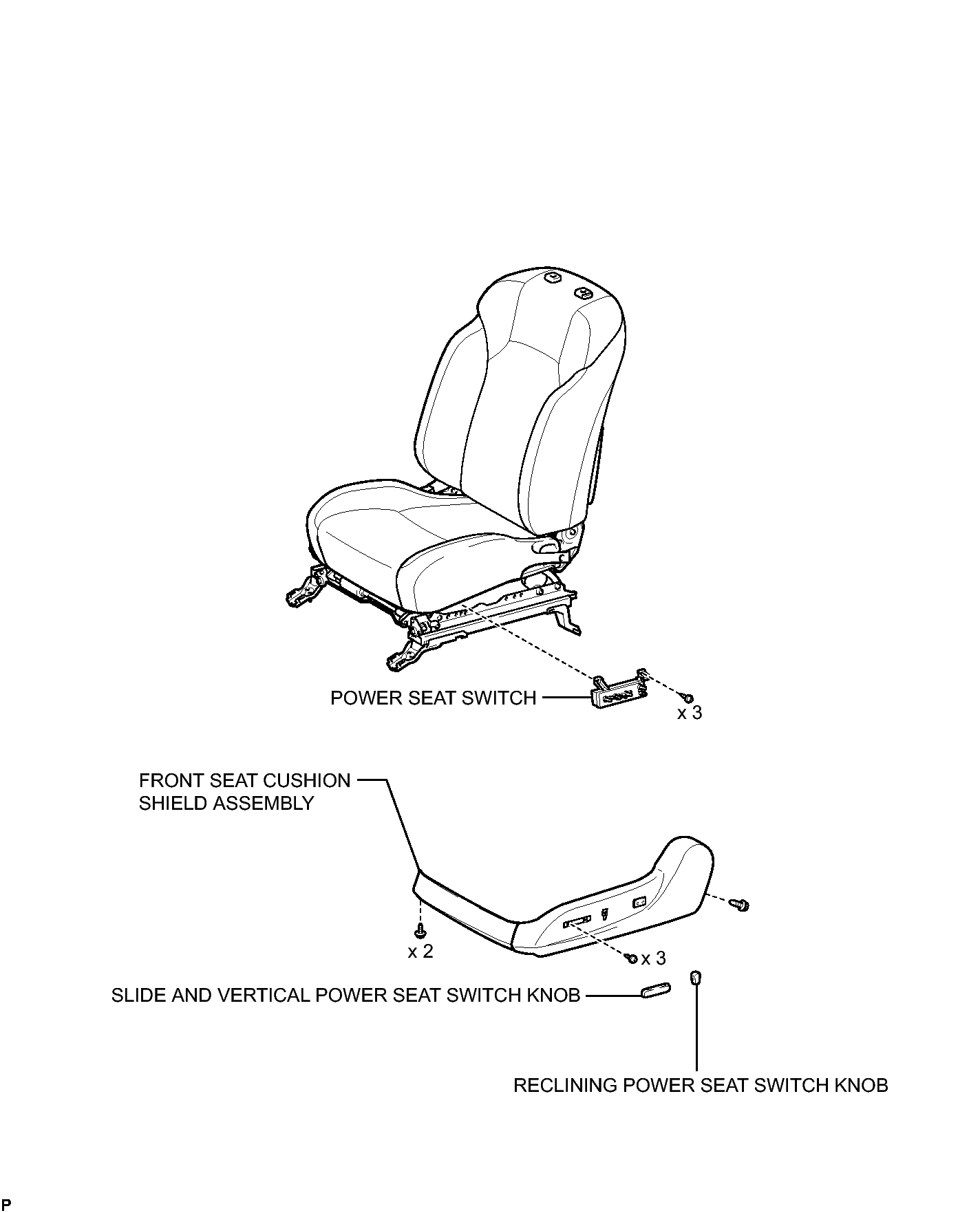

Fig 1: Identifying Power Seat Switch Replacement Components (2 Of 2)
GTY114840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
