EVAP System: Wiring Diagram

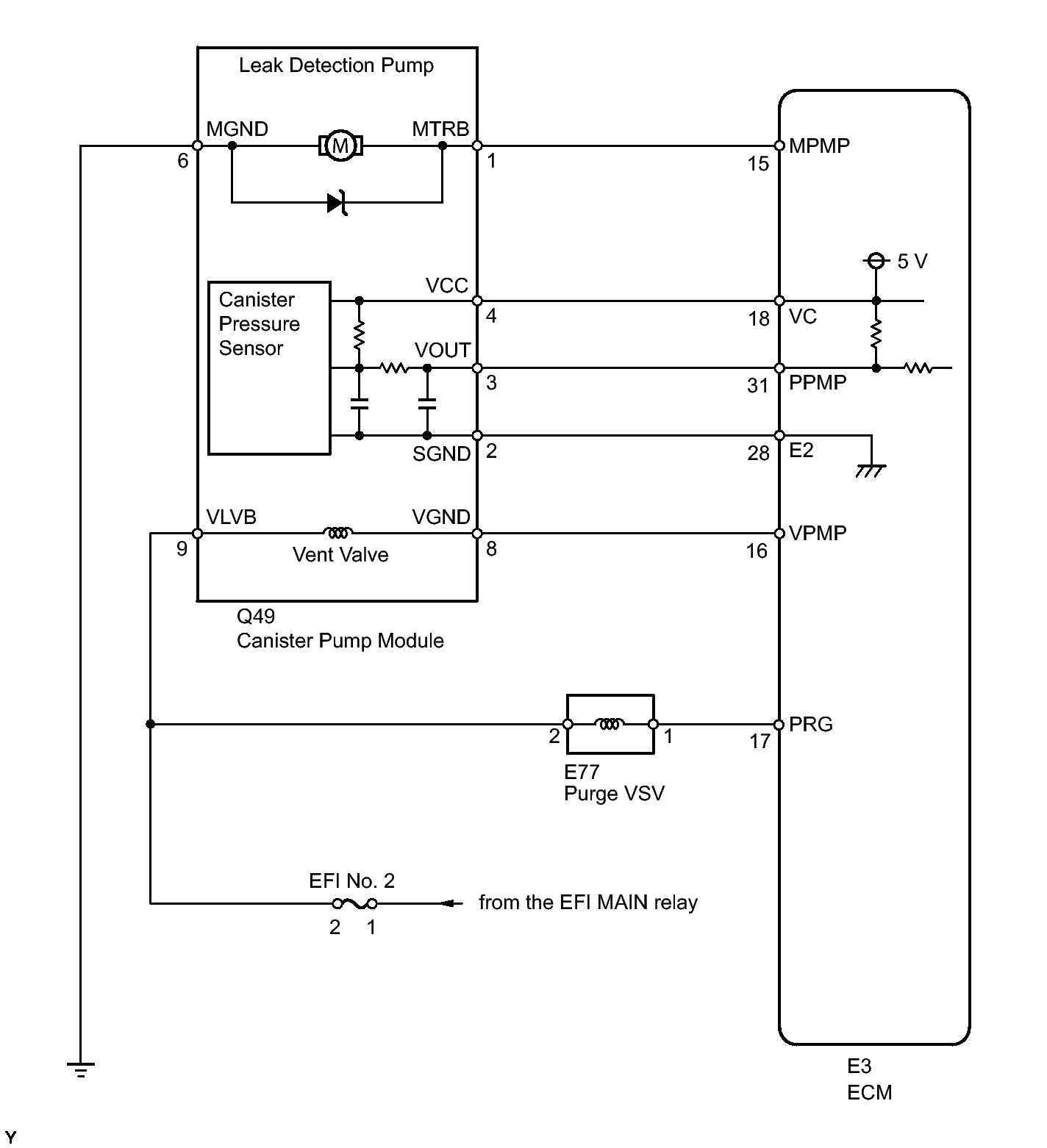

Fig 1: Leak Detection Pump Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
