Power Source Circuit: Procedure

1. Disconnect the J29 connector from the steering lock actuator assembly.

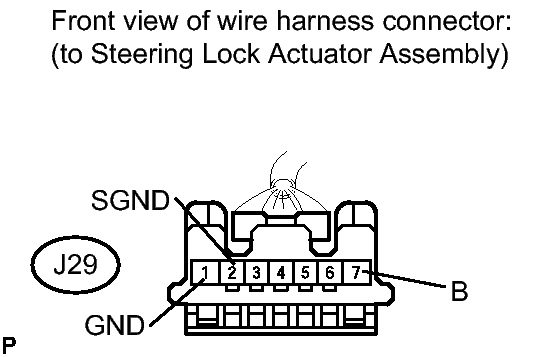

   Fig 1: Identifying Steering Lock Actuator Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J29-1 (GND) - Body ground	Always	Below 1 Ω
   J29-2 (SGND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

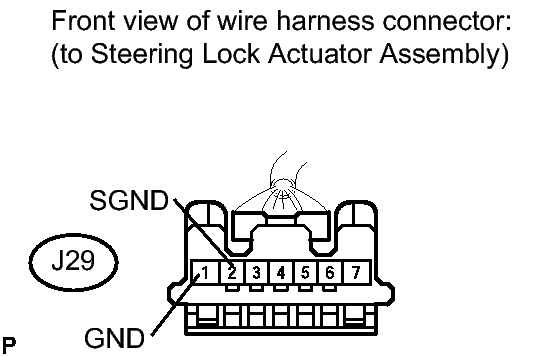

   Fig 2: Identifying Steering Lock Actuator Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J29-7 (B) - J29-1 (GND)	Always	10 to 14 V
   J29-7 (B) - J29-2 (SGND)	Always	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - BATTERY)

OK → See step   3
