Unlock Position Sensor Signal Circuit: Procedure

INSPECT STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

Measure the voltage according to the value(s) in the table below.

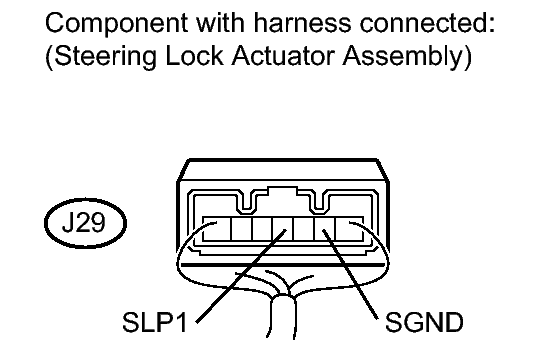

Fig 1: Identifying Steering Lock Actuator Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Voltage

Tester Connection	Condition	Specified Condition
J29-4 (SLP1) - J29-2 (SGND)	Turn the engine switch off Turn the engine switch on (ACC or IG)	Below 1 V

NG → See step 2

OK → See step 4

CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - POWER SOURCE CONTROL ECU)

Disconnect the J29 connector from the steering lock actuator assembly.

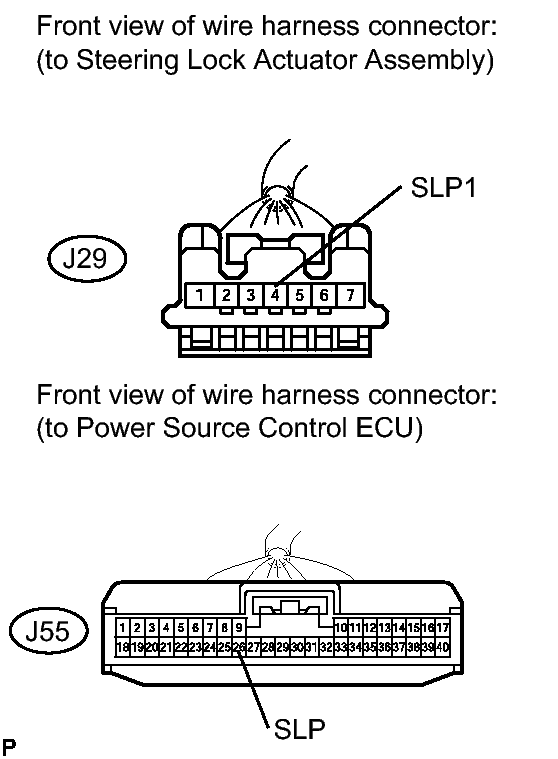

Fig 2: Identifying Steering Lock Actuator And Power Source Control ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the J55 connector from the power source control ECU.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J29-4 (SLP1) - J55-26 (SLP)	Always	Below 1 Ω
J29-4 (SLP1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 3

CHECK SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for start). Refer to HOW TO PROCEED WITH TROUBLESHOOTING
REPLACE STEERING LOCK ACTUATOR ASSEMBLY. Refer to DISASSEMBLY
