Installation

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT ECU: INSTALLATION

1. INSTALL NO. 1 REAR SEAT ENTERTAINMENT ECU BRACKET

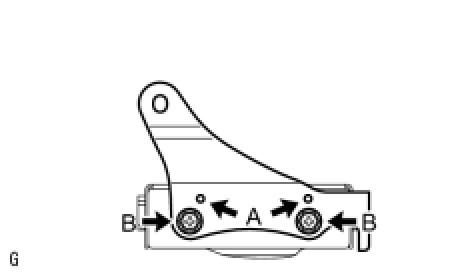

(a) Set the bracket's aligning protrusions labeled A into the ECU holes.

(b) Install the bracket with the 2 bolts labeled B.

2. INSTALL NO. 2 REAR SEAT ENTERTAINMENT ECU BRACKET

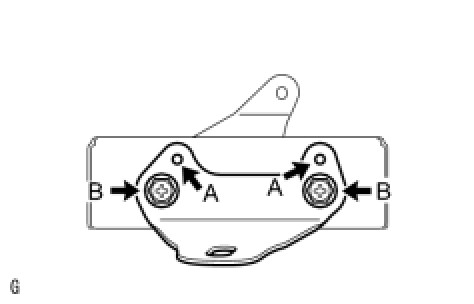

(a) Set the bracket's aligning protrusions labeled A into the ECU holes.

(b) Install the bracket with the 2 bolts labeled B.

3. INSTALL REAR SEAT ENTERTAINMENT ECU WITH BRACKET

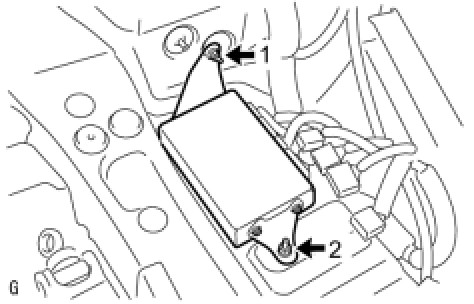

(a) Install the ECU with the 2 nuts in the order shown in the illustration.

(b) Connect the connectors.

4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY Installation

5. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH Installation

6. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler) Installation

7. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation

8. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear Cooler) Installation

9. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation

10. INSTALL REAR FLOOR FINISH PLATE Installation

11. INSTALL DECK TRIM SIDE BOARD RH Installation

12. INSTALL ROPE HOOK Installation

13. INSTALL ROPE HOOK ASSEMBLY Installation

14. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

16. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
