Installation

AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

1. INSTALL NO. 1 RADIO BRACKET

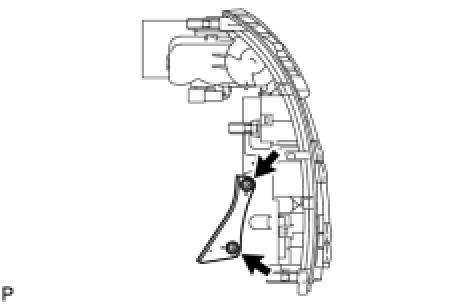

(a) Install the bracket with the 2 bolts.

2. INSTALL NO. 2 RADIO BRACKET

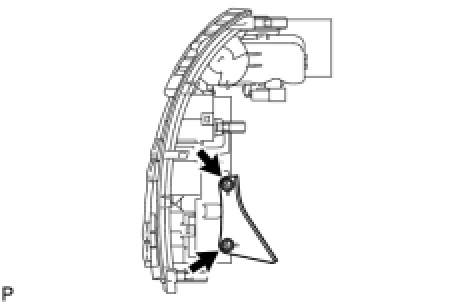

(a) Install the bracket with the 2 bolts.

3. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET





(a) Connect the connectors.

(b) Insert the panel and attach the 6 clips on its backside.

(c) Install the panel with the 2 bolts.





4. INSTALL RADIO RECEIVER ASSEMBLY Installation

5. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

6. INSTALL UPPER REAR CONSOLE PANEL Installation

7. INSTALL NO. 3 BOX PANEL Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation
