Installation

1UR-FSE COOLING: COOLING FAN ECU: INSTALLATION

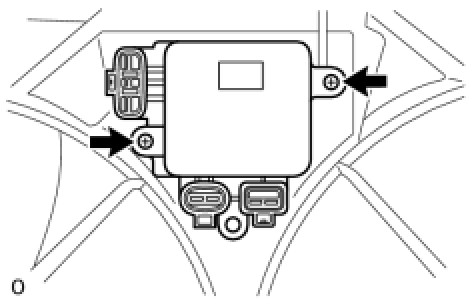

1. INSTALL COOLING FAN ECU

(a) Install the ECU with the 2 screws.





Torque : 2.6 Nm (27 kgf-cm, 23 in-lbf)

(b) Connect the 3 connectors.

2. INSTALL NO. 1 AIR CLEANER INLET Installation

3. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
