Timing Cover

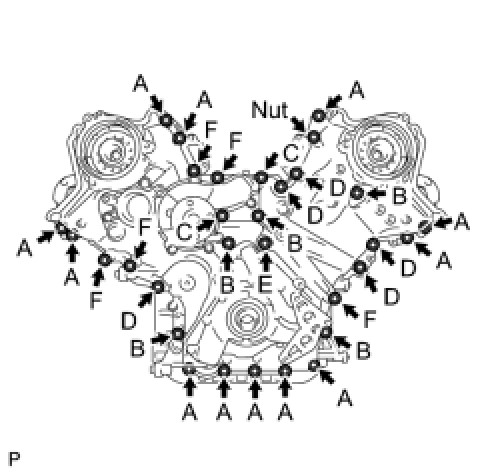

Bolt length

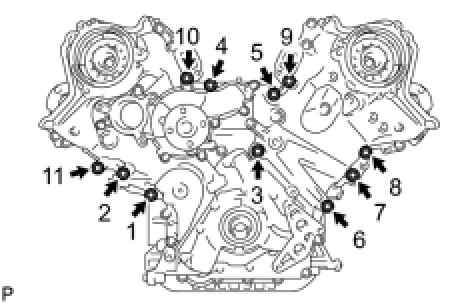

Tighten the 11 bolts in the order shown.






Torque 47 Nm (479 kgf-cm, 35 ft-lbf)

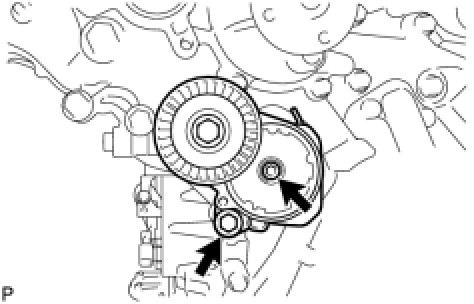

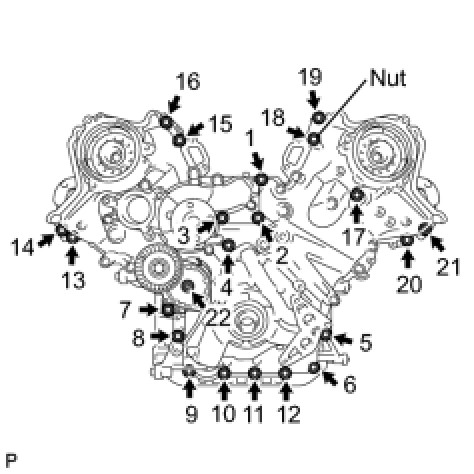

Tighten the Belt tensioner and the 21 bolts and nut in the order shown.










Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
