Removal

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: REMOVAL

1. REMOVE STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)

Removal

2. REMOVE STEERING LOCK ACTUATOR ASSEMBLY

(a) Using a center punch, mark the center of the 2 tapered-head bolts.

(b) Using a 3 to 4 mm (0.12 to 0.16 in.) drill, drill a hole in the 2 bolts.

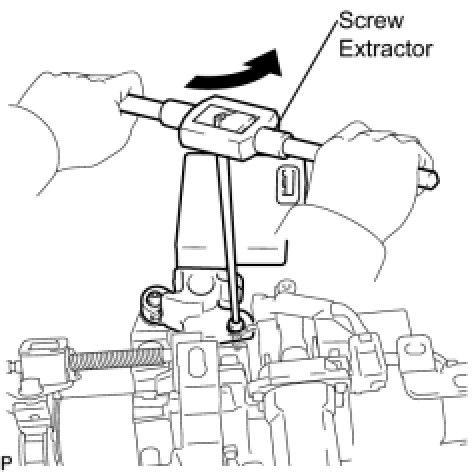

(c) Using a screw extractor, remove the 2 bolts and steering lock actuator assembly from the steering column assembly.





3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

(a) Disconnect the ECU connector.





(b) Using a screwdriver, remove the 2 screws and ECU.
