Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

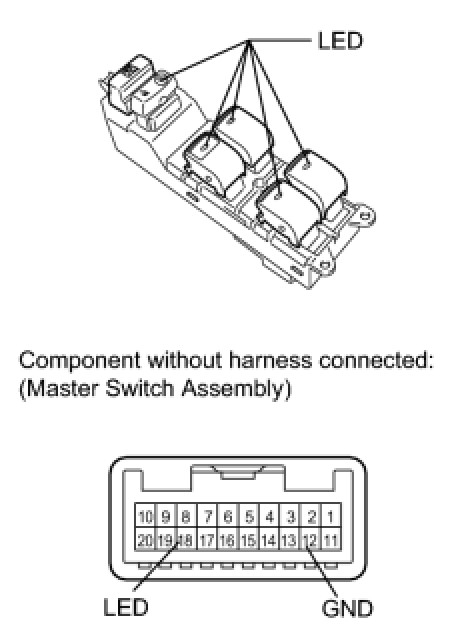

1. INSPECT MASTER SWITCH ASSEMBLY

(a) Check that the LED illuminates.





(b) Apply battery voltage to the master switch and check that the LED illuminates.

OK:





* If the result is not as specified, replace the switch assembly.
