Object Recognition Camera: Components: Illustration

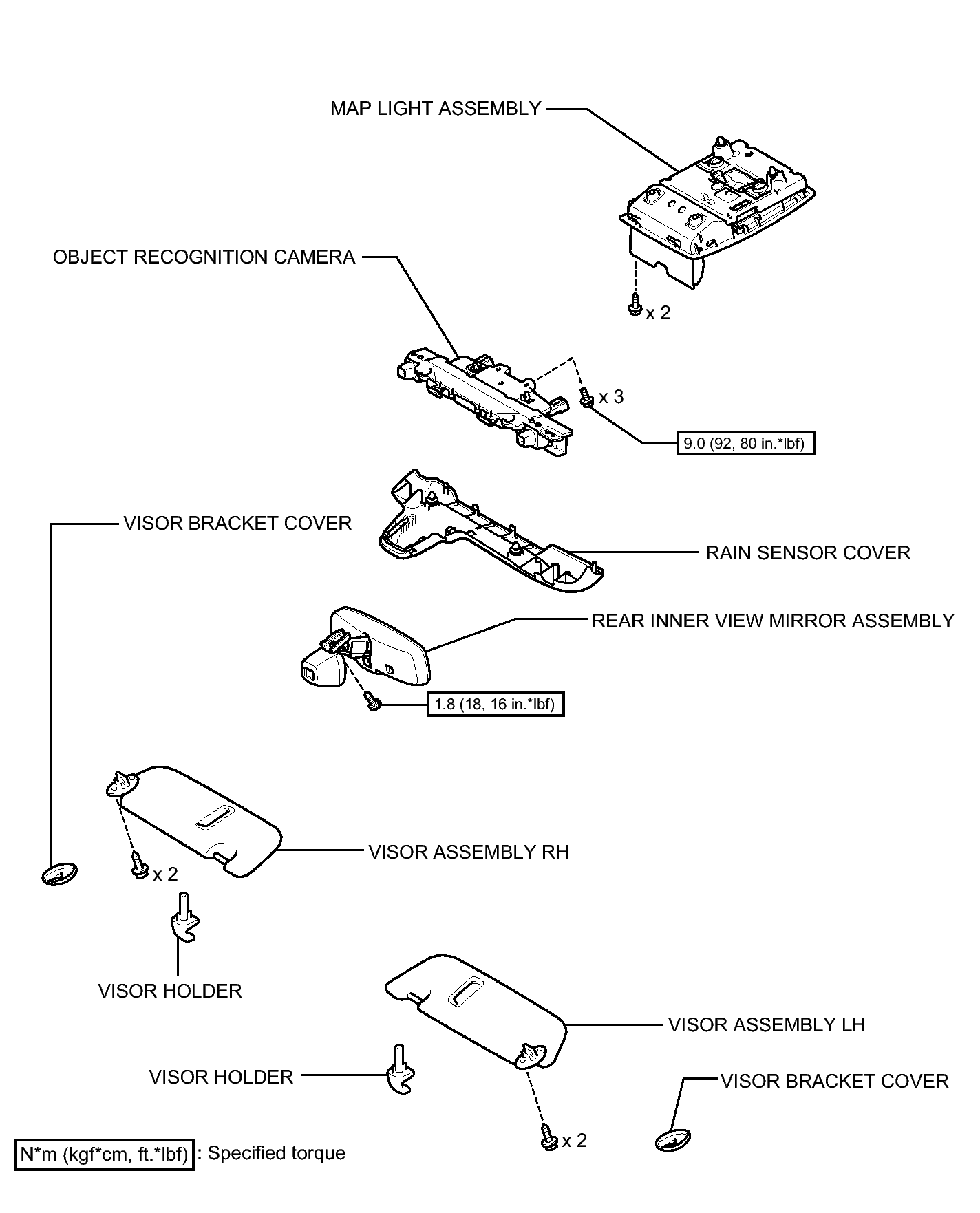

Fig 1: Identifying Object Recognition Camera Replacement Components With Torque Specifications
GTY259601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
