Object Recognition Ecu: Components: Illustration

Fig 1: Identifying Object Recognition ECU Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

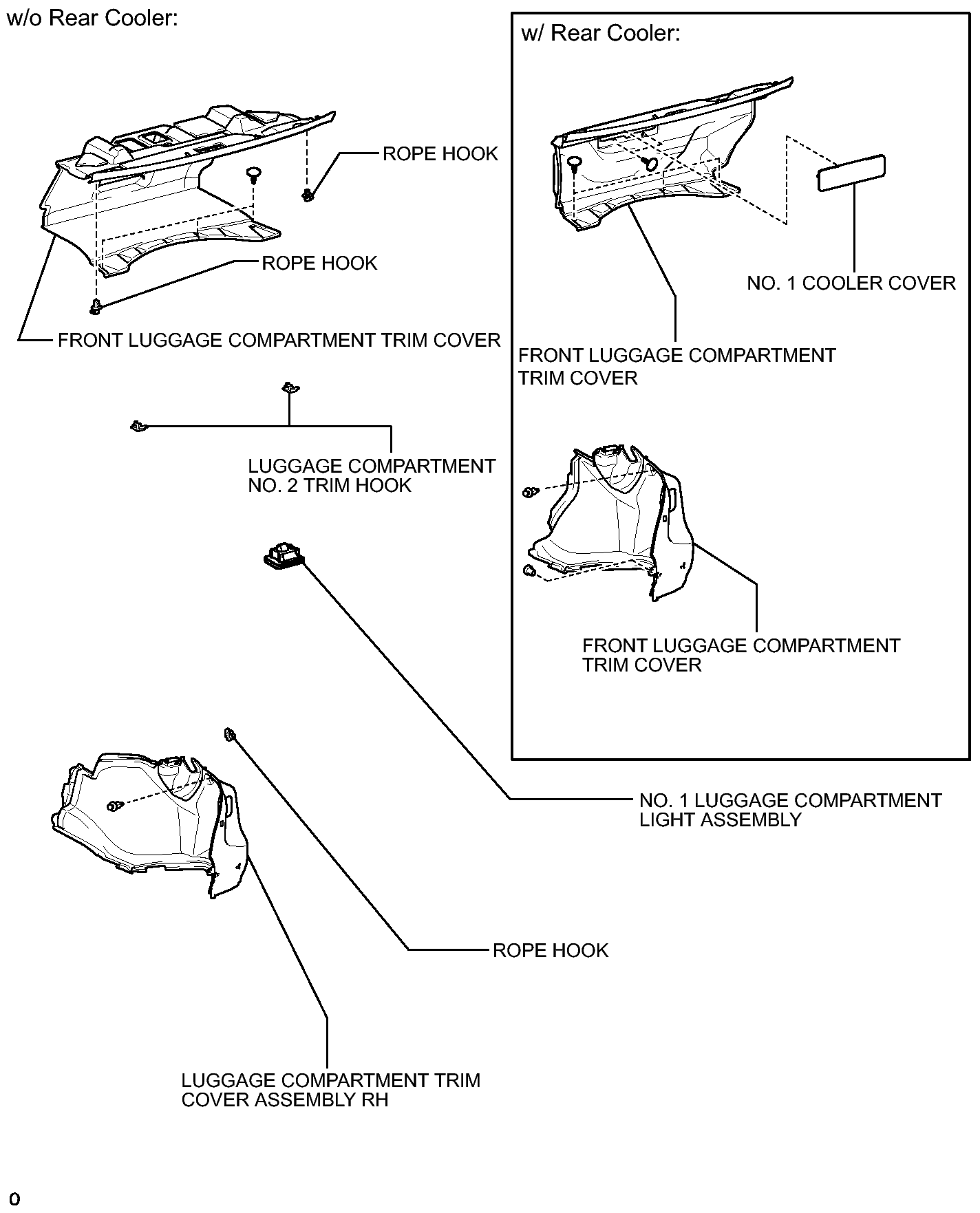

Fig 1: Identifying Object Recognition ECU Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

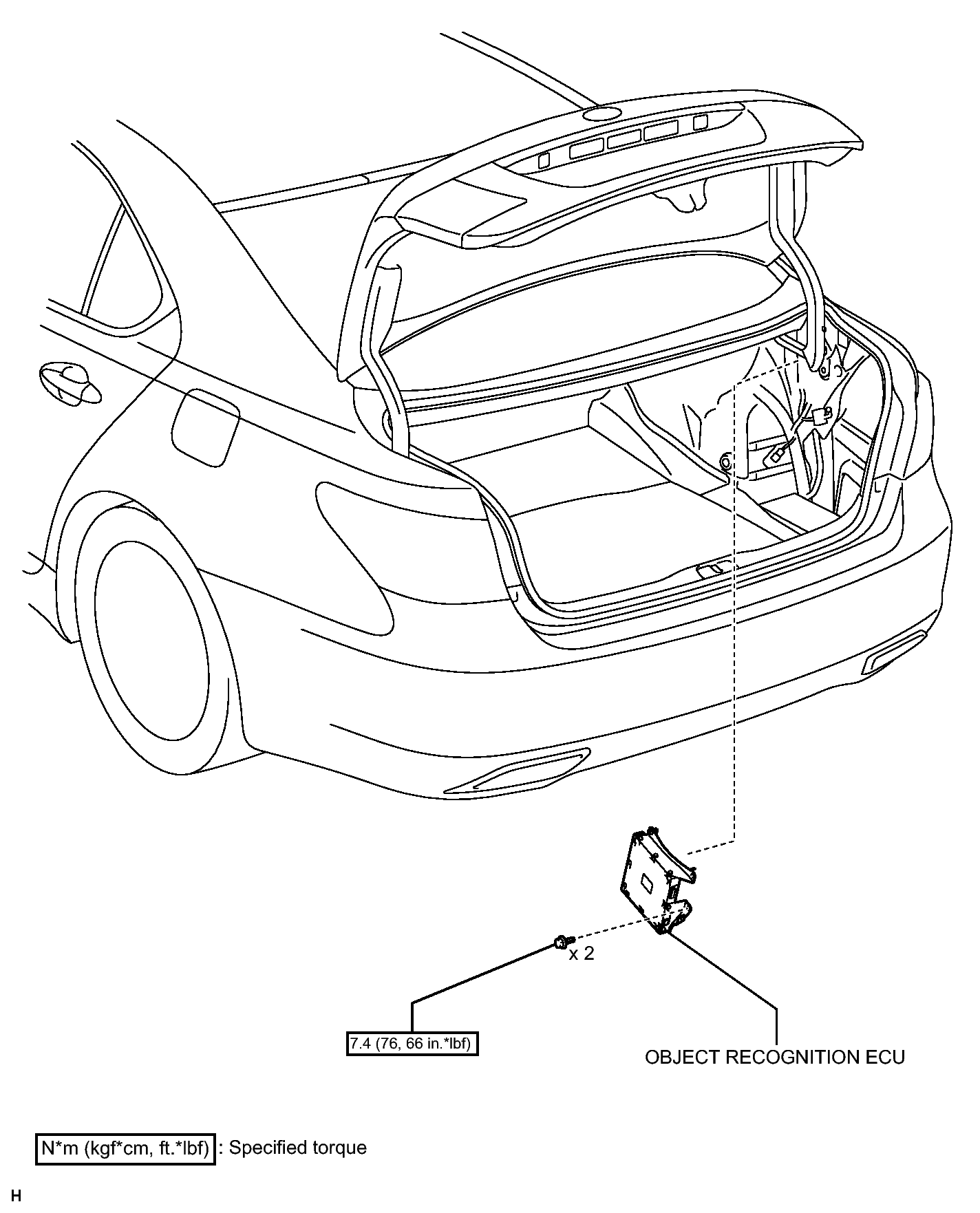

Fig 1: Identifying Object Recognition ECU Replacement Components (3 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
