System Diagram

  1. MOST NETWORK COMMUNICATION LINE

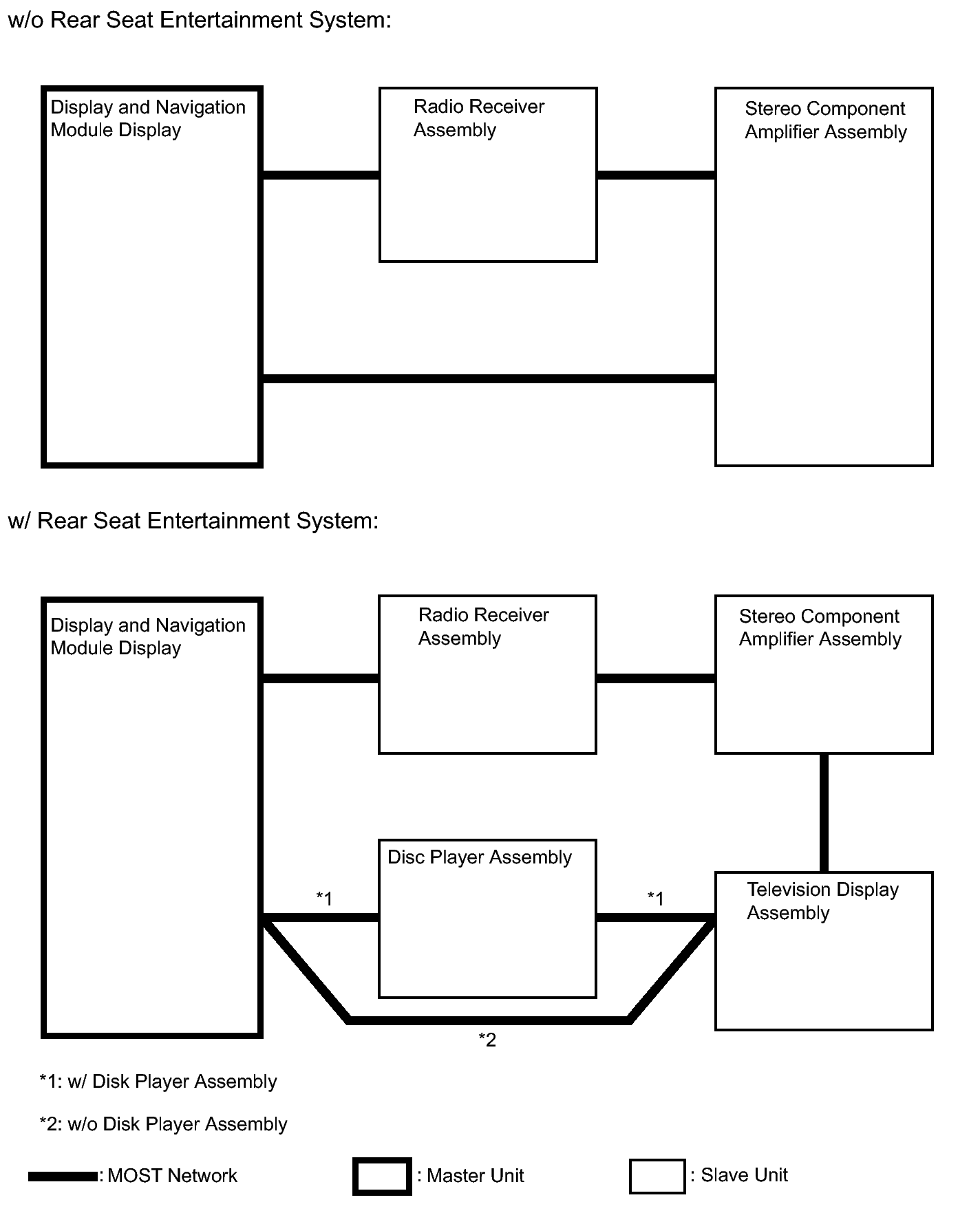

    Fig 1: MOST Network Communication Line - System Diagram
    GTY274649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AVC-LAN COMMUNICATION LINE

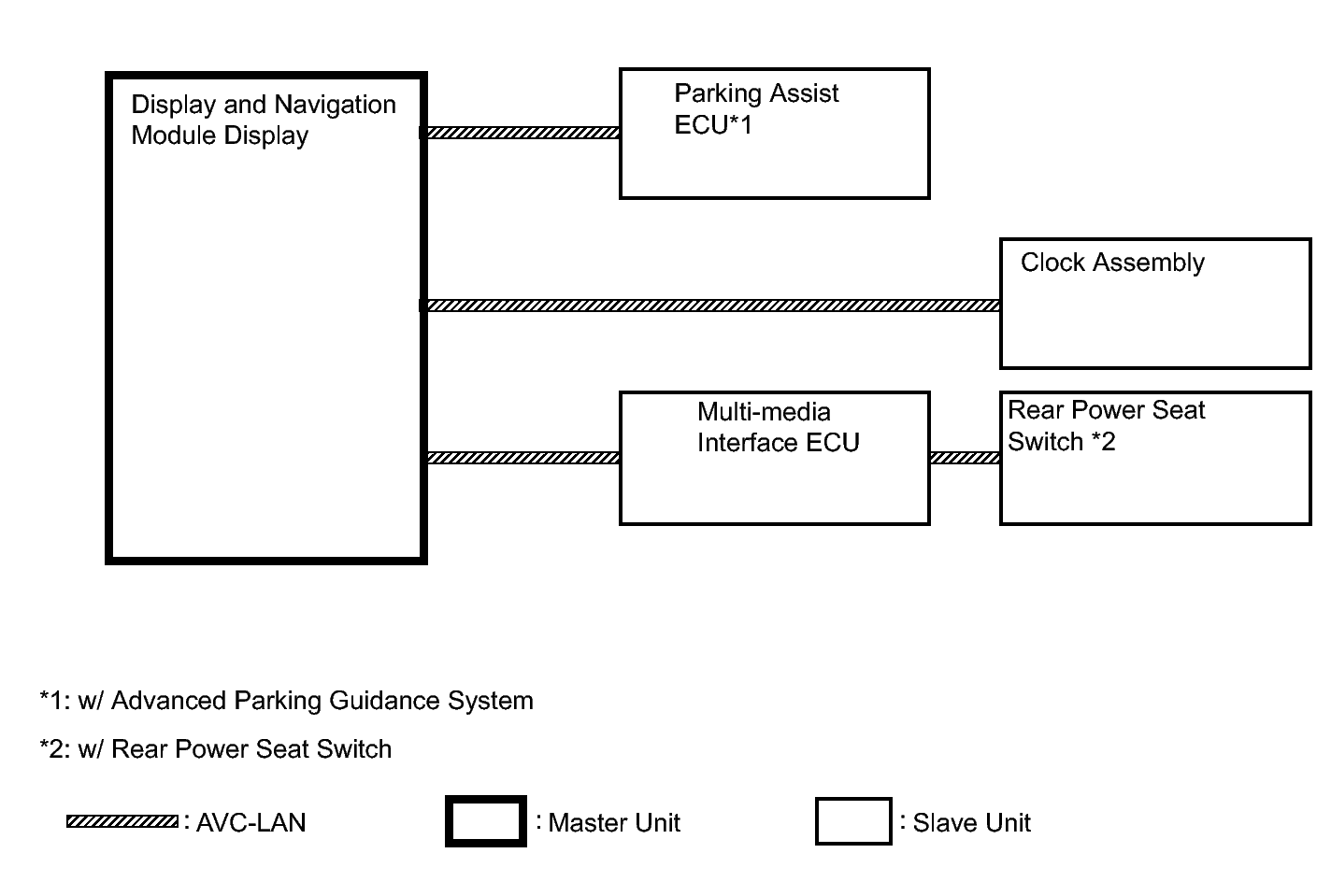

    Fig 2: Identifying AVC-LAN Communication Line - System Diagram
    GTY256394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. OTHER (w/ Navigation System [for DVD])
    1. w/ Rear Seat Entertainment System

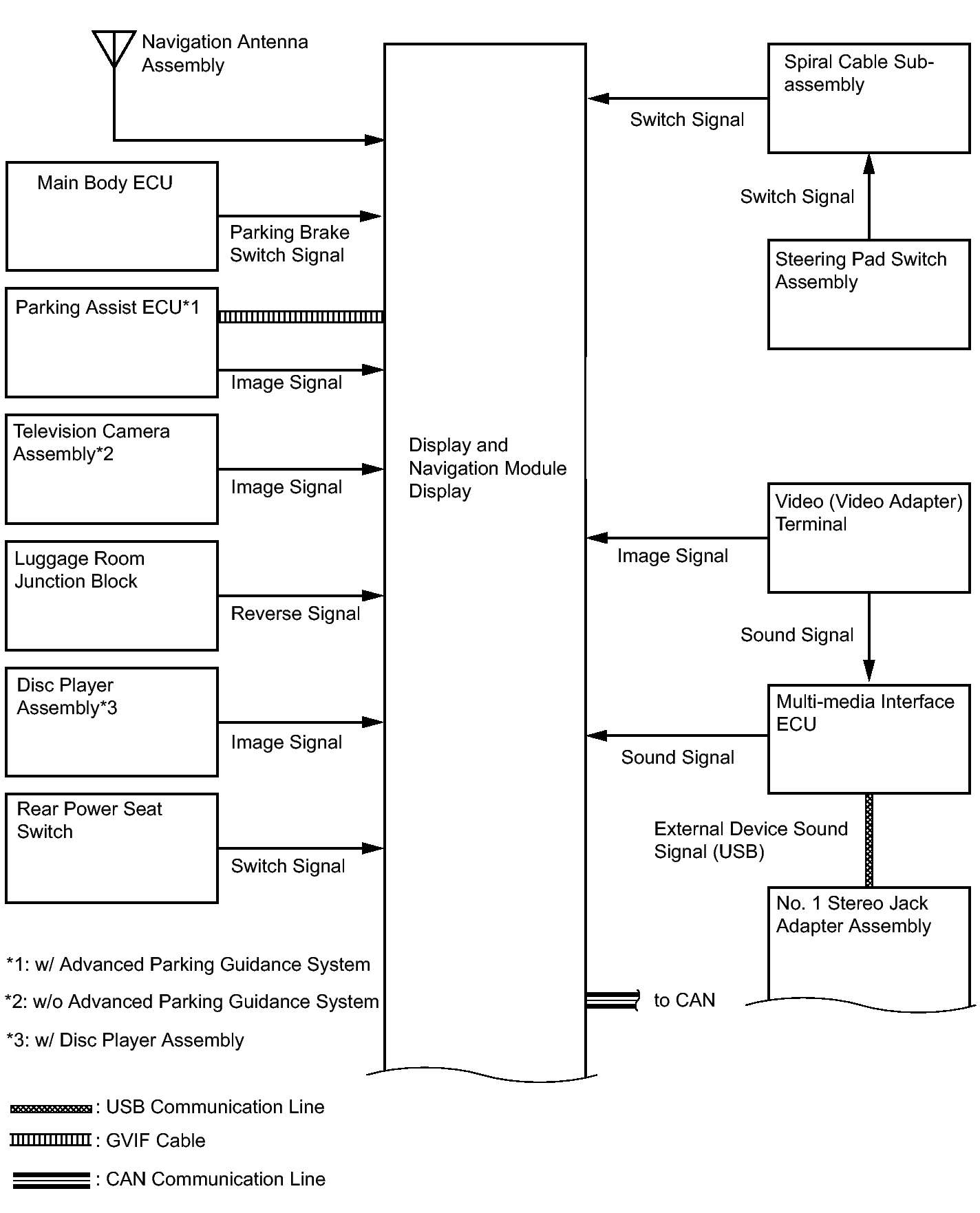

      Fig 3: Identifying Navigation System [for HDD] - w/ Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY263525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

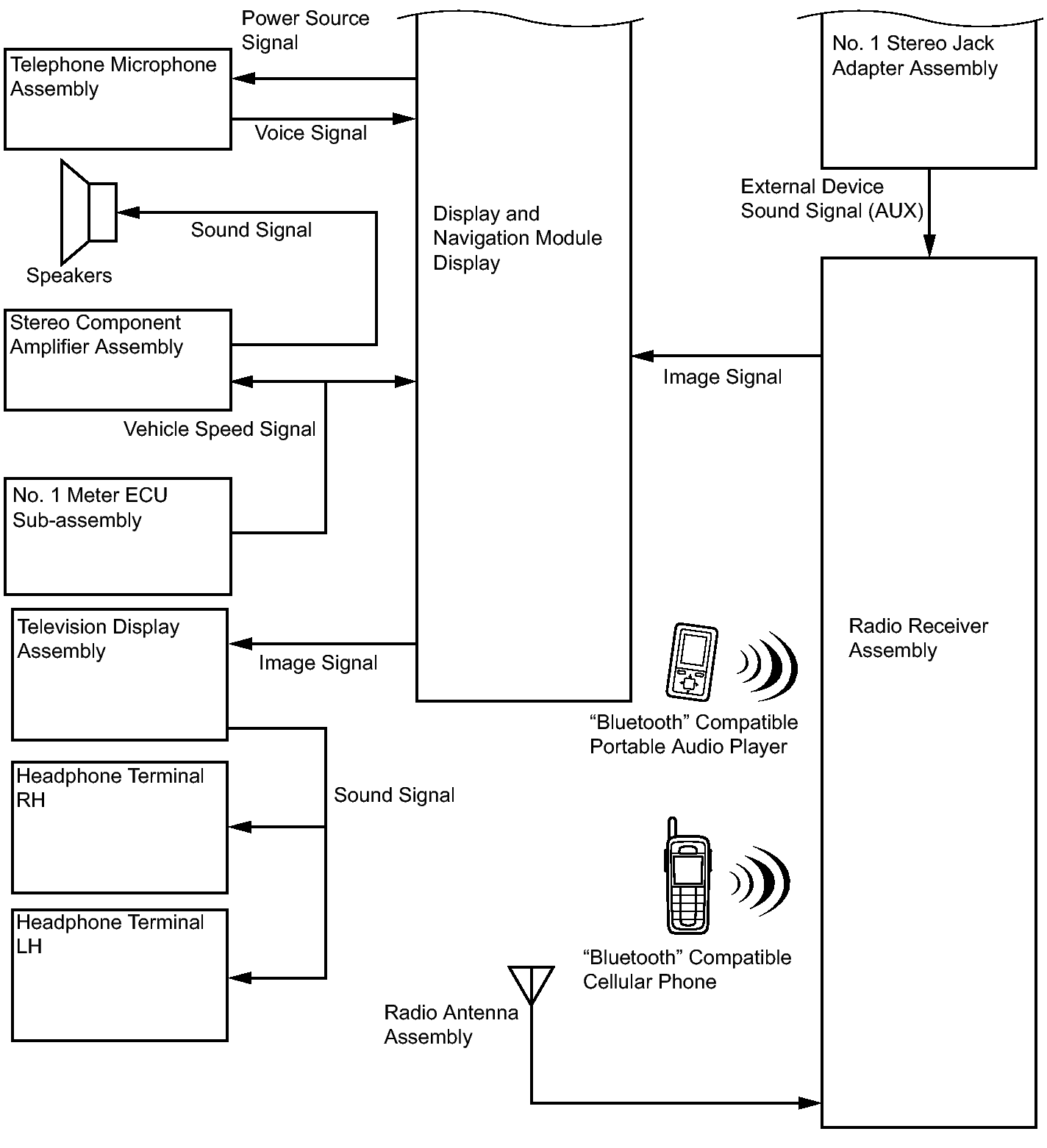

      Fig 4: Identifying Navigation System [for DVD] - w/ Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY258091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear Seat Entertainment System

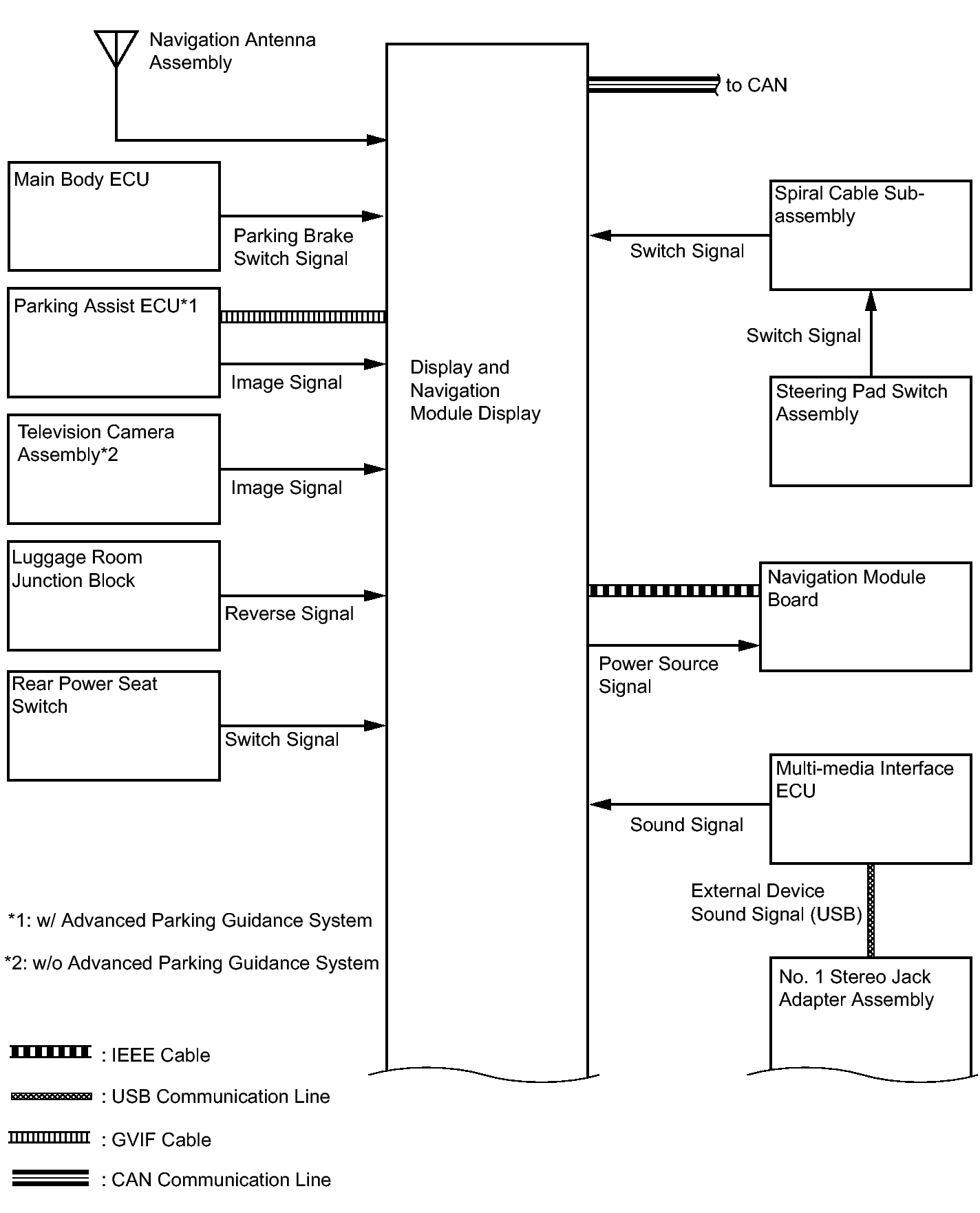

      Fig 5: Identifying Navigation System [for DVD] - w/o Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY257846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

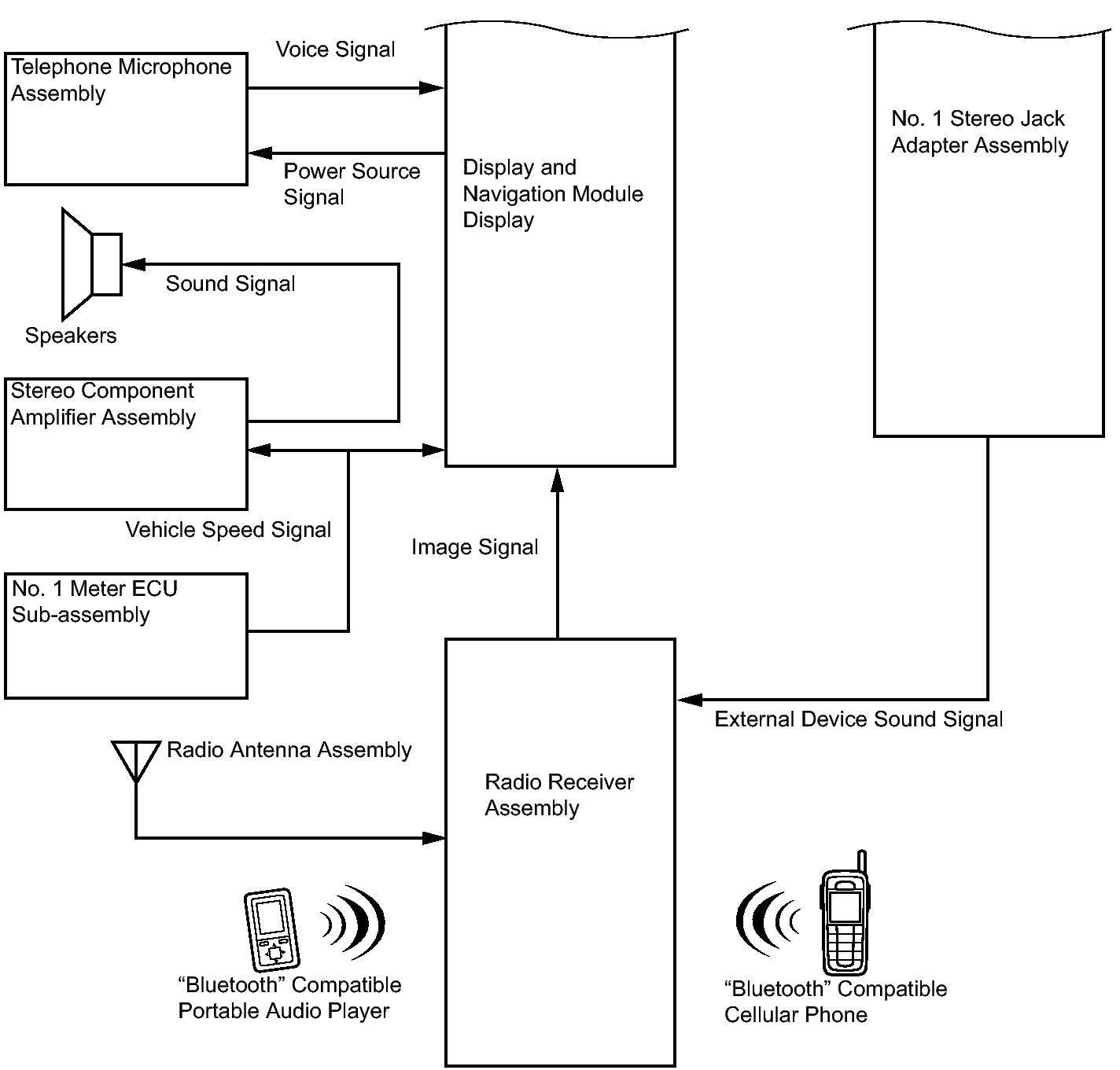

      Fig 6: Identifying Navigation System [for DVD] - w/o Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY281323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. OTHER (w/ Navigation System [for HDD])
    1. w/ Rear Seat Entertainment System
      Fig 7: Identifying Navigation System [for HDD] - w/ Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY263525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 8: Identifying Navigation System [for HDD] - w/ Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY266351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear Seat Entertainment System

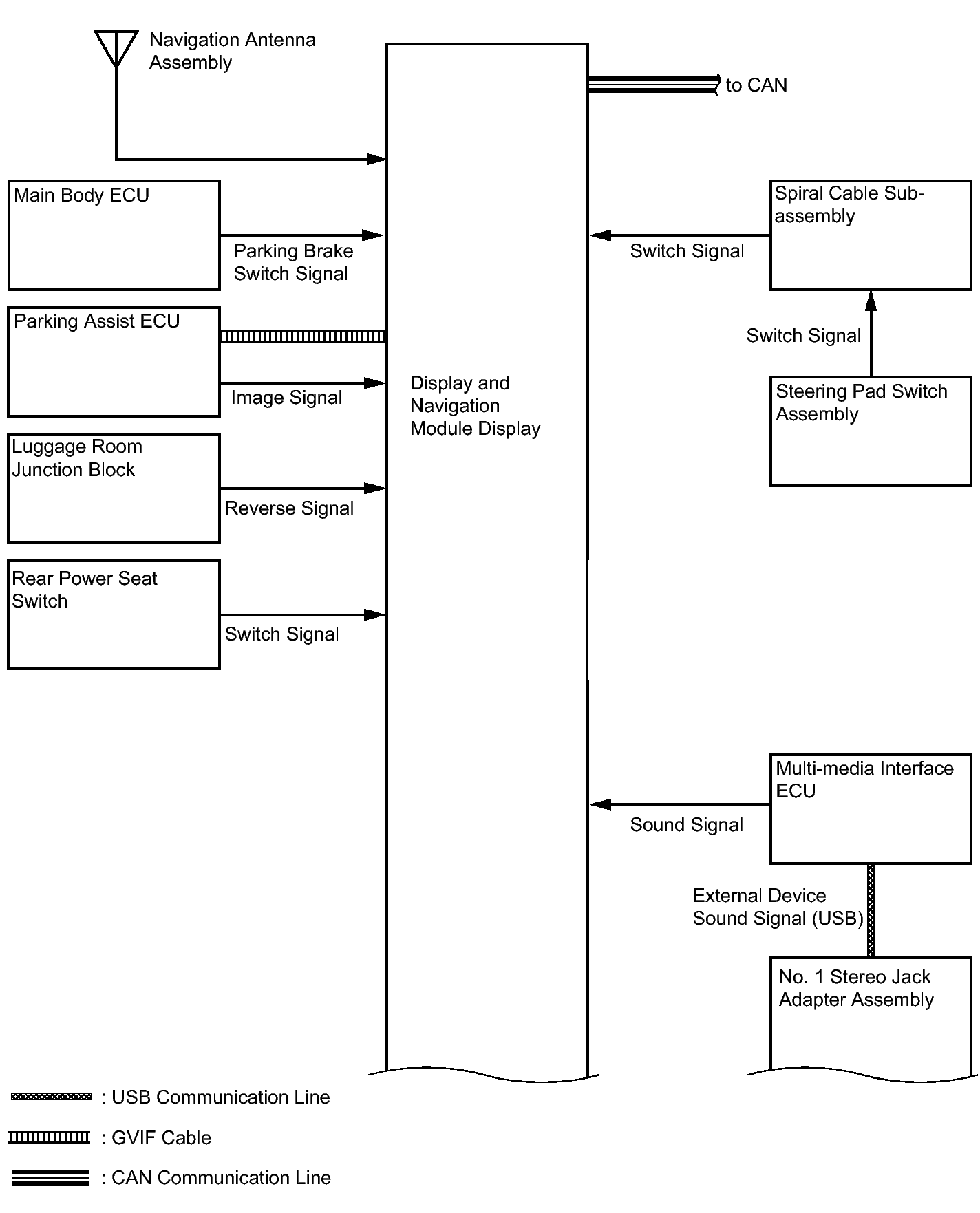

      Fig 9: Identifying Navigation System [for HDD] - w/o Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY273313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 10: Identifying Navigation System [for HDD] - w/o Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY271371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. OTHER (w/o Navigation System)
    1. w/ Rear Seat Entertainment System

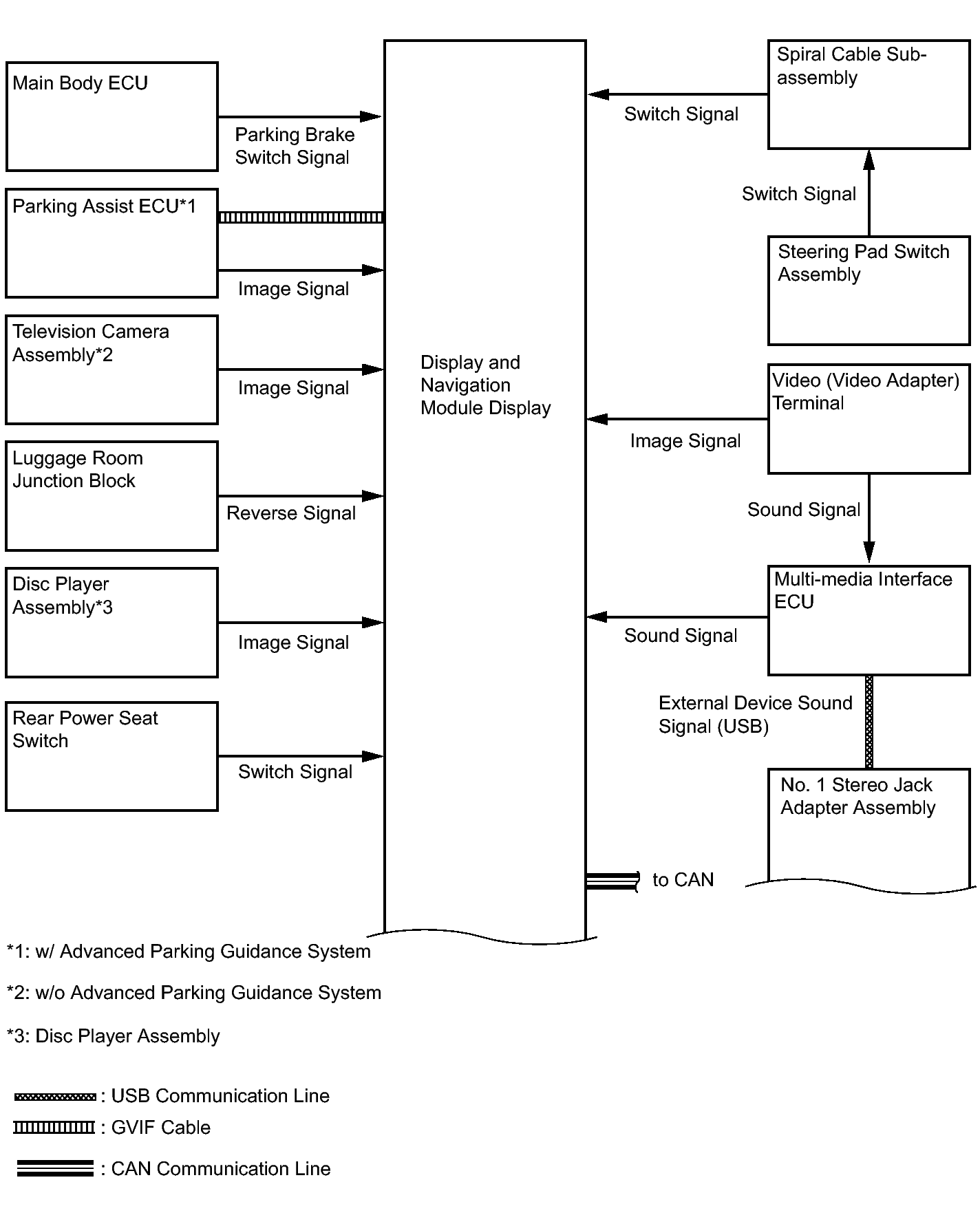

      Fig 11: Identifying w/o Navigation System - w/ Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY280183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

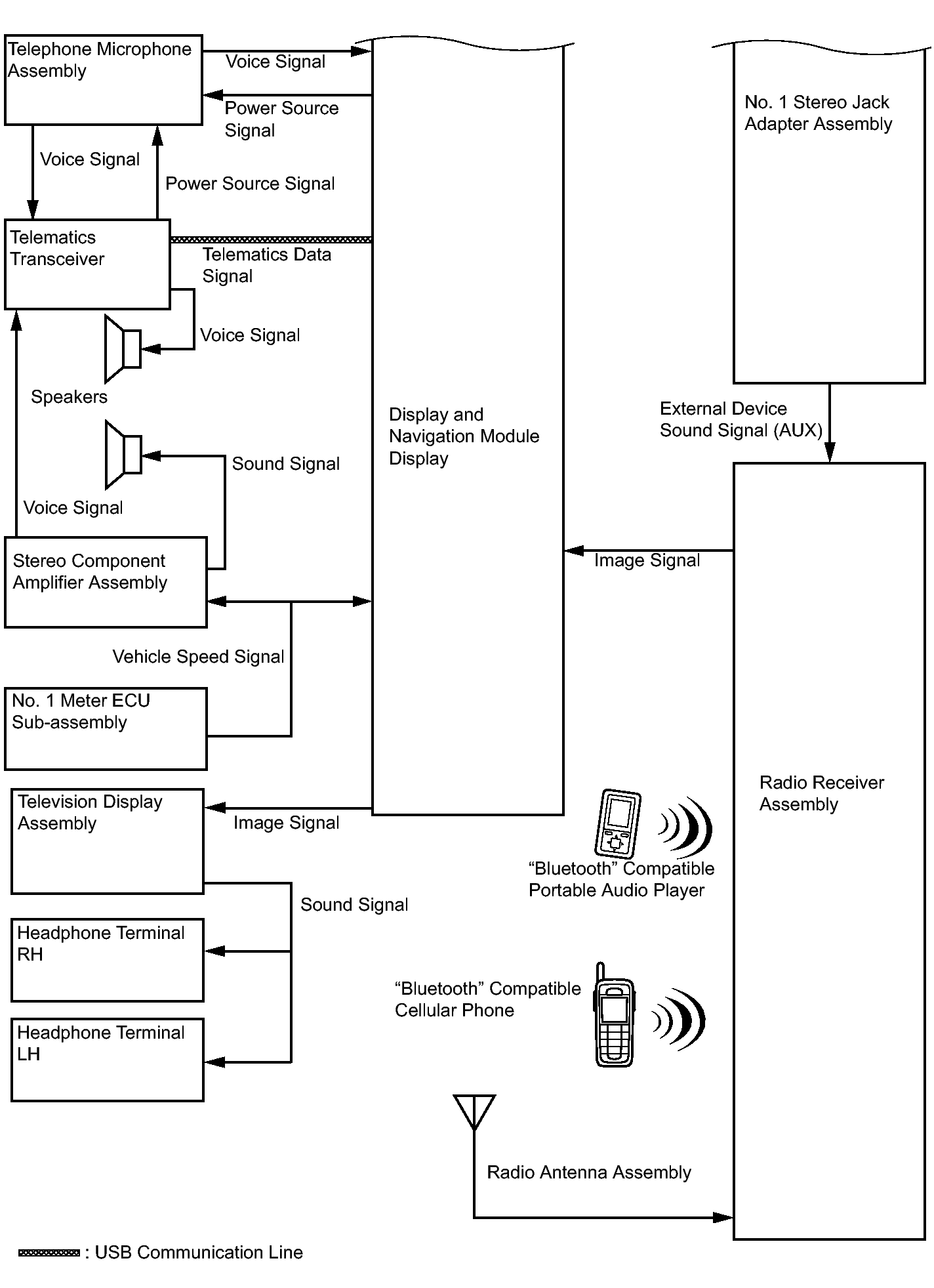

      Fig 12: Identifying w/o Navigation System - w/ Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY266351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Rear Seat Entertainment System

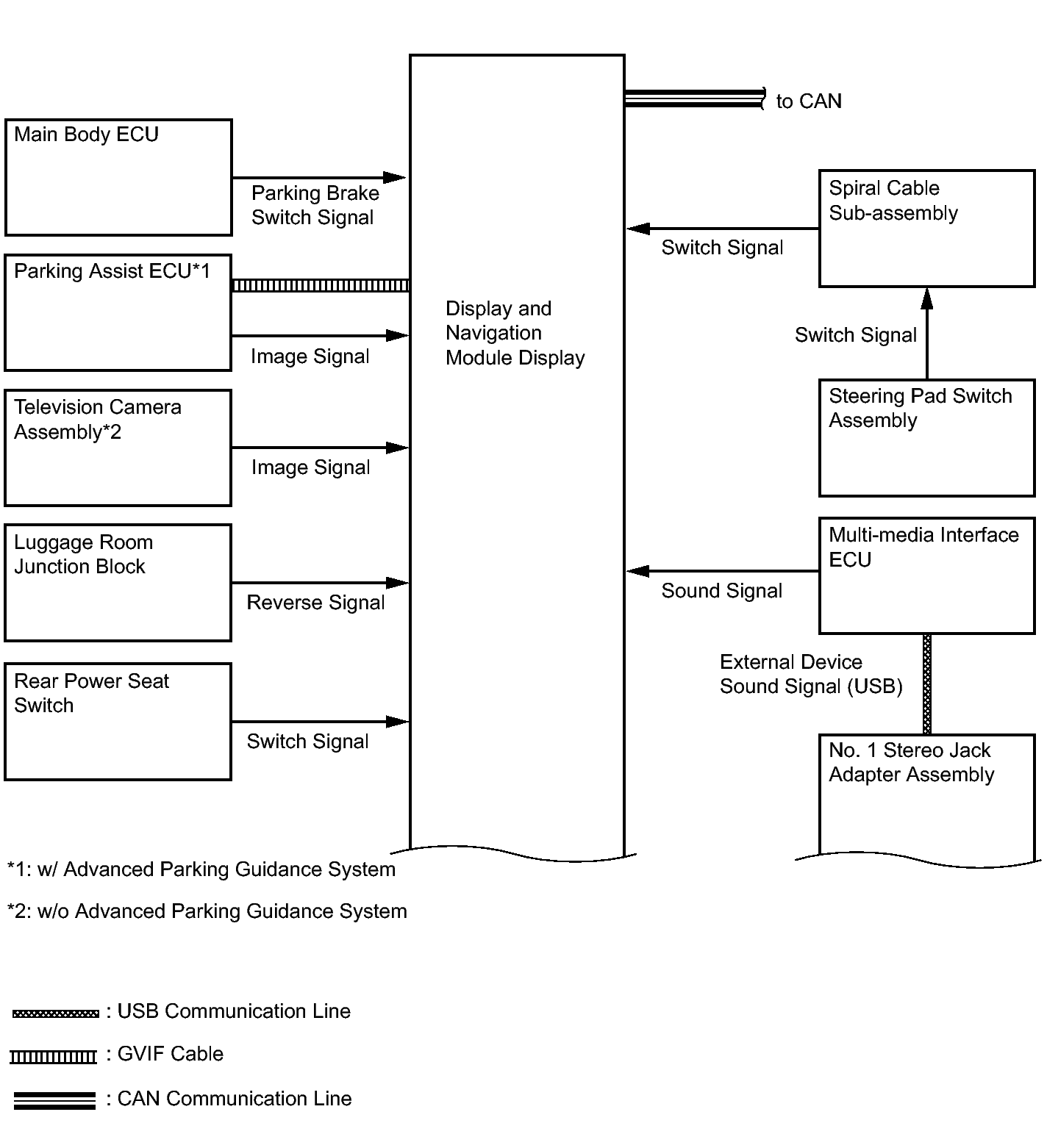

      Fig 13: Identifying w/o Navigation System - w/o Rear Seat Entertainment - System Diagram (1 Of 2)
      GTY284828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

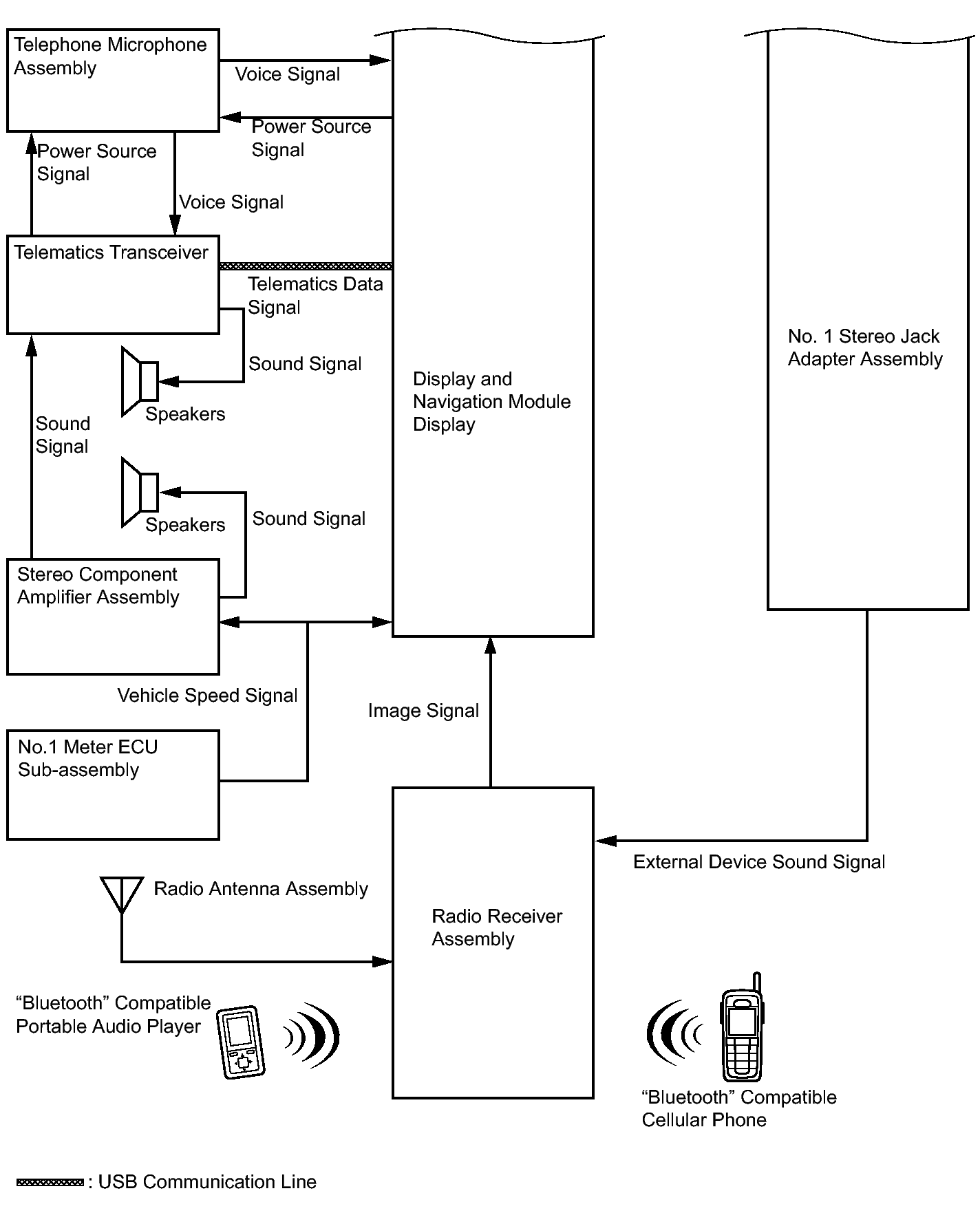

      Fig 14: Identifying w/o Navigation System - w/o Rear Seat Entertainment - System Diagram (2 Of 2)
      GTY271371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
