Power Trunk Opener and Closer: Notes

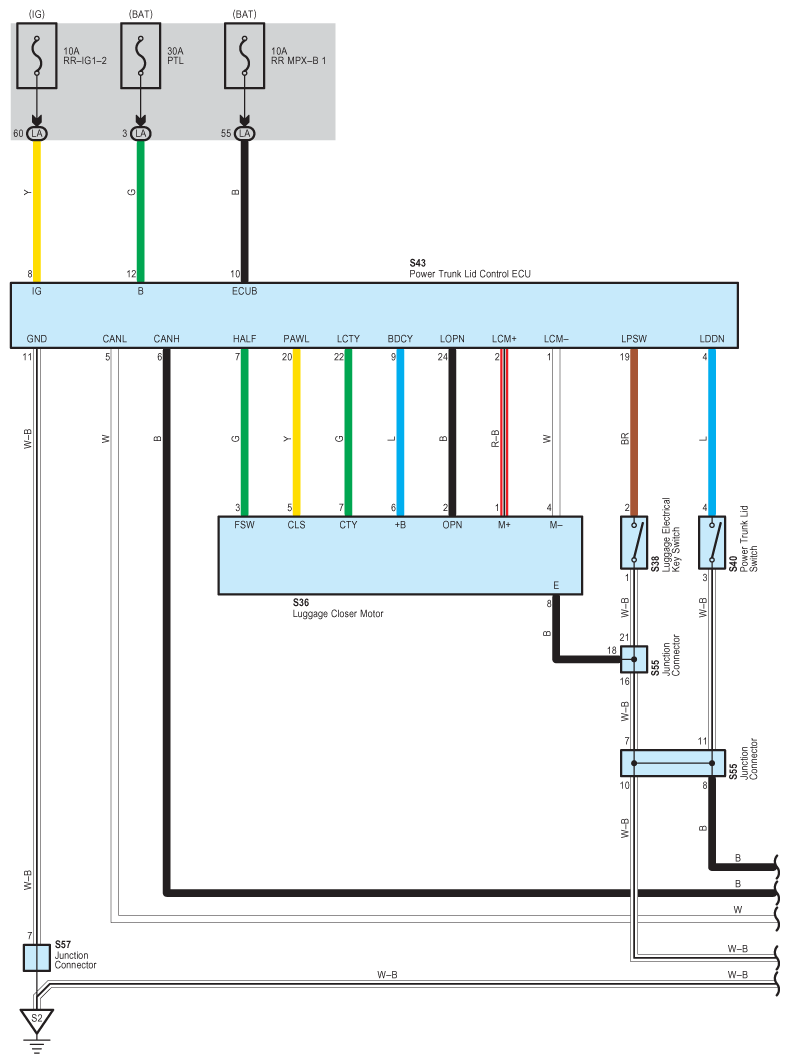

Fig 1: Power Trunk Opener And Closer - Wiring Diagram (1 Of 5)
G08940870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

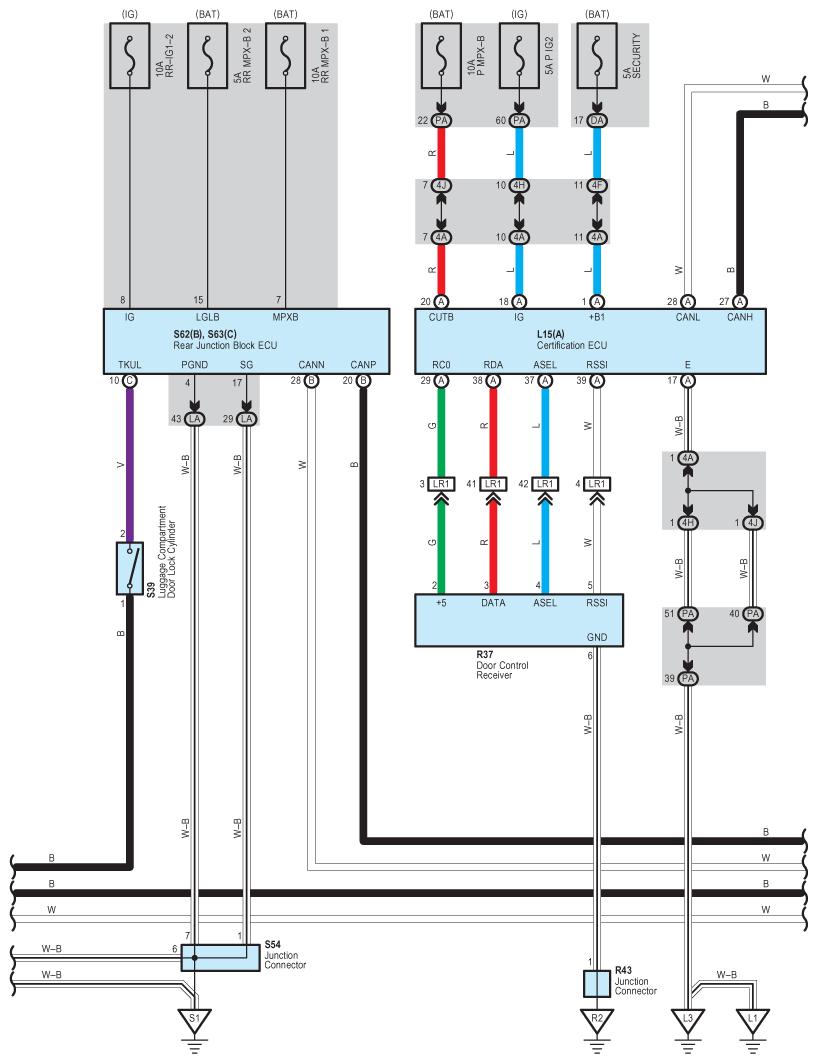

Fig 2: Power Trunk Opener And Closer - Wiring Diagram (2 Of 5)
G08940871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

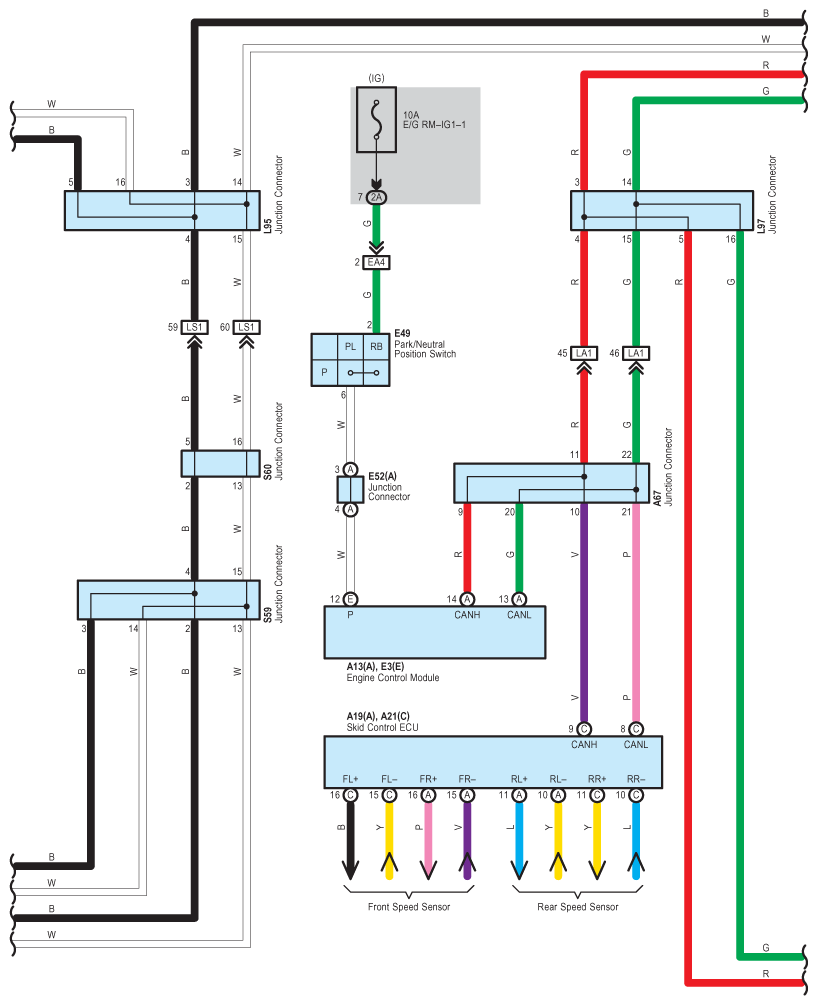

Fig 3: Power Trunk Opener And Closer - Wiring Diagram (3 Of 5)
G08940872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

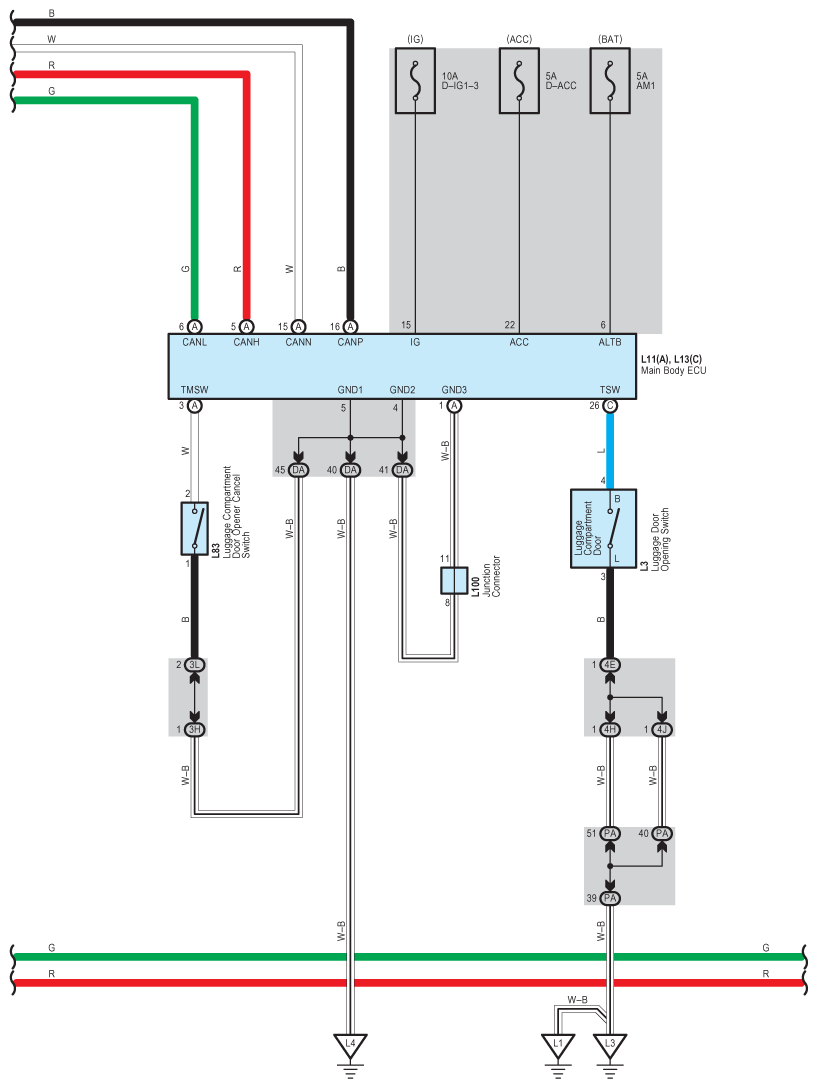

Fig 4: Power Trunk Opener And Closer - Wiring Diagram (4 Of 5)
G08940873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

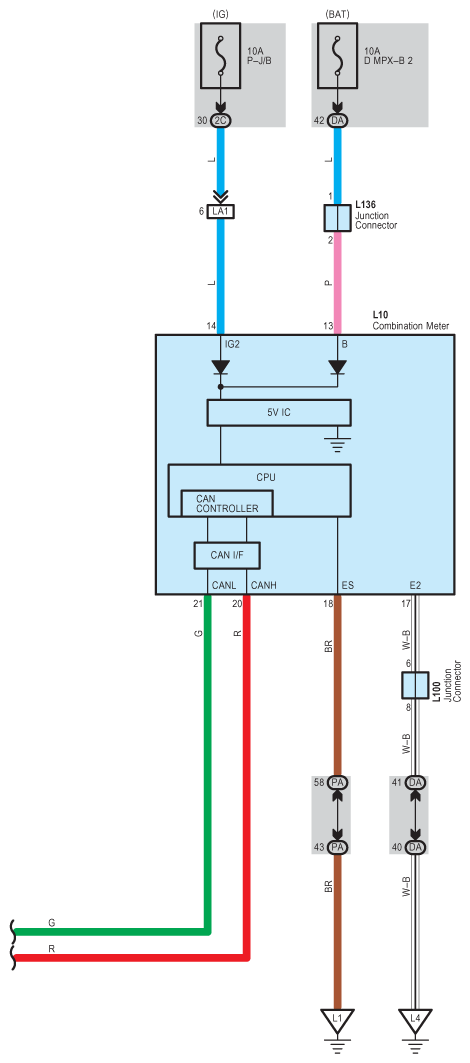

Fig 5: Power Trunk Opener And Closer - Wiring Diagram (5 Of 5)
G08940874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
