DTC B2271: Ignition Hold Monitor Malfunction: Procedure

1. Clear the DTCs. Refer to DTC CHECK/CLEAR .
2. Start the engine.
3. Allow the engine to idle for 1 minute or more.
4. Read DTCs.

   Result

   Display (DTC output)	Proceed to
   B2271	A
   No DTC output	B

B → END (SYSTEM IS OK)

A: Go to next step

1. Remove the AM2 fuse from the passenger side junction block.
2. Measure the resistance of the fuse.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   AM2 fuse	Always	Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

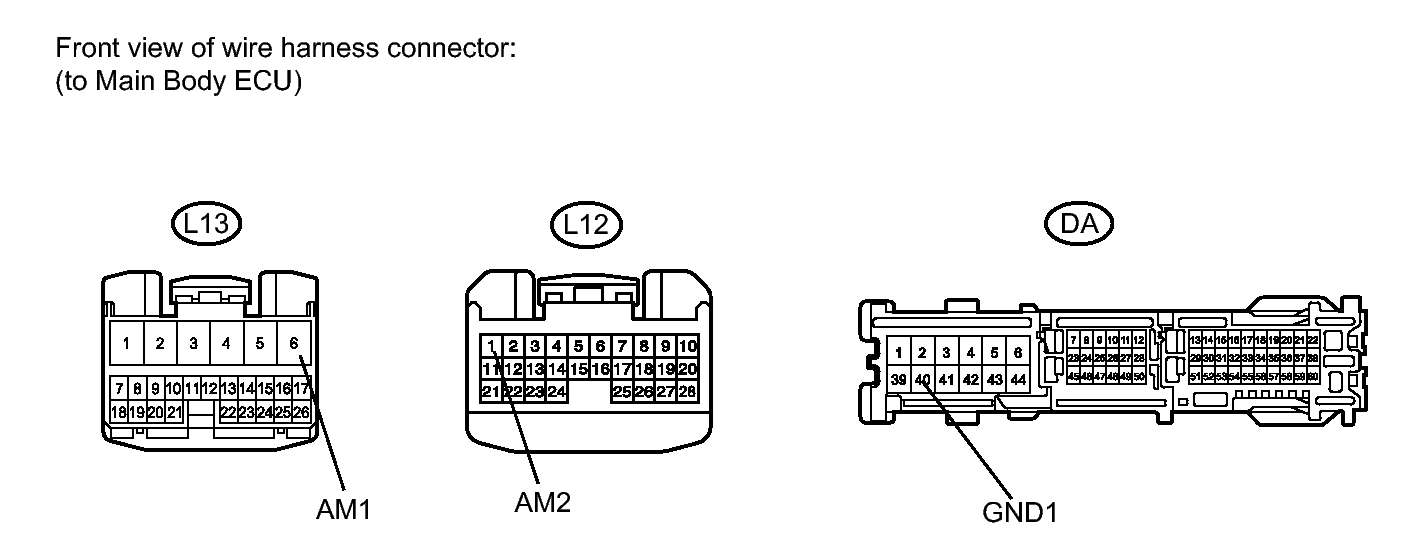

Fig 1: Identifying Connector Terminals Of Main Body ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L12, L13 and DA main body ECU connectors.
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   L13-6 (AM1) - Body ground	Always	11 to 14 V
   L12-1 (AM2) - Body ground	Always	11 to 14 V

   Standard resistance

   Tester Connection	Condition	Specified Condition
   DA-40 (GND1) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU
