DTC B2278: Engine Switch Circuit Malfunction: Wiring Diagram

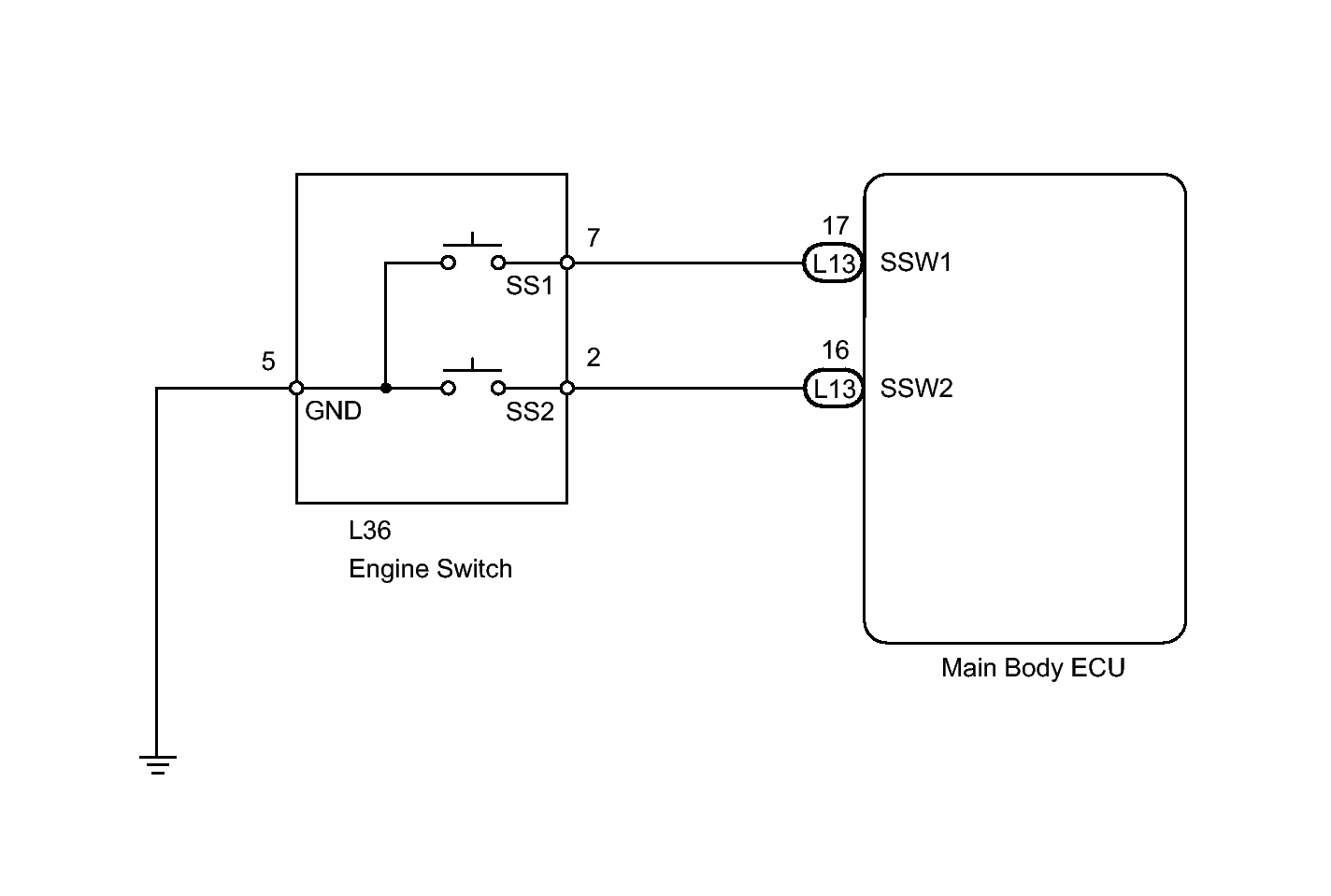

Fig 1: Engine Switch Circuit - Wiring Diagram
GTY282204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
