DTC B2285, B2288: Steering Lock Position Signal Circuit Malfunction; Steering Lock Signal Circuit Malfunction: Wiring Diagram

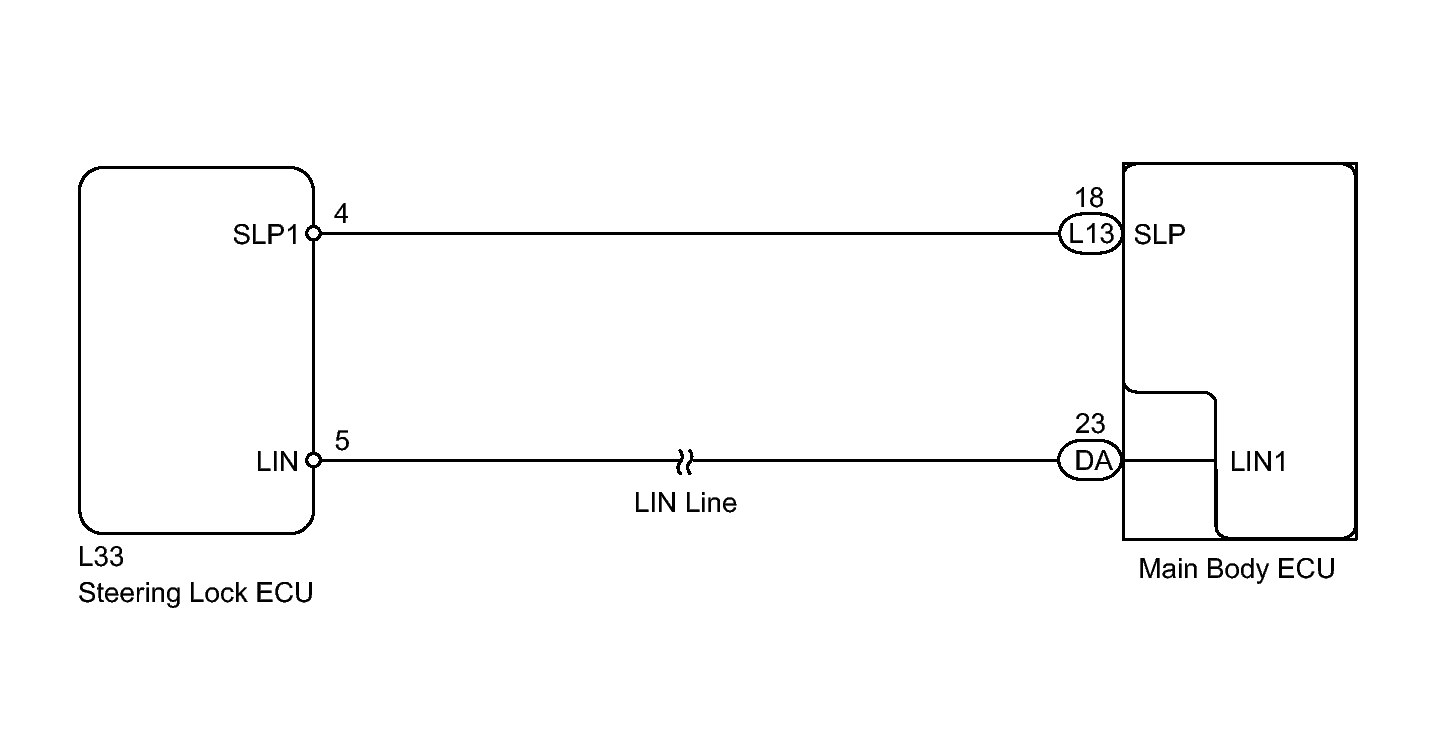

Fig 1: Steering Lock ECU And Main Body ECU - Wiring Diagram
GTY263298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
