Engine Switch Indicator Circuit: Wiring Diagram

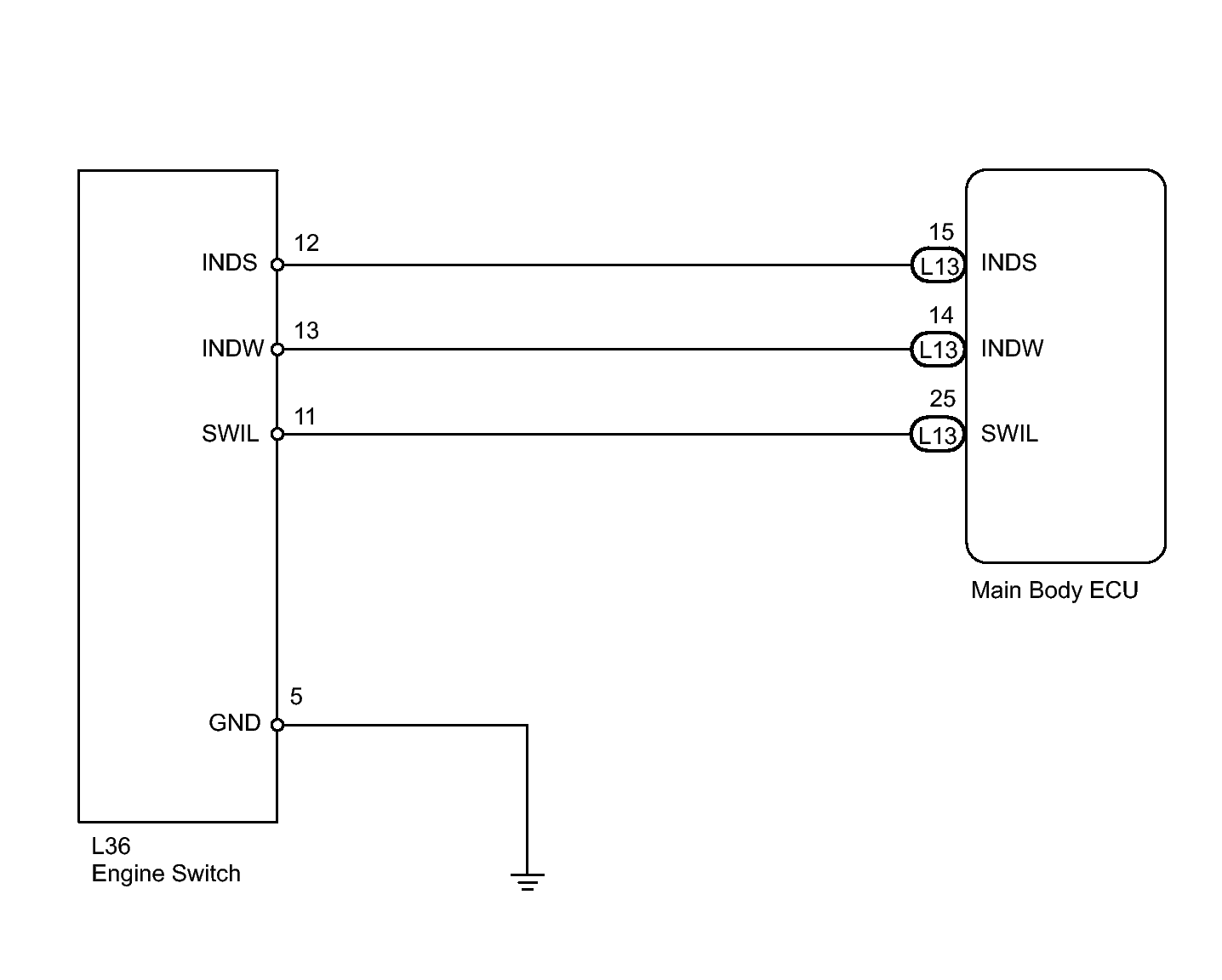

Fig 1: Engine Switch And Main Body ECU - Wiring Diagram
GTY288187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
