Child Restraint Seat Tether Anchor: Components: Illustration

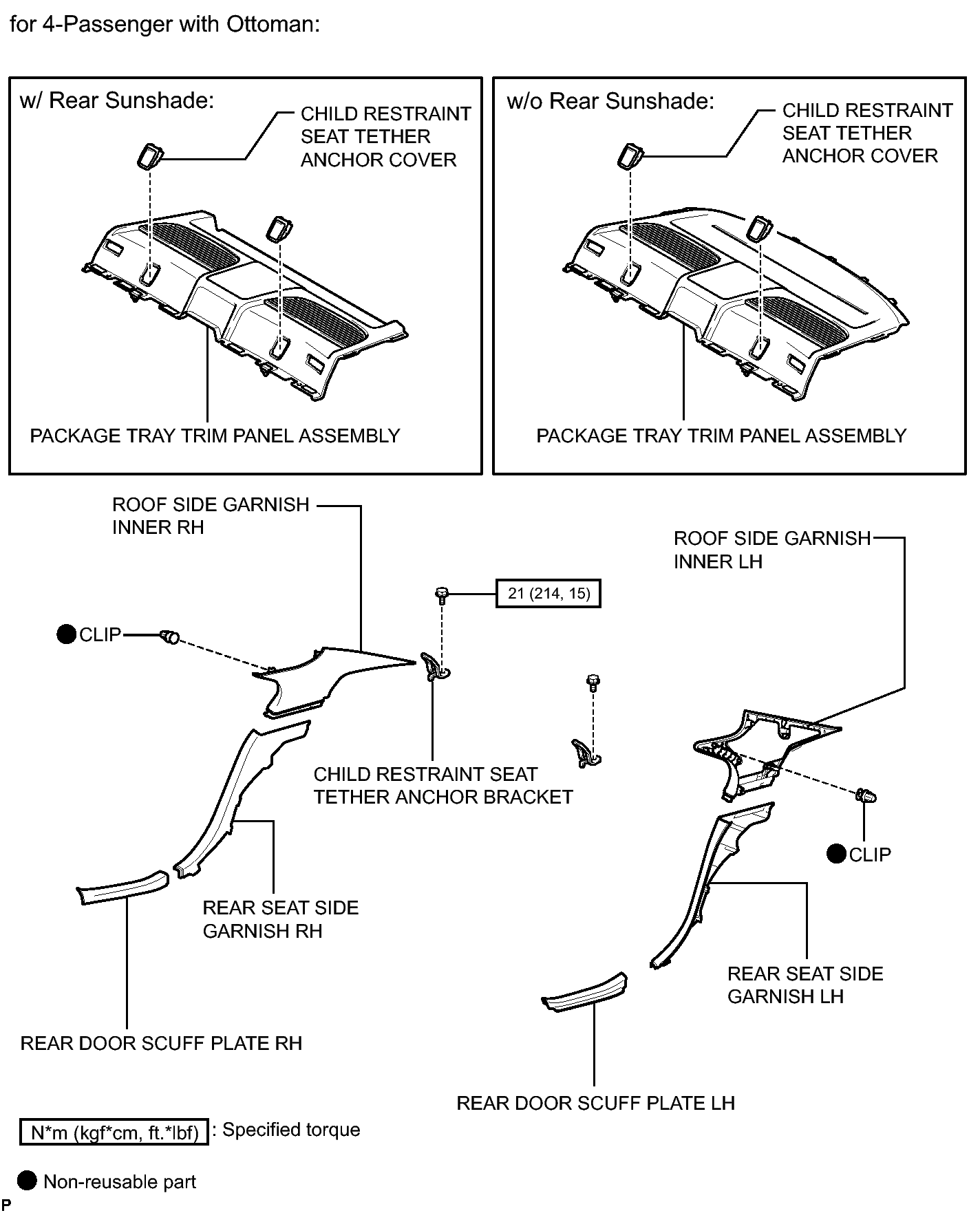

Fig 1: Identifying Child Restraint Seat Tether Anchor Replacement Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

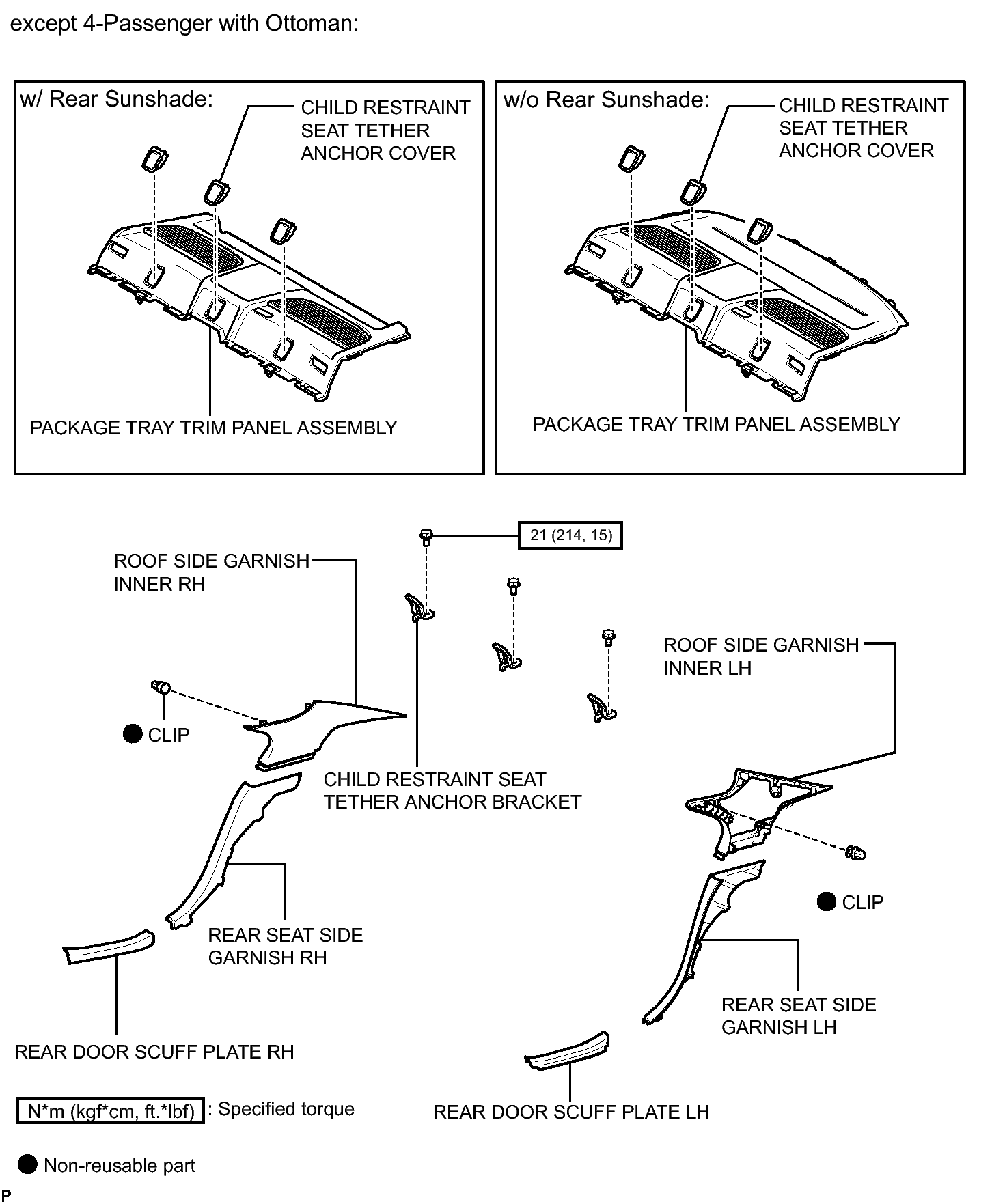

Fig 1: Identifying Child Restraint Seat Tether Anchor Replacement Components (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
