Object Recognition Camera: Installation: Installation

  1. INSTALL OBJECT RECOGNITION CAMERA

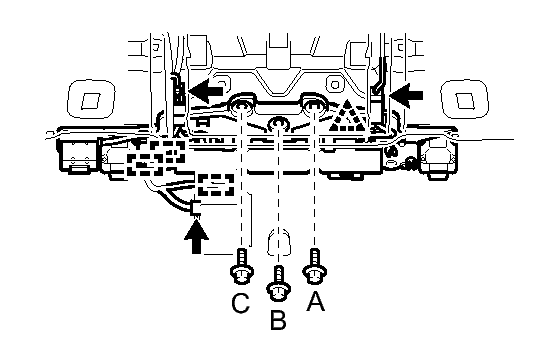

    Fig 1: Identifying Object Recognition Camera, Harness Connectors, And Fasteners
    GTY268035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the object recognition camera with the clip.
    2. Tighten the 3 bolts in alphabetical order.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    3. Attach the 3 wire harness clamps.
    4. Connect the 3 connectors.
  2. INSTALL REAR INNER VIEW MIRROR ASSEMBLY  . Refer to INSTALLATION - Step 1
  3. INSTALL RAIN SENSOR COVER  . Refer to INSTALLATION - Step 3
  4. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 10
  5. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 11
  6. INSTALL VISOR ASSEMBLY RH  . Refer to INSTALLATION - Step 12
  7. INSTALL VISOR BRACKET COVER  . Refer to INSTALLATION - Step 13
  8. INSTALL MAP LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 20
  9. ADJUST OBJECT RECOGNITION CAMERA  See step  1
