Door Control Switch: Inspection: Inspection

  1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

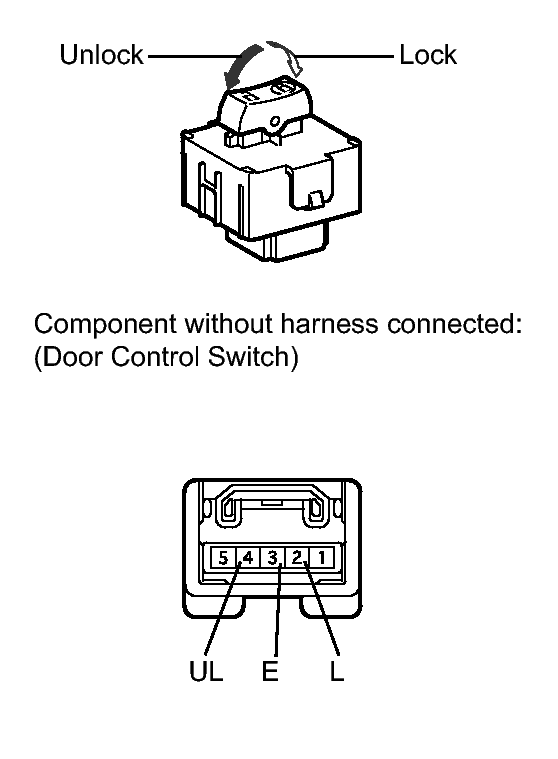

      Fig 1: Identifying Door Control Switch Functions & Connector Terminals
      GTY116755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      2 (L) - 3 (E) Lock Below 1 Ω
      2 (L) - 3 (E)
      4 (UL) - 3 (E)      		 OFF 10 kΩ or higher
      4 (UL) - 3 (E) Unlock Below 1 Ω
      • If the result is not as specified, replace the control switch.
    2. When terminal 5 (ILL+) of the connector is connected to the positive (+) battery terminal and terminal 3 (E) is connected to the negative (-) battery terminal, check that the indicator (LED) illuminates.

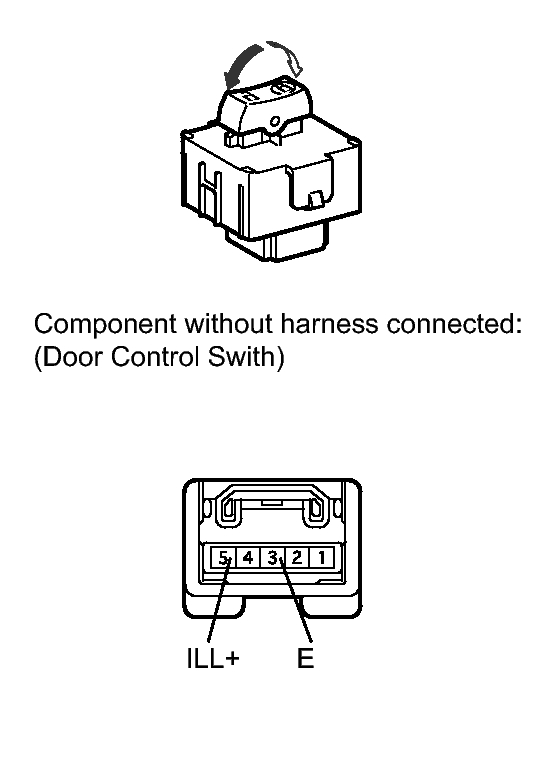

      Fig 2: Identifying Door Control Switch Connector Terminals
      GTY256586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
