Automatic Light Control Sensor: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

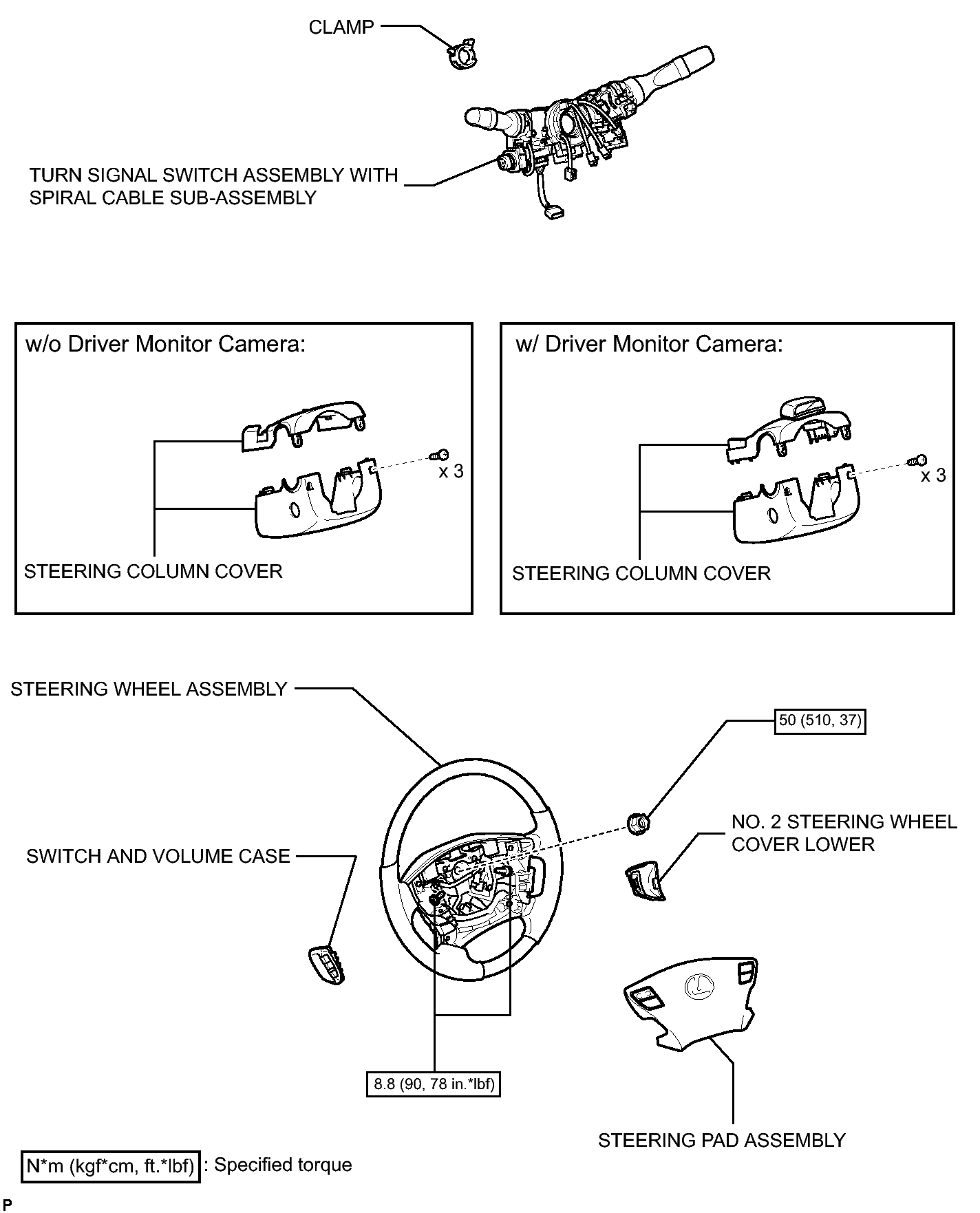

Fig 1: Identifying Automatic Light Control Sensor Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

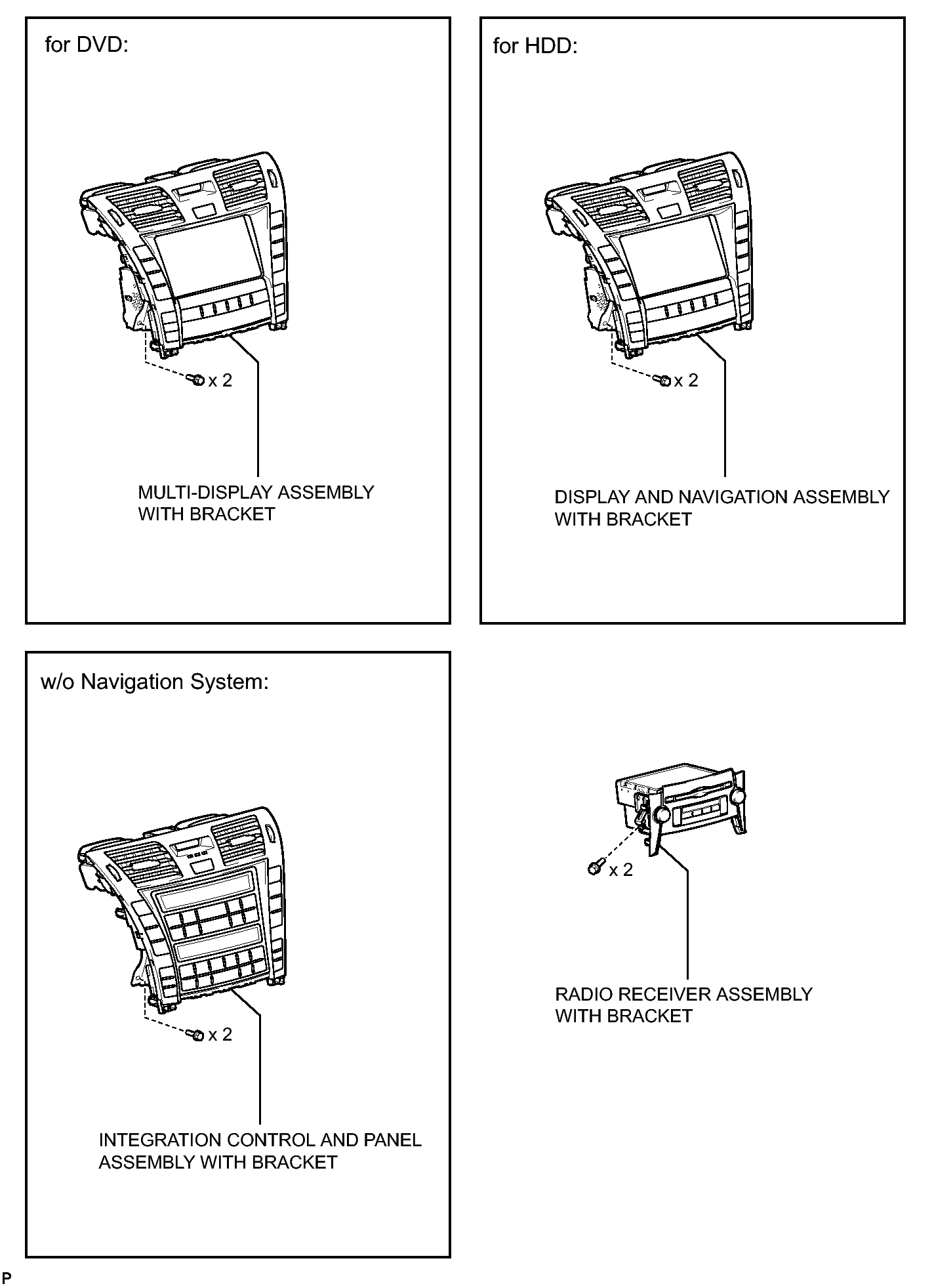

Fig 1: Identifying Automatic Light Control Sensor Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

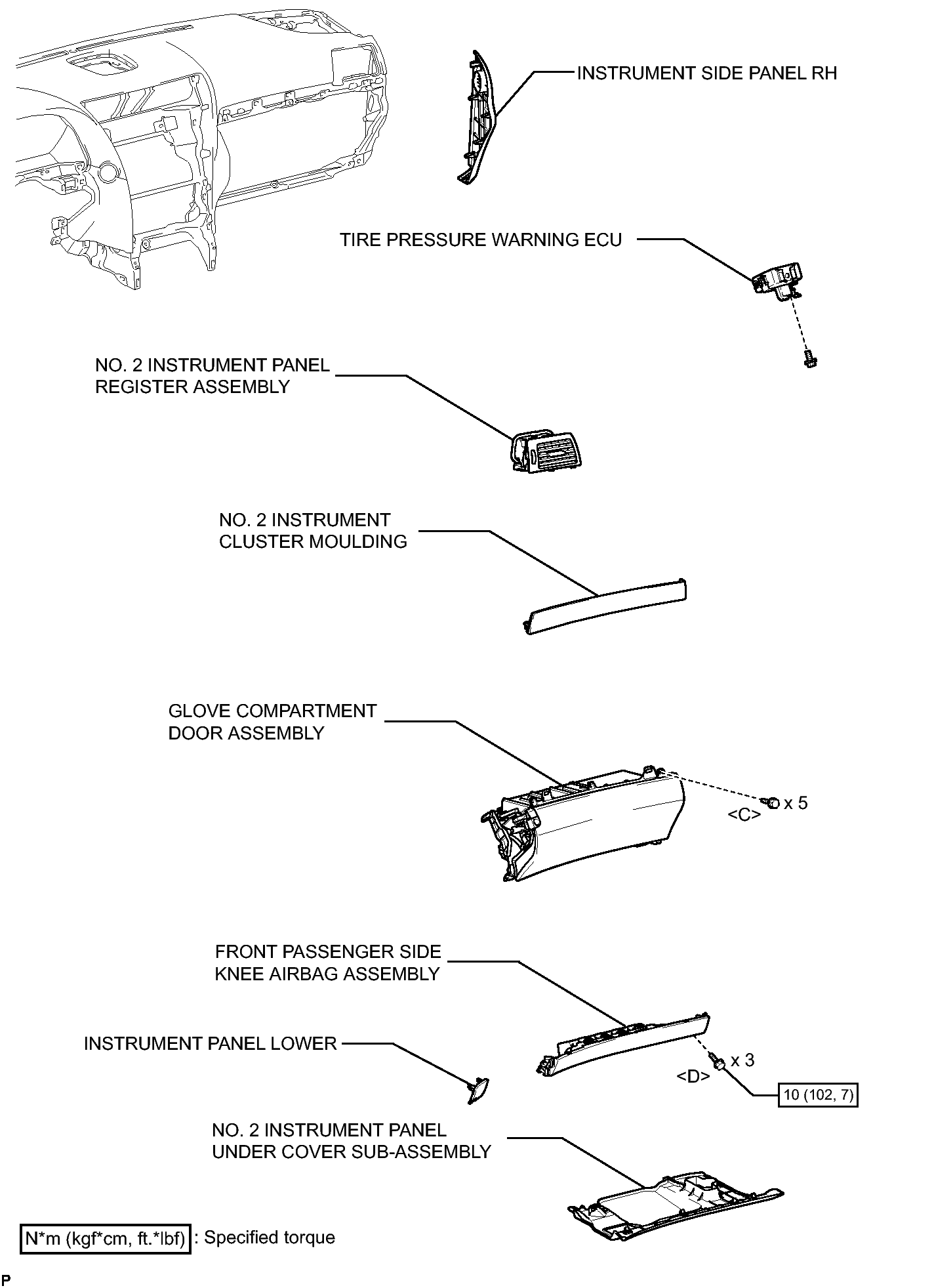

Fig 1: Identifying Automatic Light Control Sensor Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

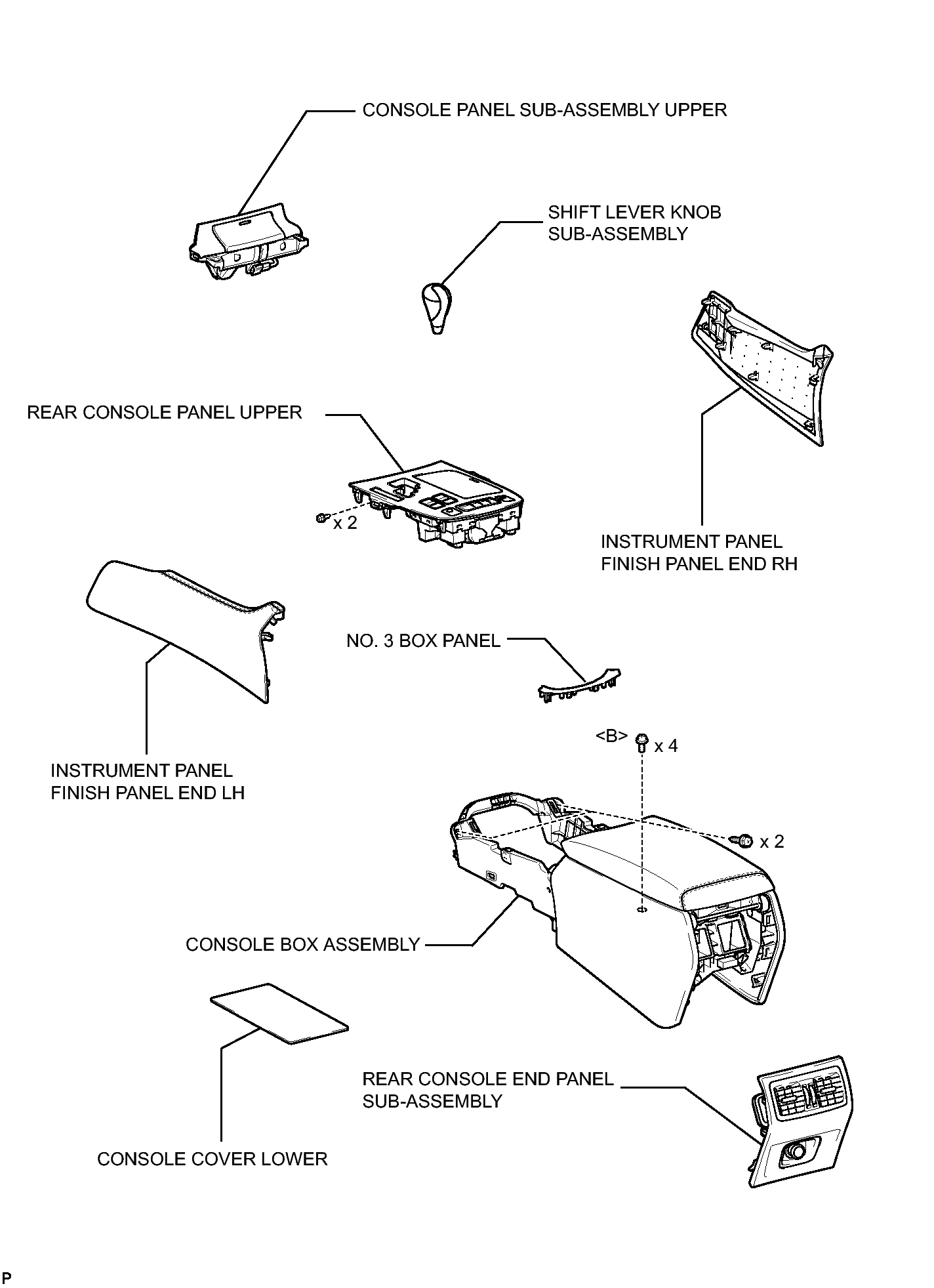

Fig 1: Identifying Automatic Light Control Sensor Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

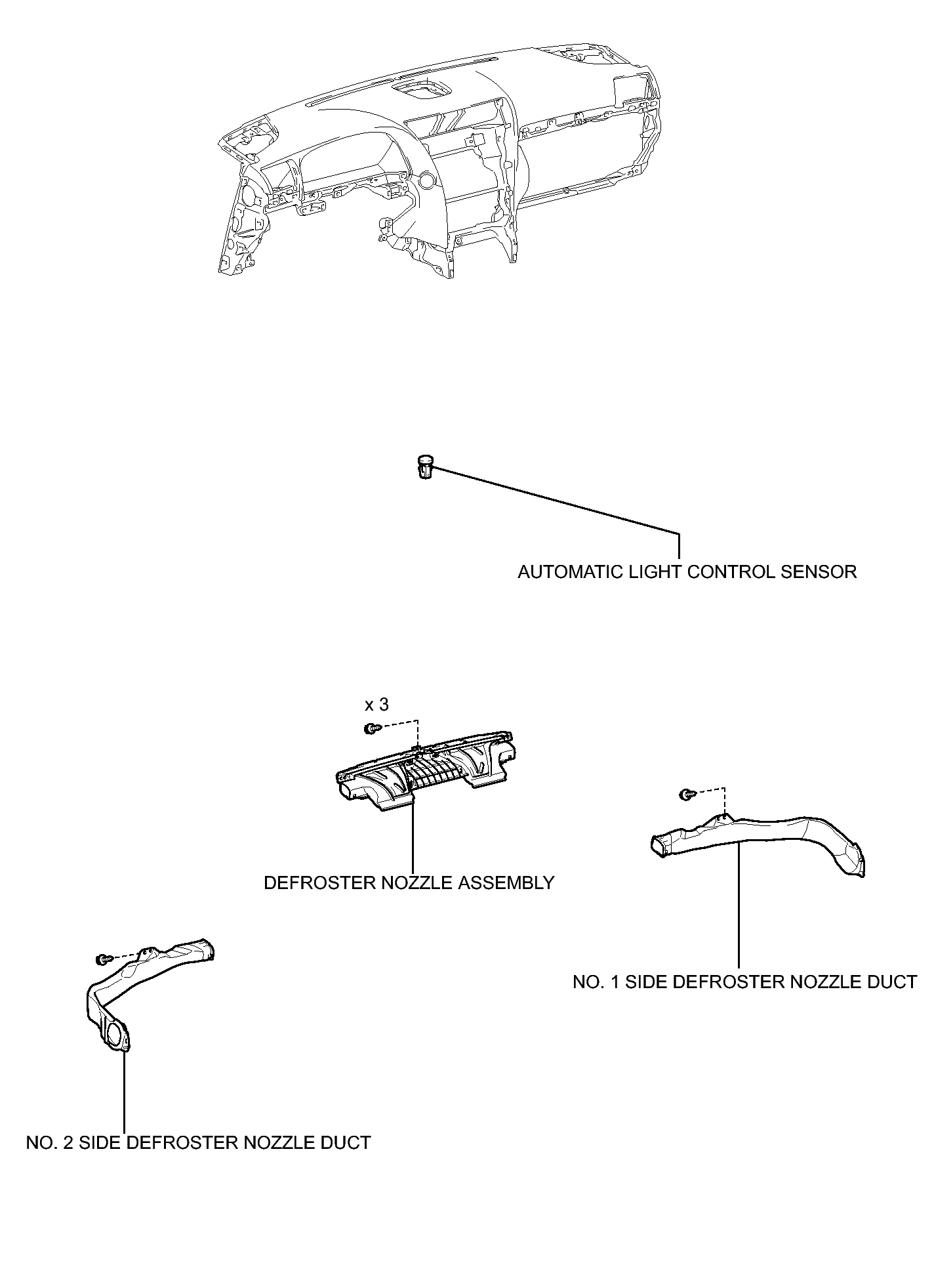

Fig 1: Identifying Automatic Light Control Sensor Replacement Components With Torque Specifications (5 Of 6)

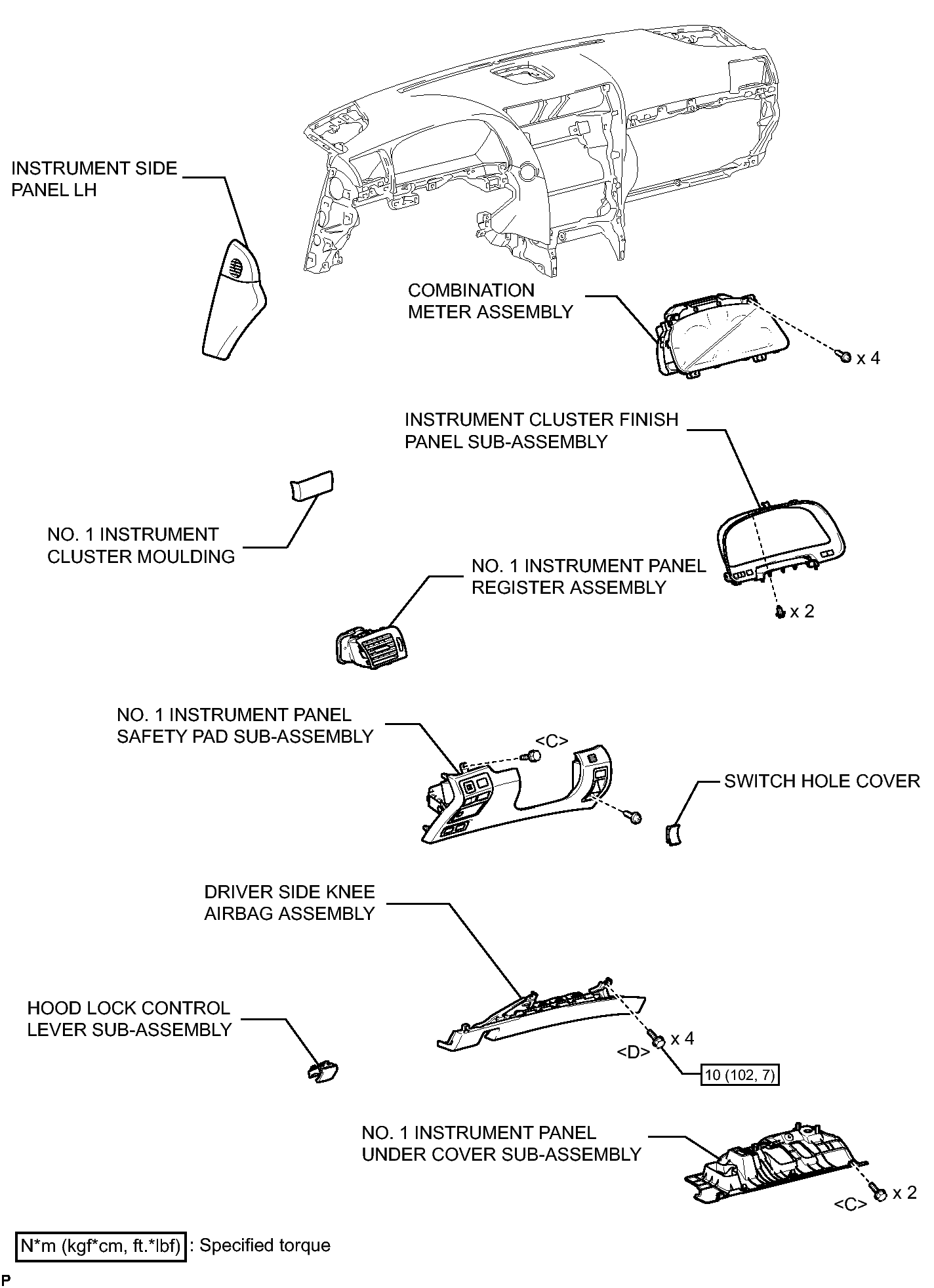

Fig 1: Identifying Automatic Light Control Sensor Replacement Components With Torque Specifications (6 Of 7)

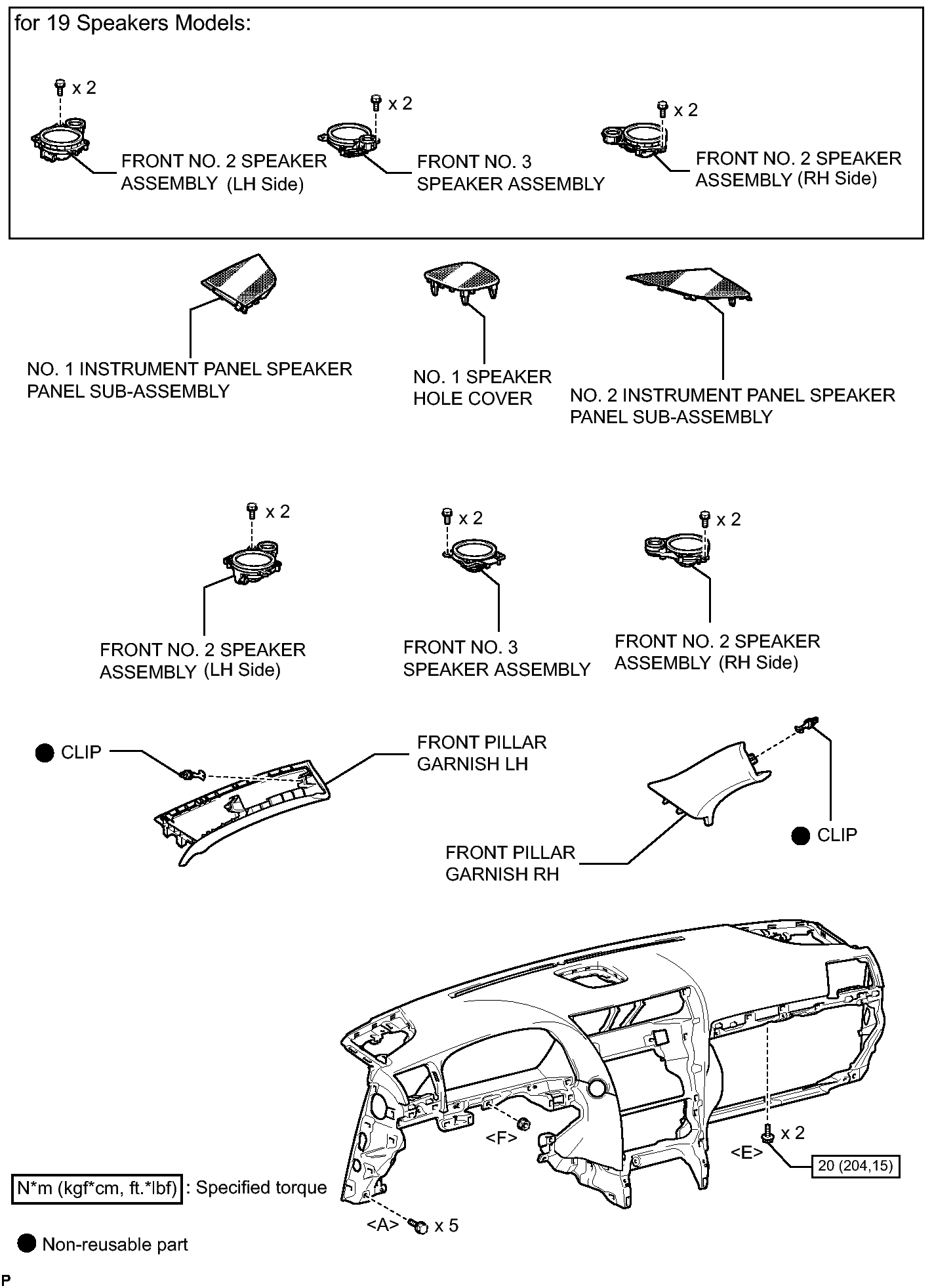

Fig 1: Identifying Automatic Light Control Sensor Replacement Components (7 Of 7)
