Height Control Sensor: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

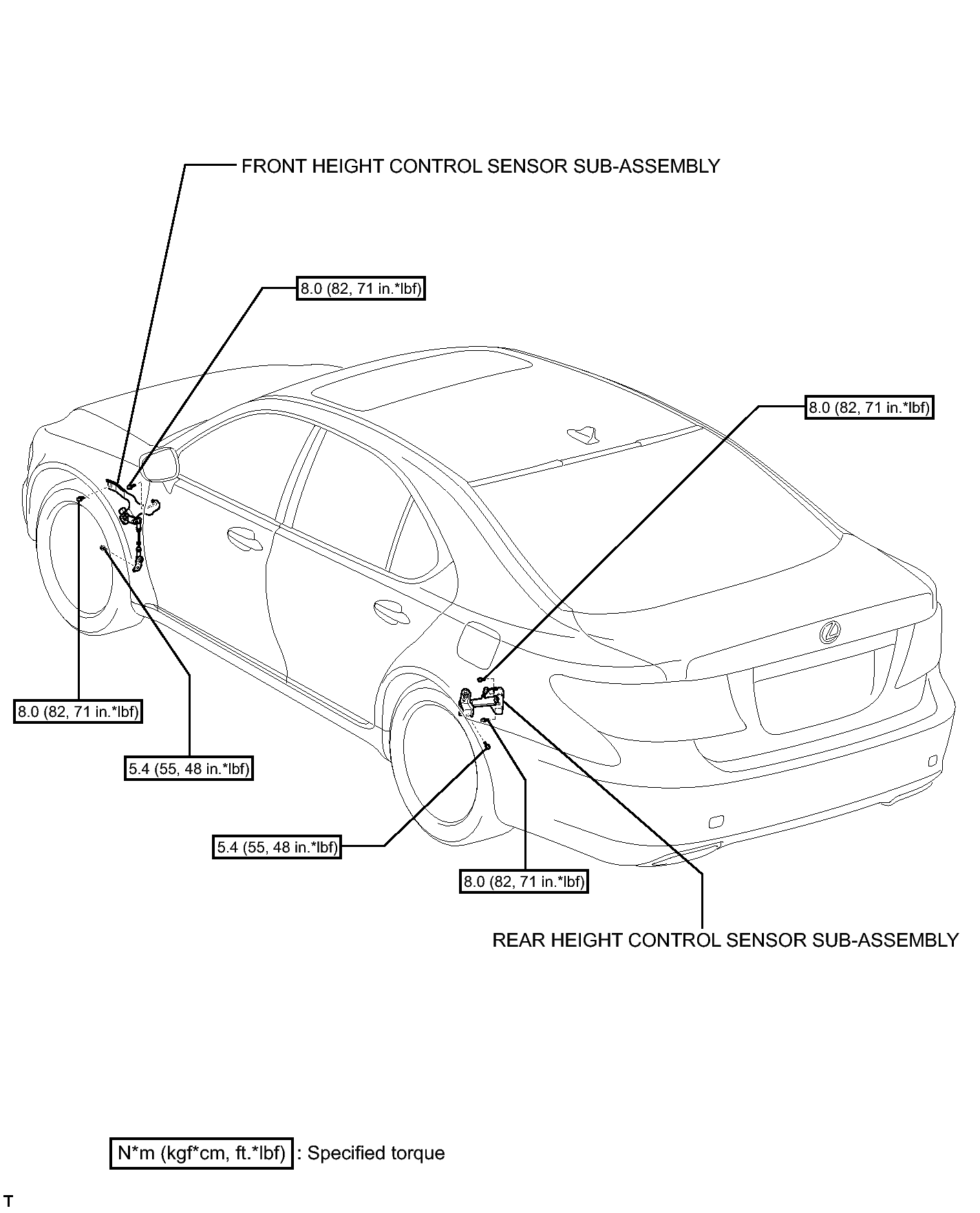

Fig 1: Identifying Height Control Sensor Replacement Components With Torque Specifications
GTY289673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
