Steering Lock Motor Drive Power Circuit: Procedure

1. Check the problem symptom of the steering lock system.
   RESULT



   Condition	Proceed to
   Steering lock cannot be released	A
   Steering cannot be locked	B

B → See step   6

A: Go to next step

1. Use the Data List to check if the steering lock command is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Lock/Unlock Receive	Steering lock command reception record/Yes or No	Yes: Steering lock/unlock signal received No: Steering lock/unlock signal not received	-

   OK

   YES is displayed on the Techstream screen.

NG → See step   7

OK: Go to next step

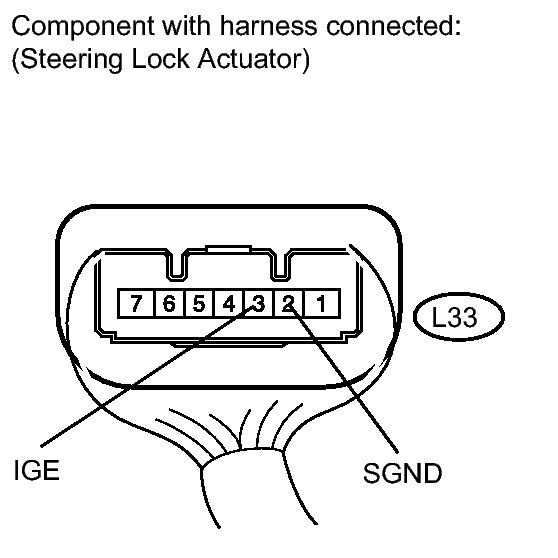

Fig 1: Identifying L33 Steering Lock Actuator Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Immediately after turning the engine switch on (IG), measure the voltage between terminals L33-3 (IGE) and L33-2 (SGND) of the steering lock actuator.
   RESULT



   Result	Proceed to
   Below 1 V	A
   11 to 14 V (measured voltage never becomes below 1 V	B

A → See step   8

B: Go to next step

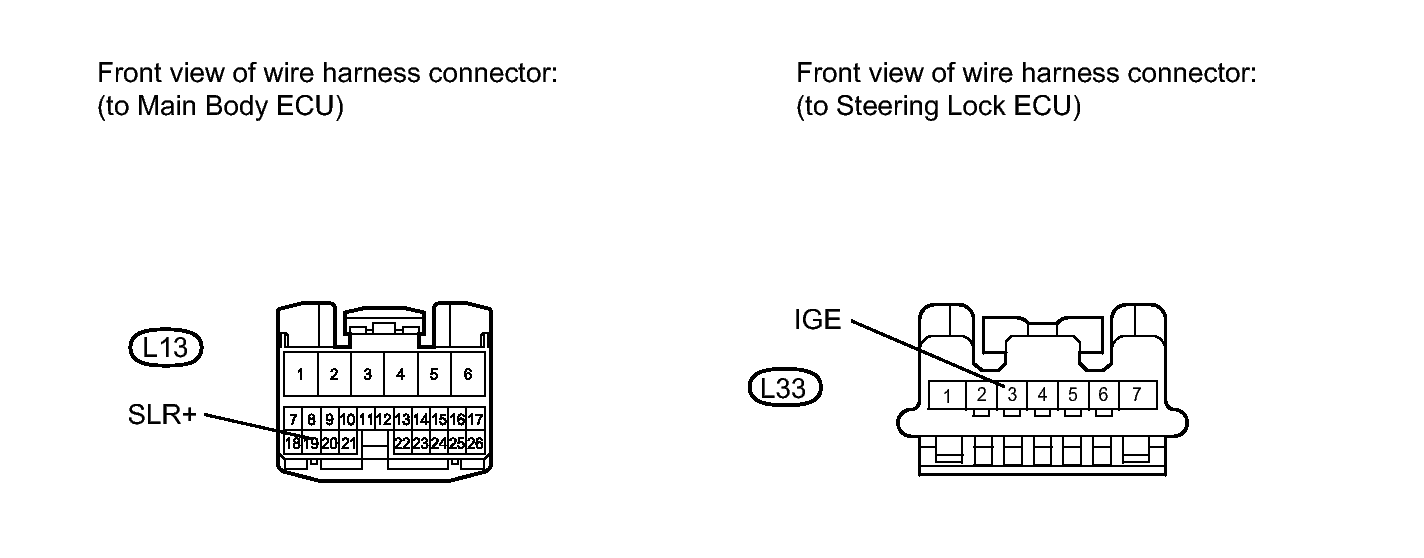

Fig 2: Identifying L13 Main Body ECU And L33 Steering Lock Actuator Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L13 main body ECU connector.
2. Disconnect the L33 steering lock actuator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L33-3 (IGE) - L13-19 (SLR+)	Always	Below 1 Ω
   L33-3 (IGE) or L13-19 (SLR+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU

1. Shift the shift lever to the P position.
   Fig 3: Identifying L33 Steering Lock Actuator Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch off.
3. Open the driver side door.
4. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   L33-3 (IGE) - L33-2 (SGND)	Steering lock motor is operating	Below 1 V
   	Steering lock motor is not operating	11 to 14 V

OK → See step   8

NG: Go to next step

Fig 4: Identifying L13 Main Body ECU And L33 Steering Lock Actuator Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L13 main body ECU connector.
2. Disconnect the L33 steering lock actuator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L33-3 (IGE) - L13-19 (SLR+)	Always	Below 1 Ω
   L33-3 (IGE) or L13-19 (SLR+) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU
