Fog Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FOG LIGHT BULB
    1. Turn the fog light bulb in the direction indicated by the arrow and install it to the fog light unit LH.

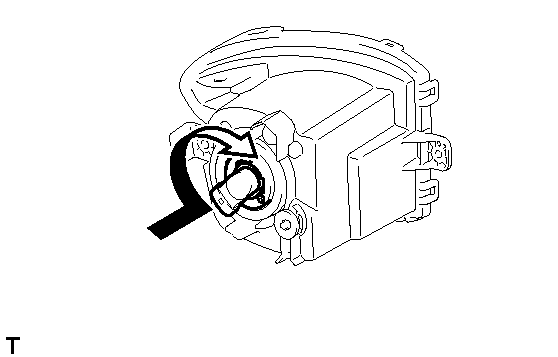

      Fig 1: Turning The Fog Light Bulb
      GTY286145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
