System Diagram

MOST NETWORK COMMUNICATION LINE

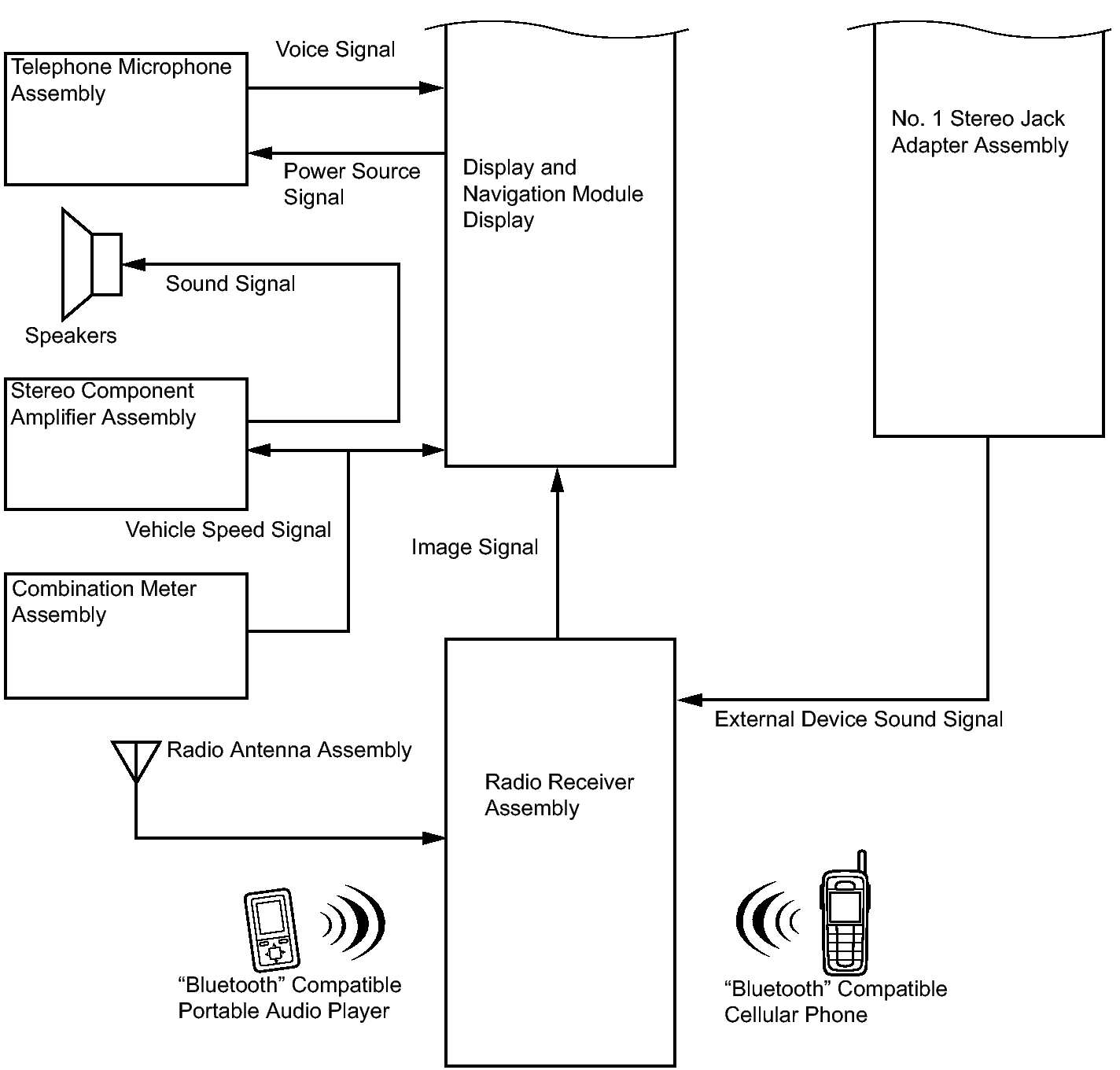

Fig 1: MOST Network Communication Line - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AVC-LAN COMMUNICATION LINE

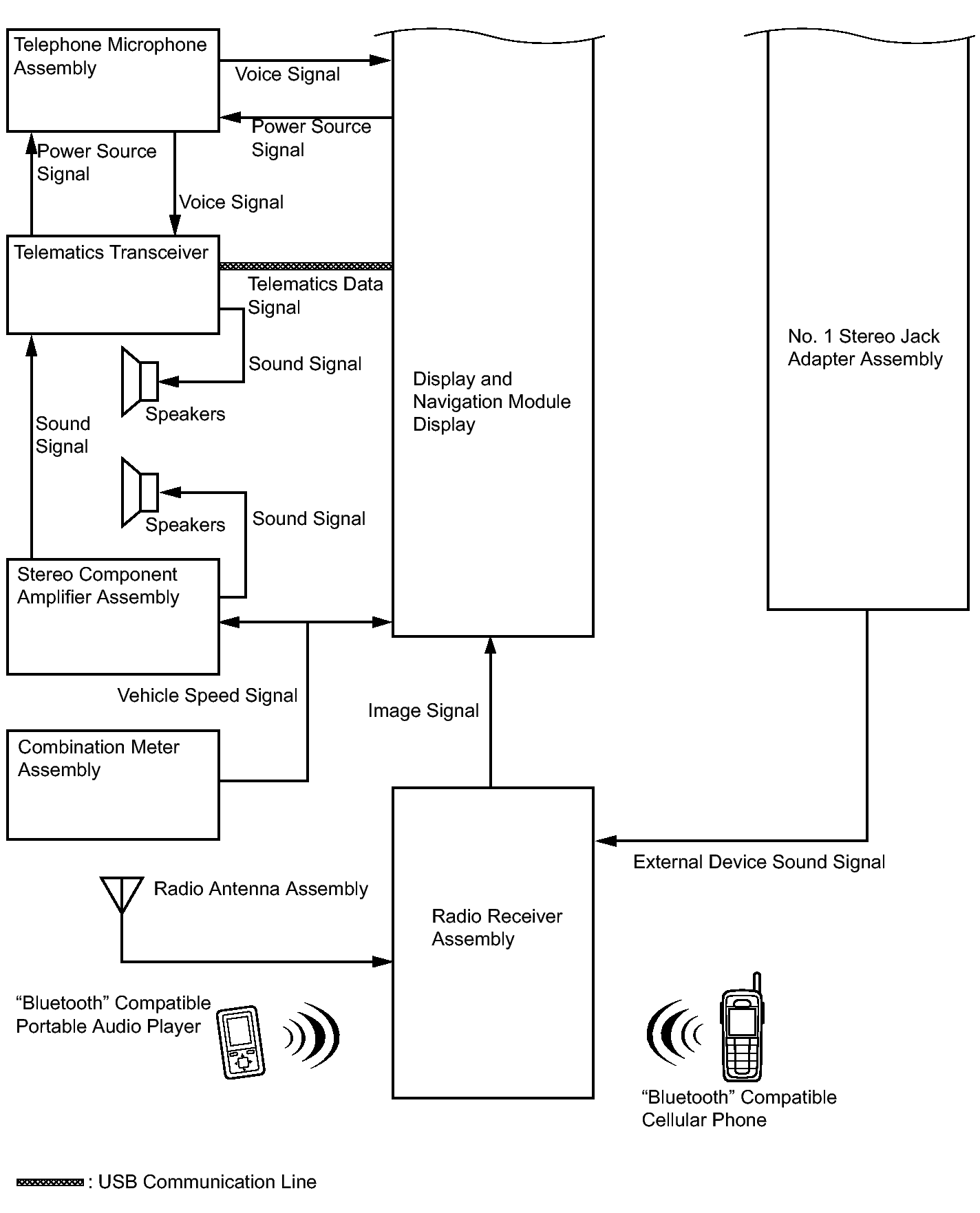

Fig 2: Identifying Audio And Visual System (W/ Multi-Display) System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER (w/ Navigation System [for DVD])
1. w/ Rear Seat Entertainment System

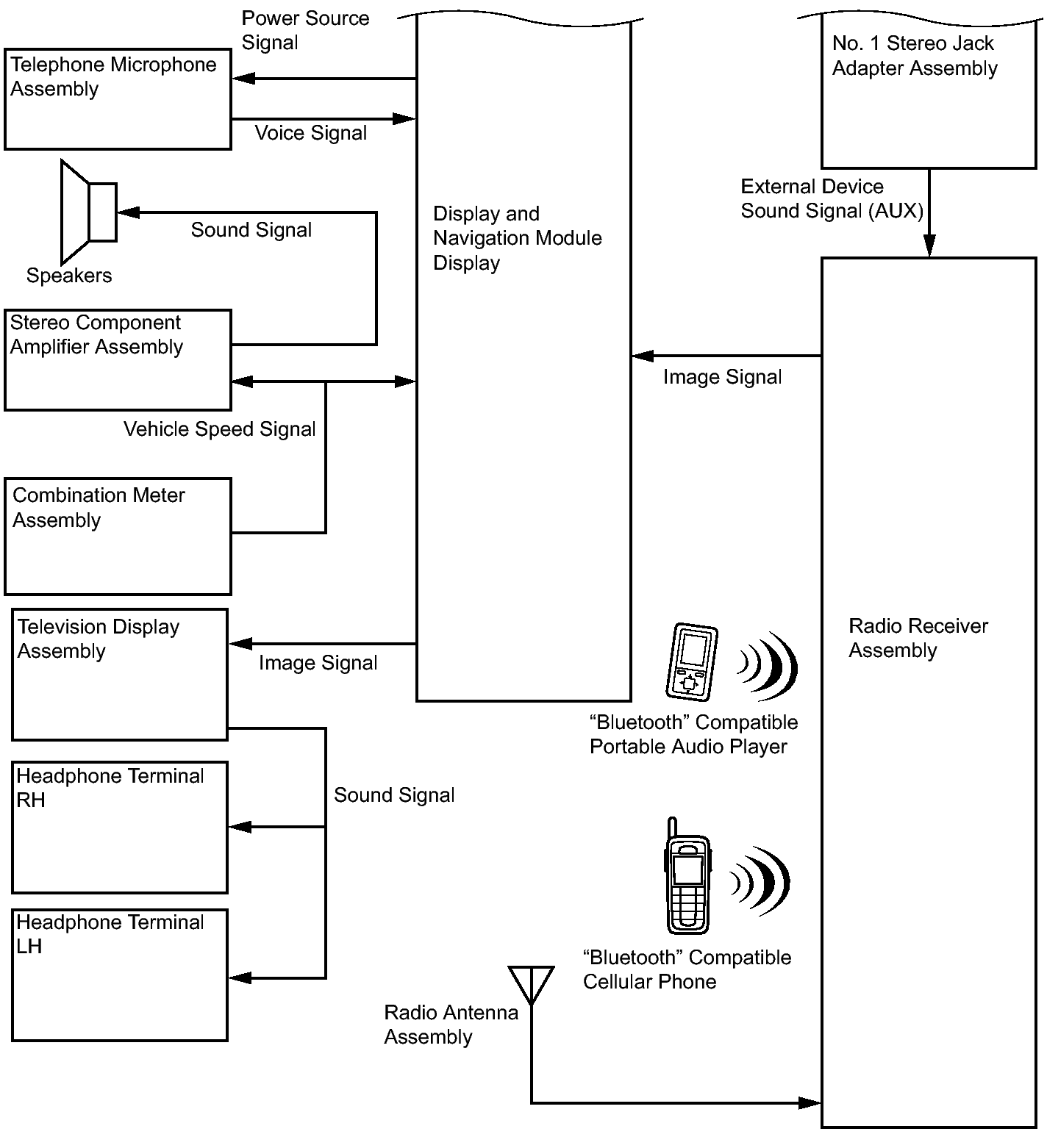

  Fig 3: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & DVD) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

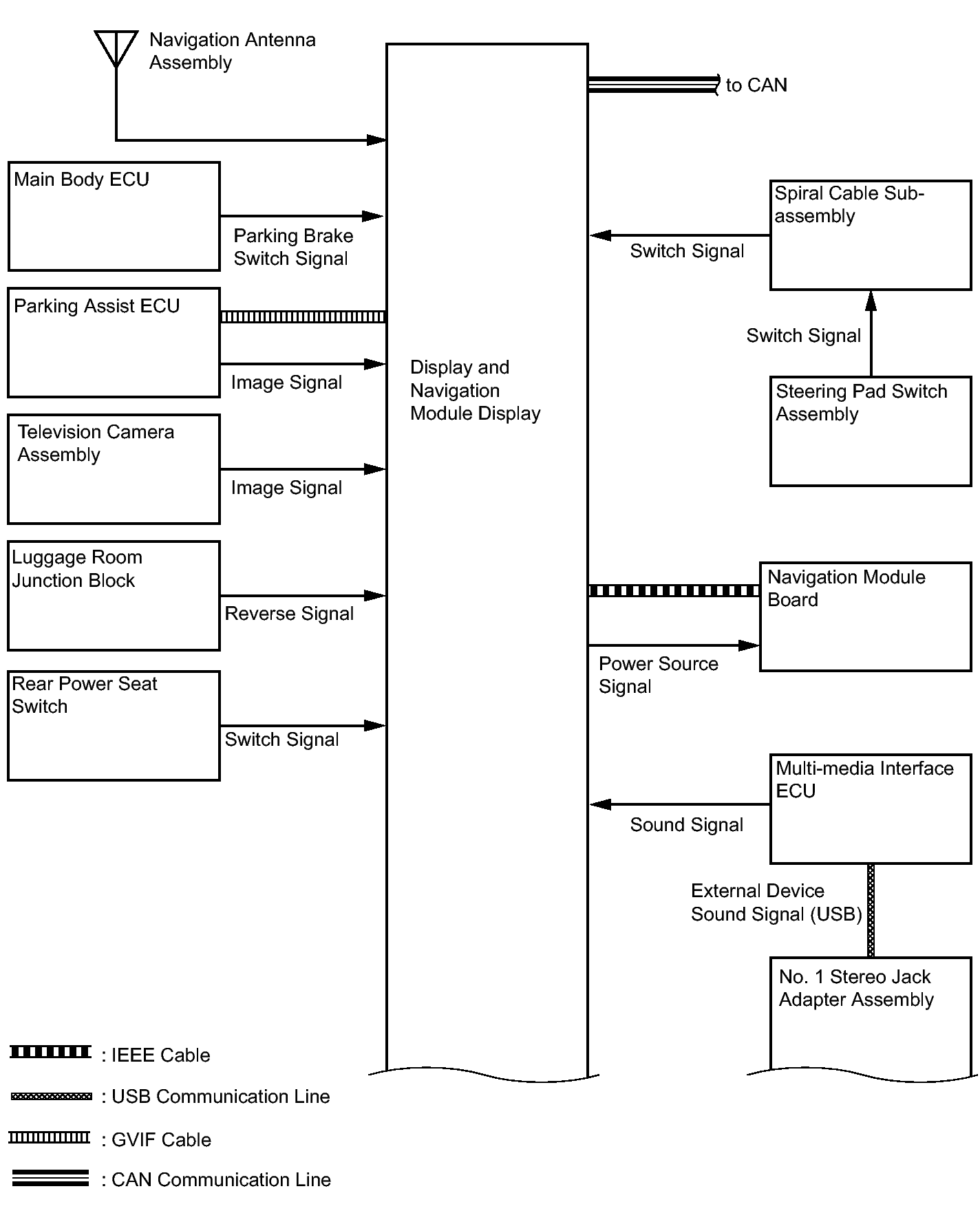

  Fig 4: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & DVD) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear Seat Entertainment System

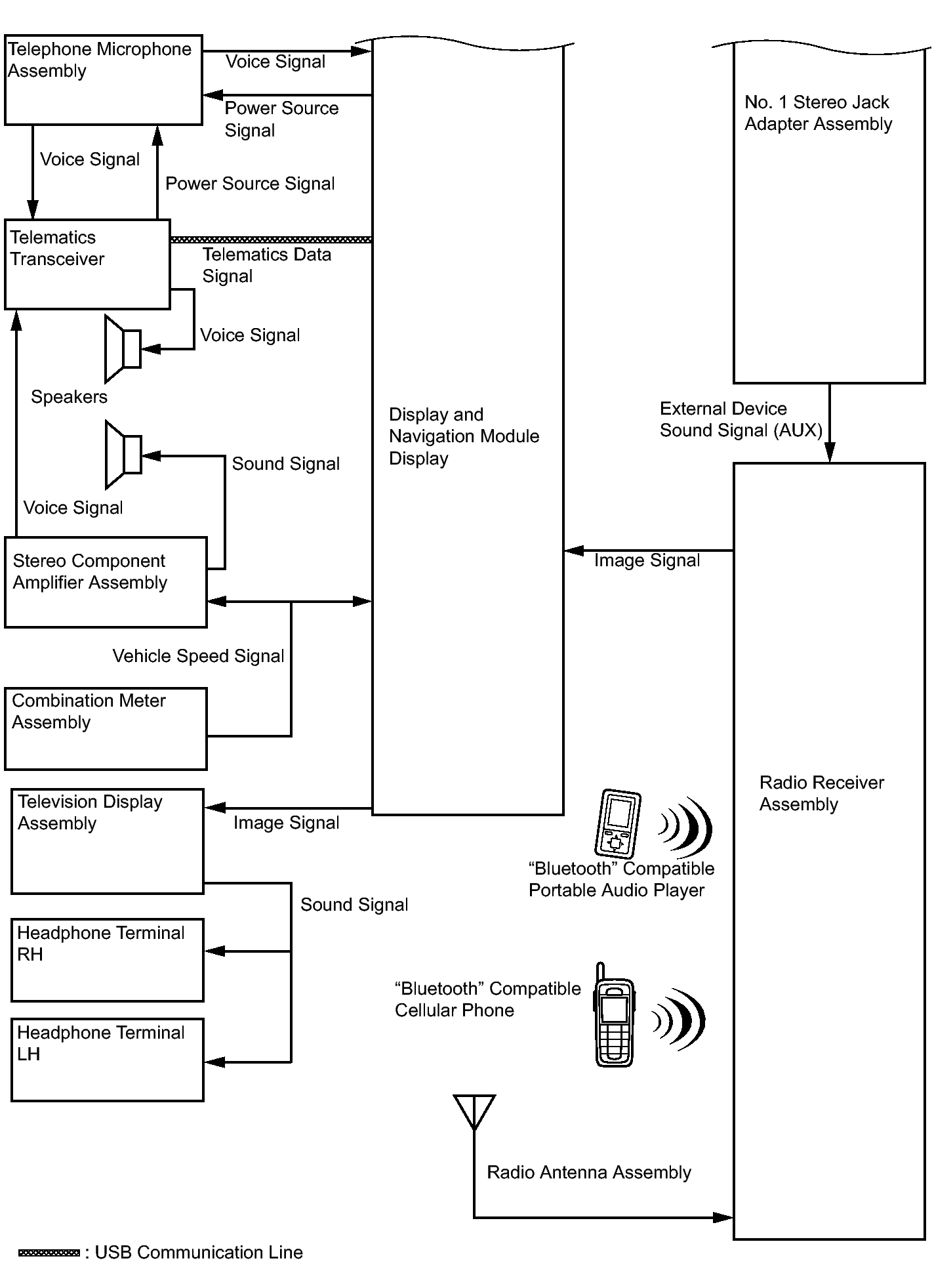

  Fig 5: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

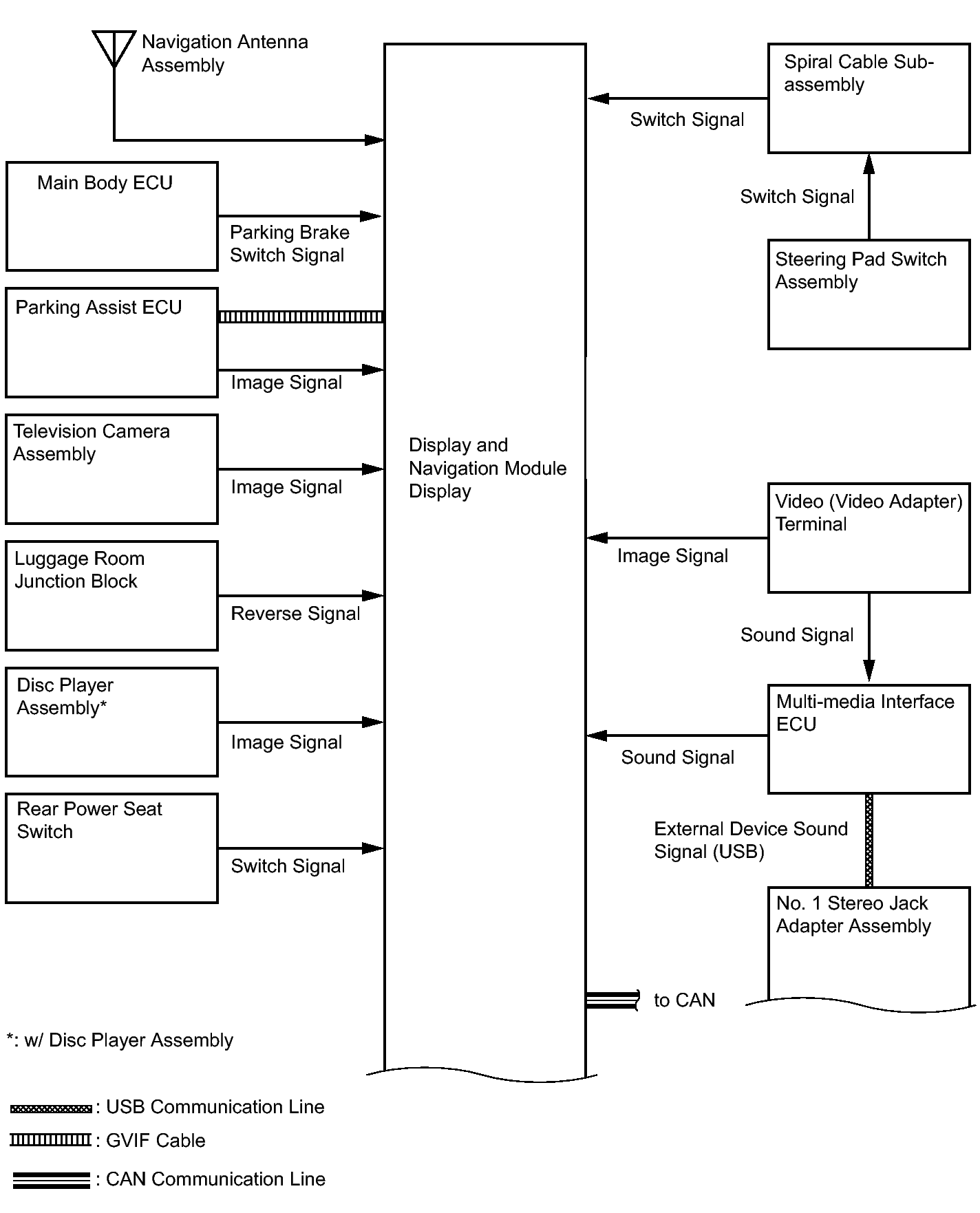

  Fig 6: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OTHER (w/ Navigation System [for HDD])
1. w/ Rear Seat Entertainment System

  Fig 7: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & HDD) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 8: Identifying A/V System Diagram (W/ Navigation, Rear Seat Entertainment System & HDD) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Rear Seat Entertainment System

  Fig 9: Identifying A/V System (for HDD) - w/o Rear Seat Entertainment - System Diagram (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 10: Identifying A/V System Diagram (W/O Rear Seat Entertainment System) (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
