Front Speed Sensor: Installation: Installation

NOTE:

While the battery is connected, even if the power switch is OFF, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.

HINT:

  1. INSTALL SPEED SENSOR FRONT RH
    1. Install the sensor with the bolt.

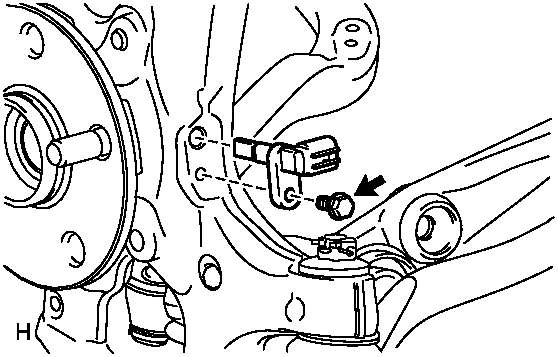

      Fig 1: Locating Front Speed Sensor Bolt
      GTY143152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:
      • The speed sensor is easily damaged.

        When installing the speed sensor to the axle hub, do not use excessive force to rotate and install it.

      • Prevent foreign matter from attaching to the sensor tip.
      • Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
  2. INSTALL SKID CONTROL SENSOR WIRE
    1. Connect the connector to the front speed sensor.

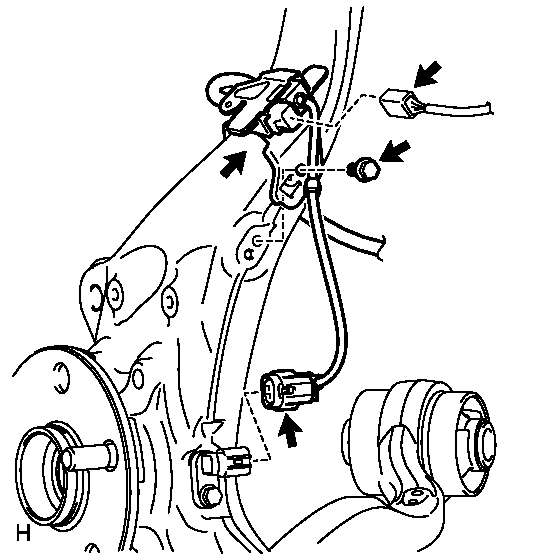

      Fig 2: Locating Front Speed Sensor To Connector, Sensor Clamp & Bolt RH
      GTY110446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the sensor clamp with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not twist the sensor wire when installing the clamps.

    3. Connect the pad wear indicator connector.
    4. Install the 2 sensor clamps with the 2 bolts.

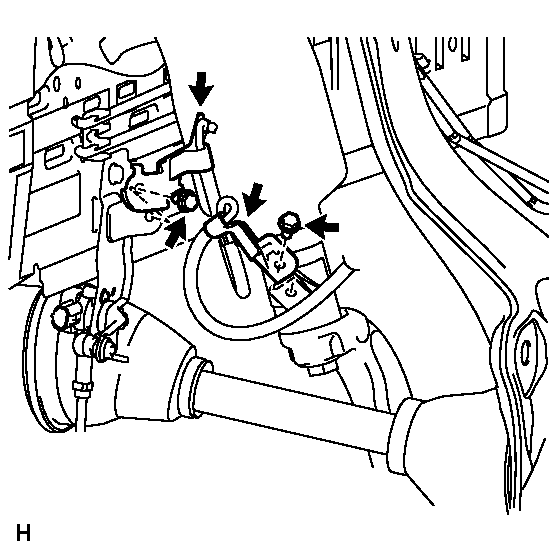

      Fig 3: Locating Sensor Clamps With Bolts
      GTY110442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      Do not twist the sensor wire when installing the clamps.

    5. Attach the 2 sensor clips.

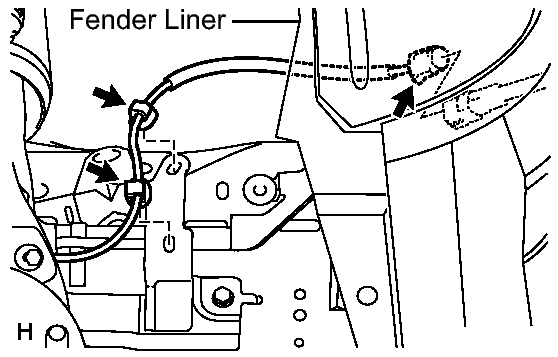

      Fig 4: Locating Front Fender Liner And Sensor Clips
      GTY110154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not twist the sensor wire when installing the clips.

    6. Connect the sensor connector.
    7. Connect the front fender liner.
  3. INSTALL FRONT WHEEL  . Refer to INSTALLATION - Step 28
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  5. INSTALL BATTERY SERVICE HOLE COVER LH  . Refer to INSTALLATION - Step 15
  6. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  7. CHECK SPEED SENSOR SIGNAL
    1. Check the speed sensor signal. Refer to TEST MODE PROCEDURE .
