Section 41 (Air Conditioning System (Service Information)): Compressor: Installation: Installation

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.
  1. ADJUST COMPRESSOR OIL
    1. When replacing the electric inverter compressor with a new one, gradually discharge the gas from the service valve of the new compressor, and drain the following amount of oil from the new electric inverter compressor before installation.

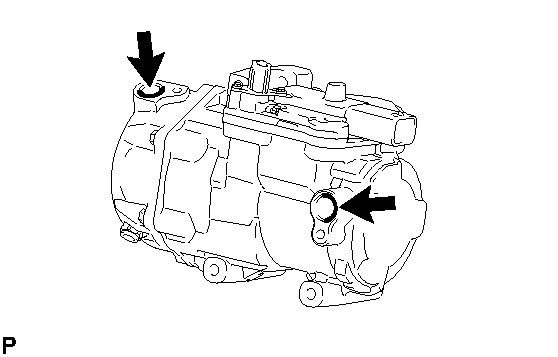

      Fig 1: Identifying Sight Glass
      GTY330409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      (Oil capacity inside the new electric inverter compressor: 130 to 145 cc (4.4 to 4.9 fl. oz.)) - (Remaining oil amount in the removed electric inverter compressor) = (Oil amount to be removed from the new compressor when replacing)

      NOTE:
      • When checking the compressor oil level, observe the precautions on the air conditioning Refrigerant-Replacement.
      • If a new compressor and magnetic clutch are installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes refrigeration failure.
      • If the amount of oil remaining in the old compressor is too small, check the A/C system for oil leaks.
      • Be sure to use ND-OIL 11 or equivalent for compressor oil. If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
  2. INSTALL ELECTRIC INVERTER COMPRESSOR
    1. Using an E8 "TORX" socket wrench, temporarily install the electric inverter compressor with the 2 stud bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Temporarily install the bolt and 2 nuts.
    3. Install the electric inverter compressor with the bolt and 2 nuts.

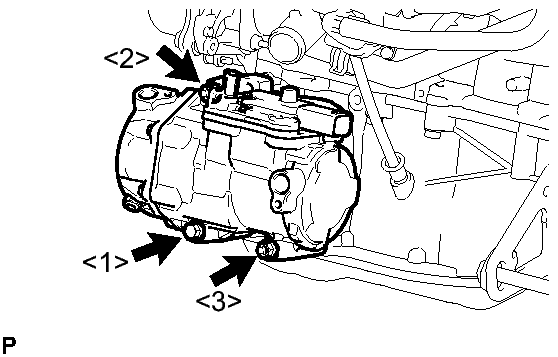

      Fig 2: Identifying Electric Inverter Compressor With Bolt And 2 Nuts
      GTY355025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

      NOTE:

      Tighten the bolts in the order shown in the illustration to install the electric inverter compressor.

    4. Connect the connector <B>.

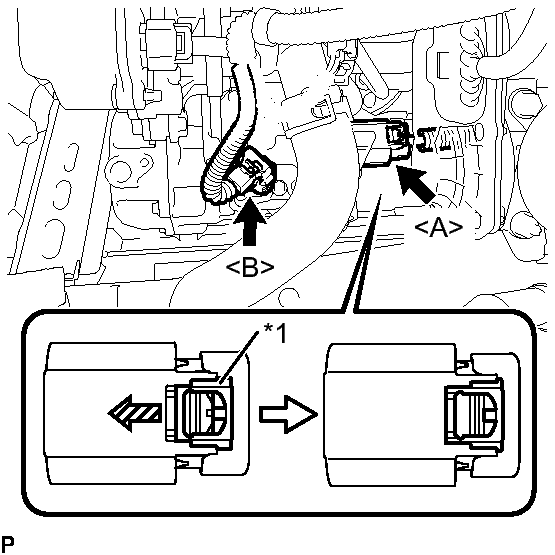

      Fig 3: Identifying Electric Inverter Compressor Connector
      GTY359389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Green-colored Lock
    5. Connect the connector <A> and slide the green-colored lock in the direction indicated by the arrow in the illustration to lock it securely.
      WARNING:

      Make sure to wear insulating gloves.

      NOTE:

      Make sure that the connector is connected securely.

  3. CONNECT COOLER REFRIGERANT SUCTION HOSE
    1. Remove the vinyl tape from the hose.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the electric inverter compressor.

      Compressor oil

      ND-OIL 11 or equivalent

    3. Install the O-ring onto the cooler refrigerant suction hose.
      NOTE:
      • Keep the O-ring and O-ring fitting surfaces free from dirt or foreign matter.
      • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
    4. Install the cooler refrigerant suction hose onto the electric inverter compressor with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  4. CONNECT COOLER REFRIGERANT DISCHARGE HOSE
    1. Remove the attached vinyl tape from the hose.
    2. Apply a sufficiently amount of compressor oil to a new O-ring and the fitting surface of the electric inverter compressor.

      Compressor oil

      ND-OIL 11 or equivalent

    3. Install the O-ring onto the cooler refrigerant discharge hose.
      NOTE:
      • Keep the O-ring and O-ring fitting surfaces free from dirt or foreign matter.
      • Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.
    4. Install the cooler refrigerant discharge hose onto the electric inverter compressor with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  5. INSTALL SERVICE PLUG GRIP  . Refer to INSTALLATION - Step 1
  6. INSTALL RADIATOR SUPPORT OPENING COVER  . Refer to INSTALLATION - Step 3
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  8. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE  . Refer to INSTALLATION - Step 70
  9. INSTALL DECK FLOOR BOX RH  . Refer to INSTALLATION - Step 71
  10. INSTALL REAR NO. 3 FLOOR BOARD  . Refer to INSTALLATION - Step 72
  11. INSTALL REAR DECK FLOOR BOX  . Refer to INSTALLATION - Step 73
  12. INSTALL REAR NO. 2 FLOOR BOARD  . Refer to INSTALLATION - Step 74
  13. INSTALL INLET AIR CLEANER ASSEMBLY  . Refer to INSTALLATION - Step 4
  14. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT  See step  2
  15. WARM UP COMPRESSOR  See step  3
  16. INSPECT FOR REFRIGERANT LEAK  See step  4
