Humidity Sensor: Installation: Installation

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HUMIDITY SENSOR

Engage the 2 guides, and carefully install the humidity sensor to the glass surface, preventing air bubbles from forming between the contact surfaces.

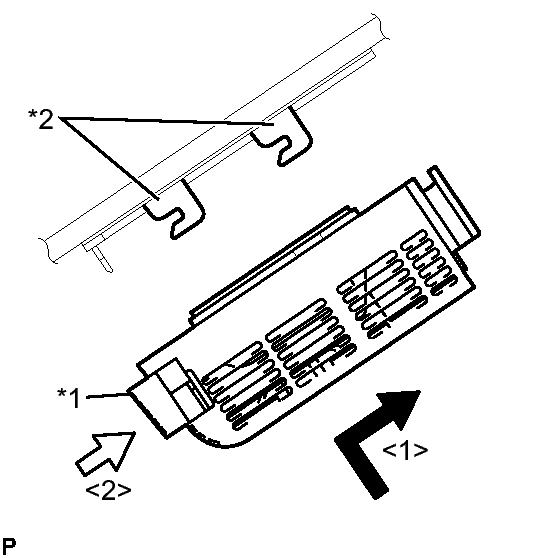

Fig 1: Installing Humidity Sensor To Glass Surface & Guides

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Stopper
*2	Bracket

Push in the stopper.
Connect the connector.

INSTALL PROTECTOR
1. Engage the 2 claws and temporarily install the protector.

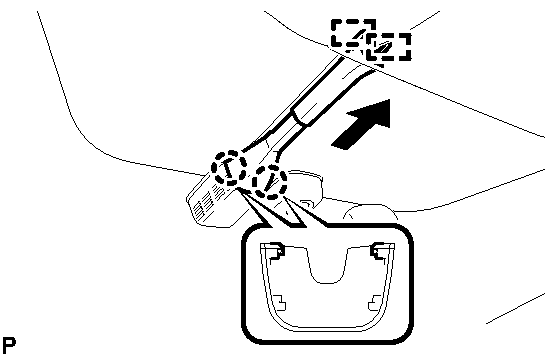

  Fig 2: Installing Protector & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the protector and engage the 2 guides as shown in the illustration to install the protector.
