System Diagram

NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

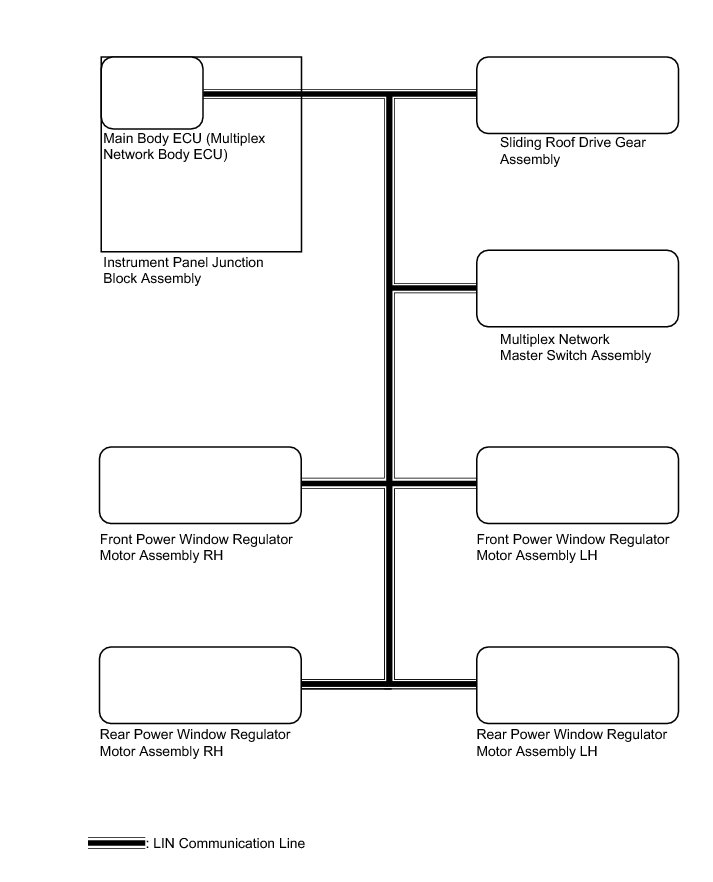

1. DOOR BUS LINES

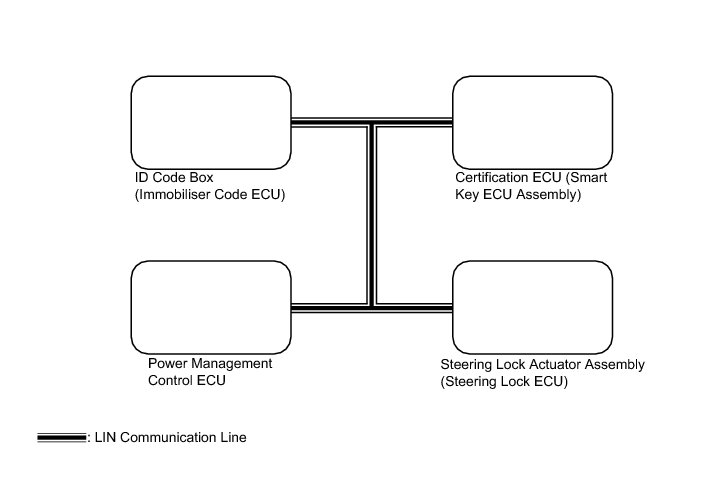

2. CERTIFICATION BUS LINES





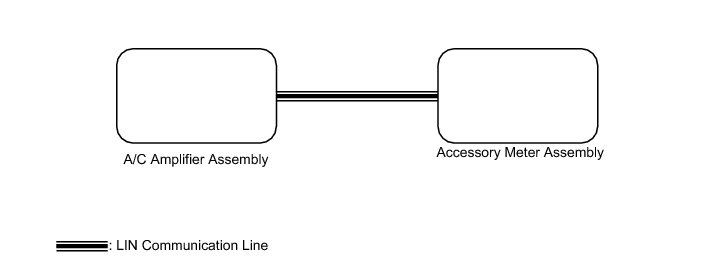

3. AIR CONDITIONING BUS LINES (w/o Navigation System)

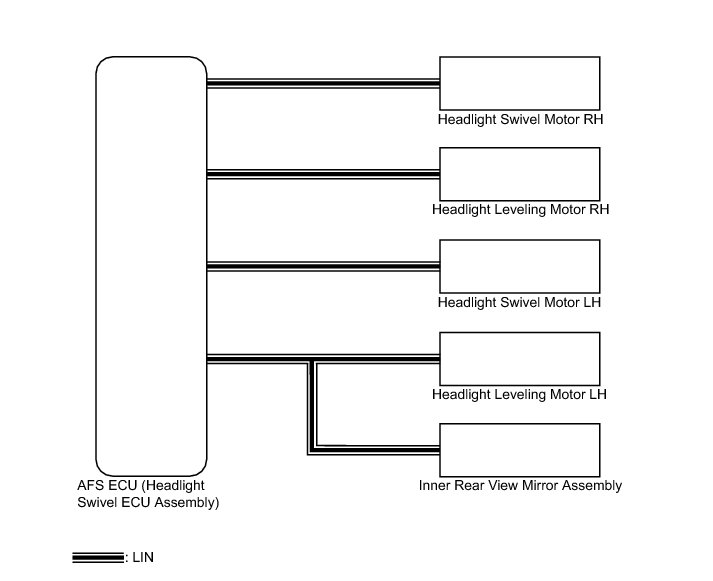

4. LIGHTING BUS LINES

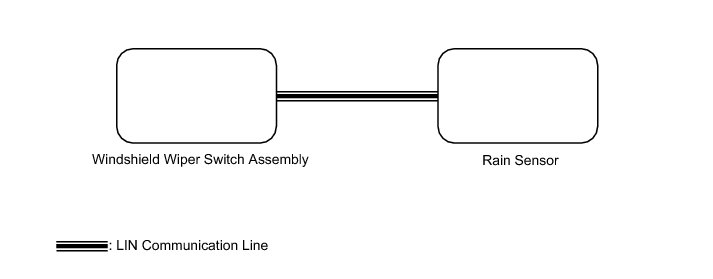

5. WINDSHIELD WIPER BUS LINES
