Integration Relay

POWER DISTRIBUTION: INTEGRATION RELAY: INSPECTION

1. INSPECT INTEGRATION RELAY

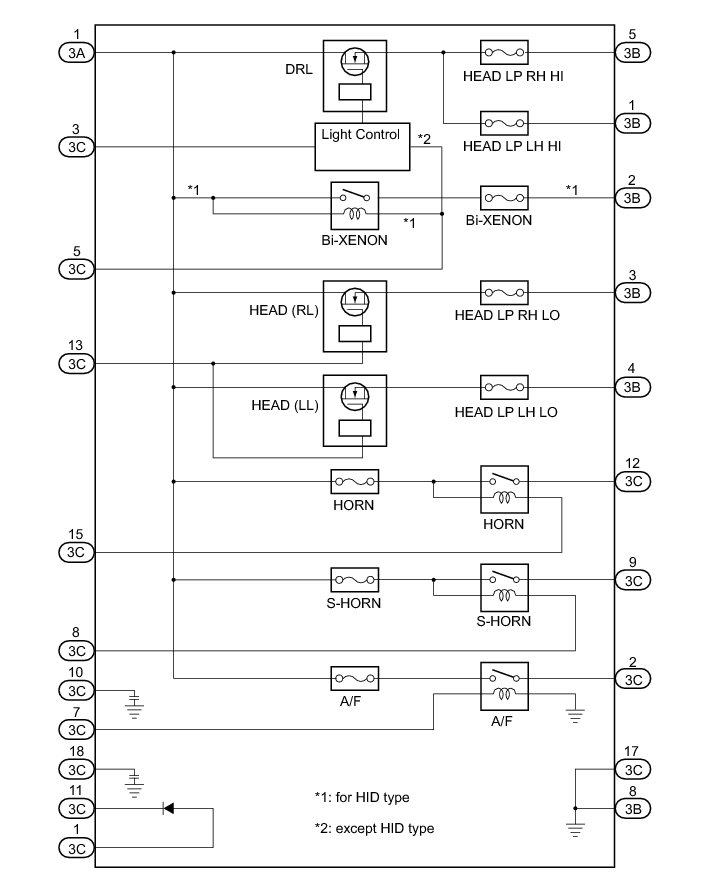

(a) Inner circuit





(1) for A/F relay

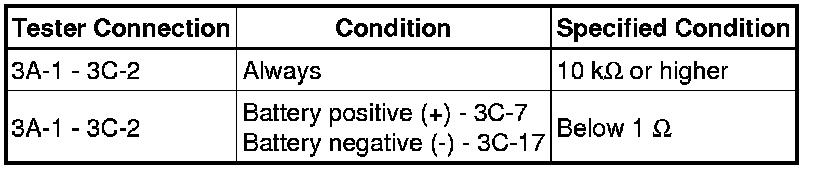

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(2) for Bi-XENON relay (for HID type)

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:

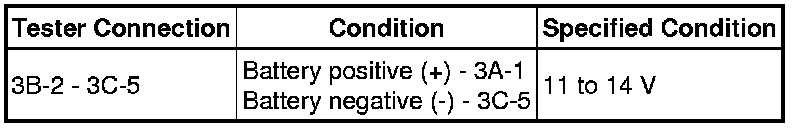

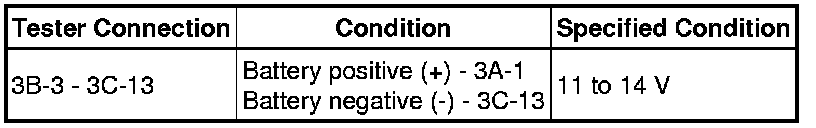

2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(3) for S-HORN relay

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:

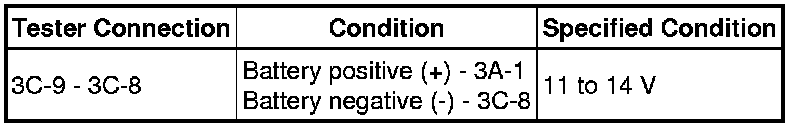

2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(4) for HORN relay

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:

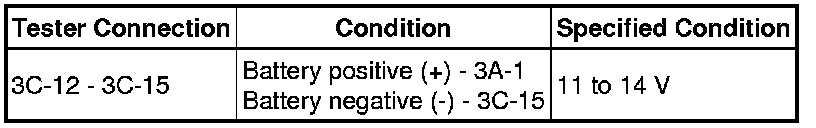

2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(5) for HEAD (RL) relay

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:





2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(6) for HEAD (LL) relay

1 Measure the resistance according to the value(s) in the table below.





Standard Resistance:





2 Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.

(7) for DRL relay

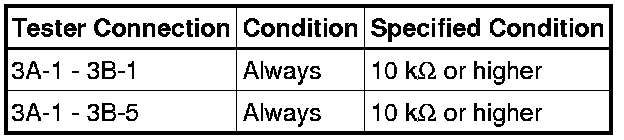

1 Measure the resistance according to the value(s) in the table below.

Standard Resistance:

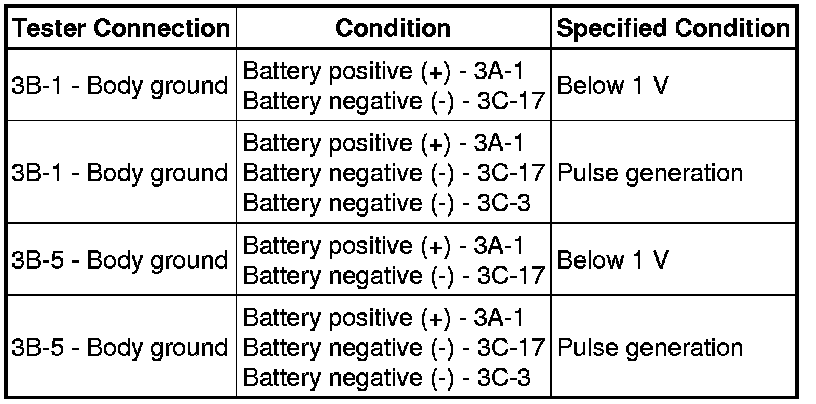

2 Measure the voltage and check for pulses according to the value(s) in the table below.





Standard:





Text in Illustration





HINT
If the result is not as specified, replace the integration relay.
