Main Relay (Computer/Fuel System)
>>
Locations
>>
22 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

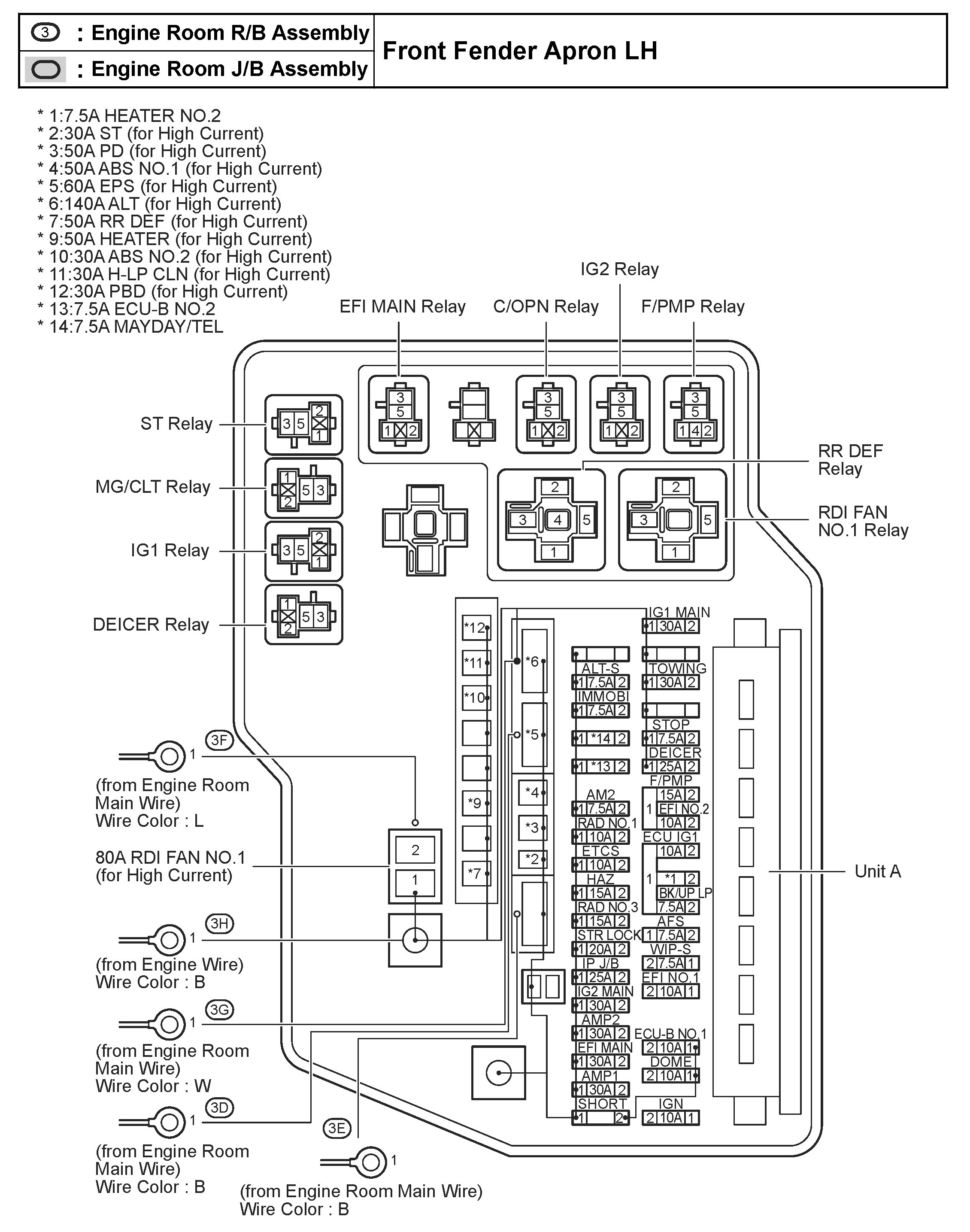

22 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH
22 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:
