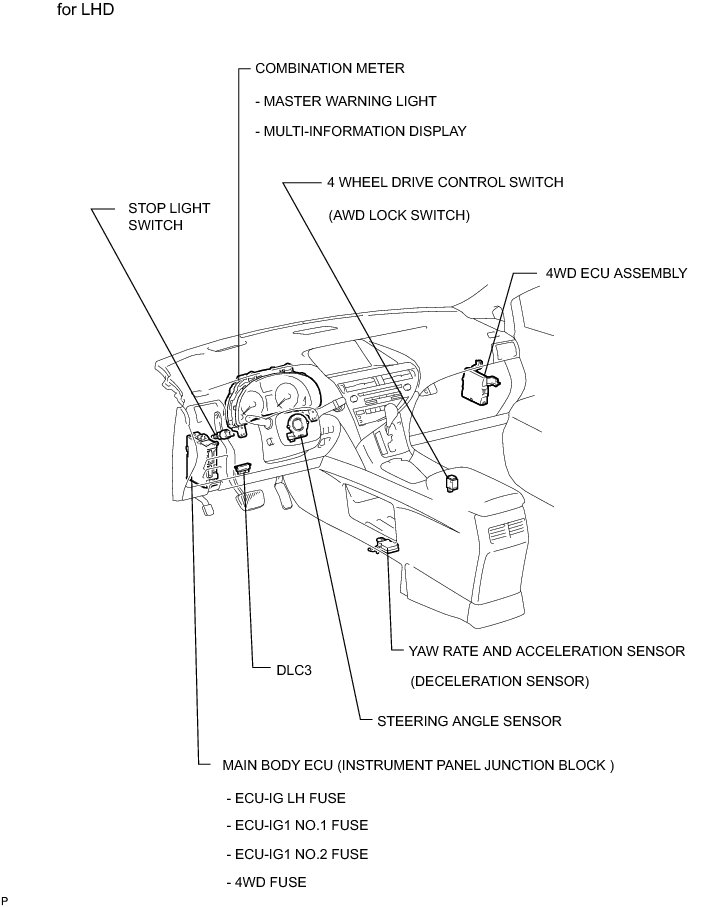

Active Torque Control 4WD System: Parts Location
MF1A TRANSFER / 4WD / AWD: ACTIVE TORQUE CONTROL 4WD SYSTEM: PARTS LOCATION
