Main Relay (Computer/Fuel System): Locations
Main Relay (Computer/Fuel System)

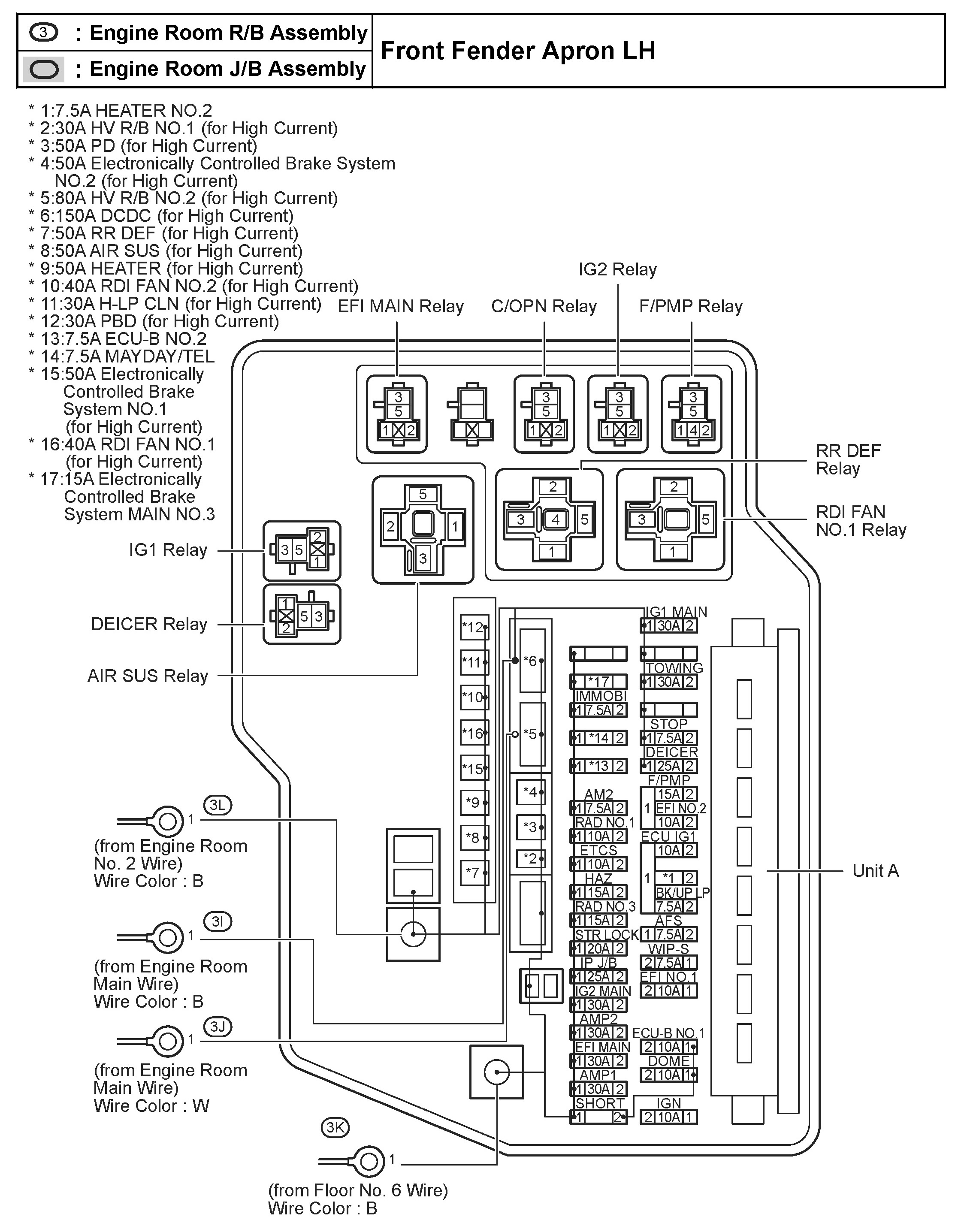

22 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

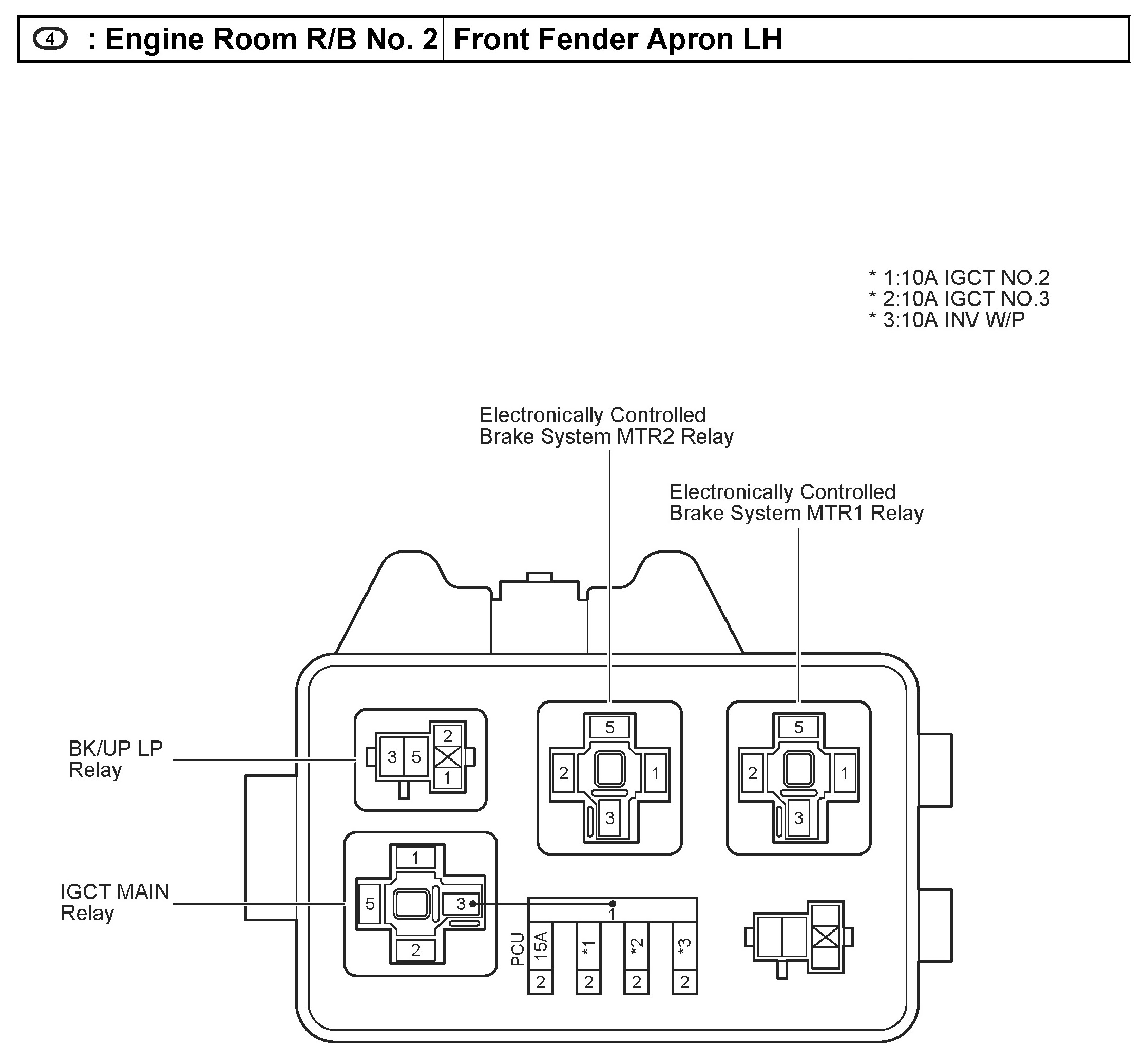

26 - Engine Room B/R No. 2 - Front Fender Apron LH:
