: Ground Points

Code See Ground Points Location
A1 LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Front Fender Apron RH
A3 LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Front Fender Apron LH
H2 LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace LH
H4 LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace RH

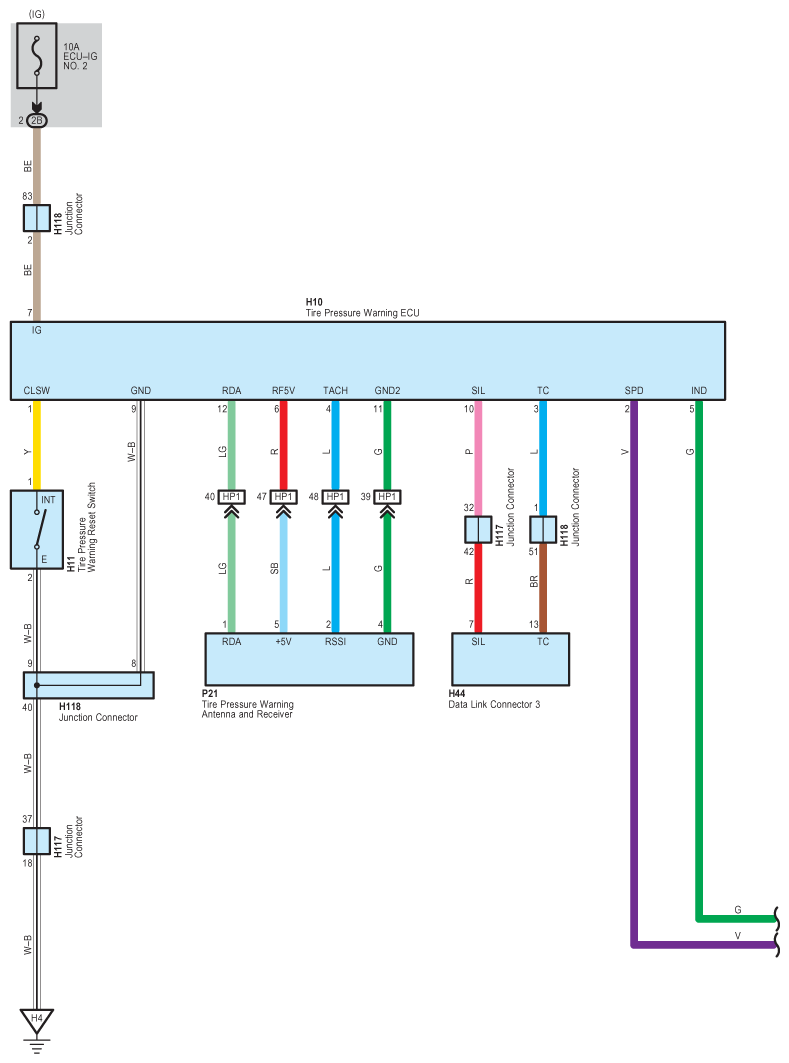

Fig 1: Tire Pressure Warning System Wiring Diagram (1 Of 2)
G09113714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

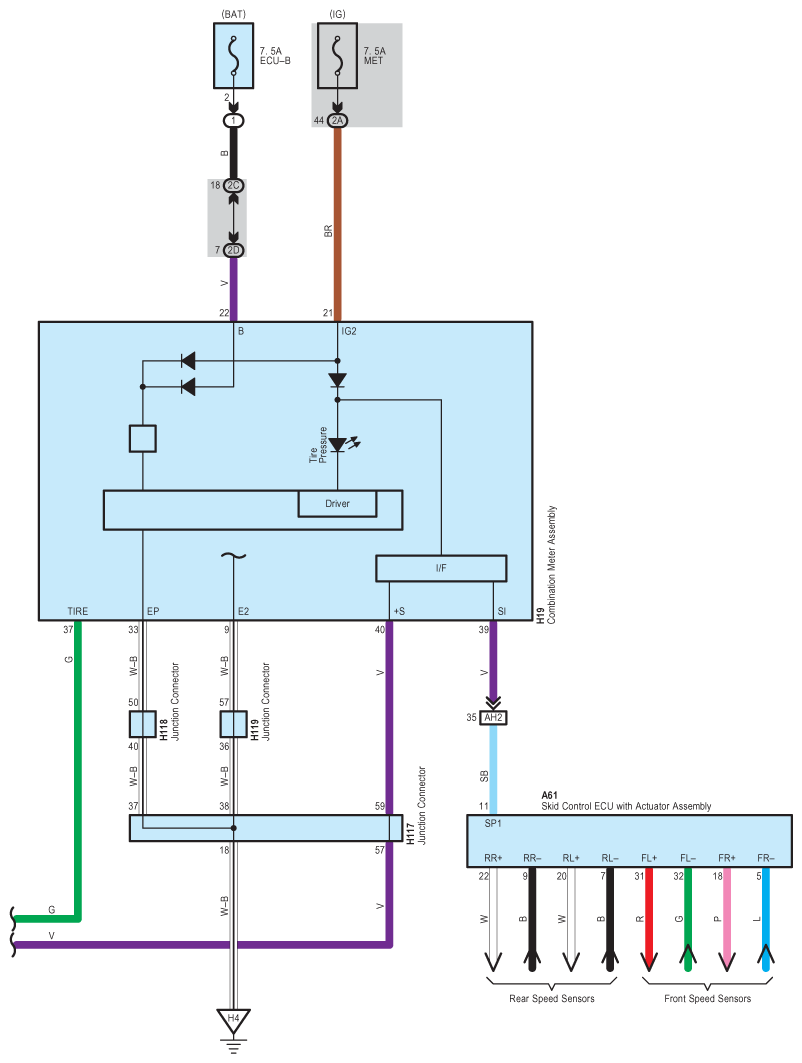

Fig 2: Tire Pressure Warning System Wiring Diagram (2 Of 2)
G09113715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Code See Ground Points Location
H4 LOCATION OF CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS Instrument Panel Brace RH
