Audio System (w/o LEXUS Navigation System w/o Stereo Component Amplifier): Notes

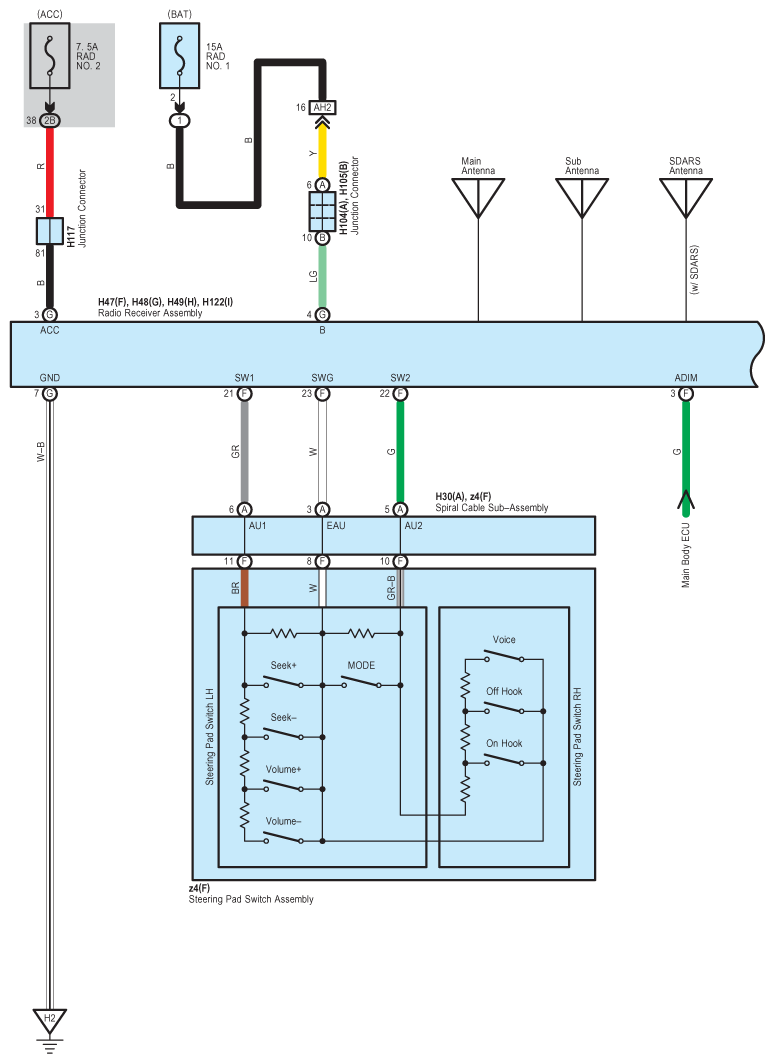

Fig 1: Audio W/O LEXUS Navigation W/O Stereo Component Amplifier System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Audio W/O LEXUS Navigation W/O Stereo Component Amplifier System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

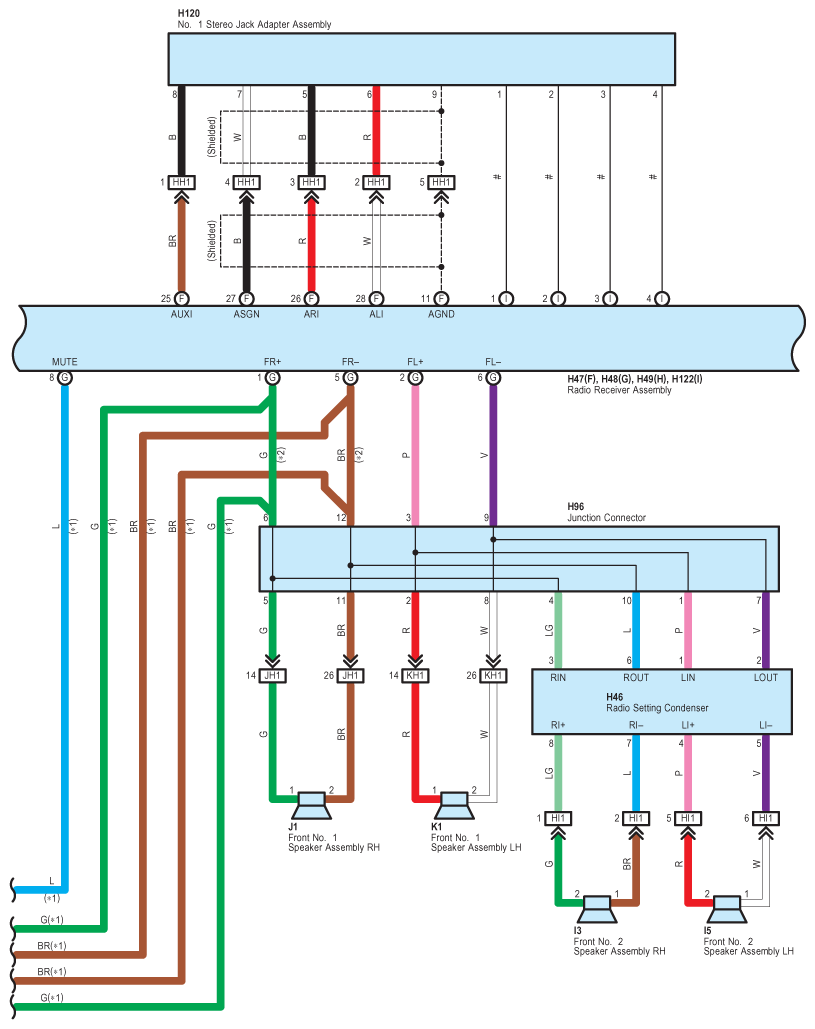

Fig 3: Audio W/O LEXUS Navigation W/O Stereo Component Amplifier System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

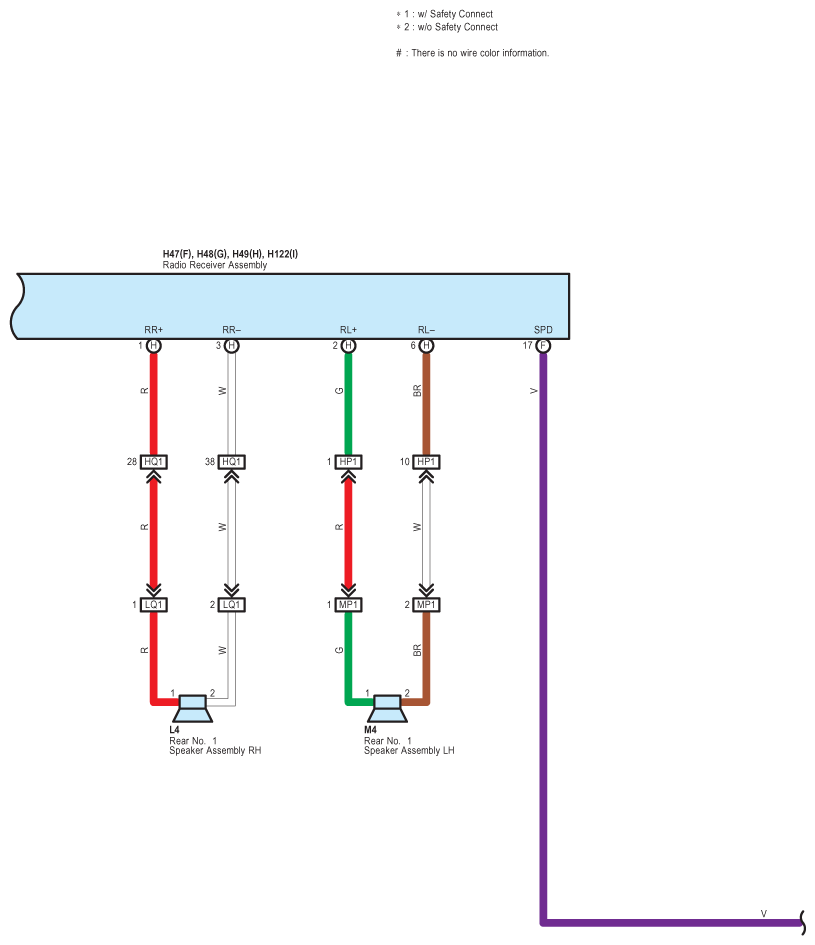

Fig 4: Audio W/O LEXUS Navigation W/O Stereo Component Amplifier System Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

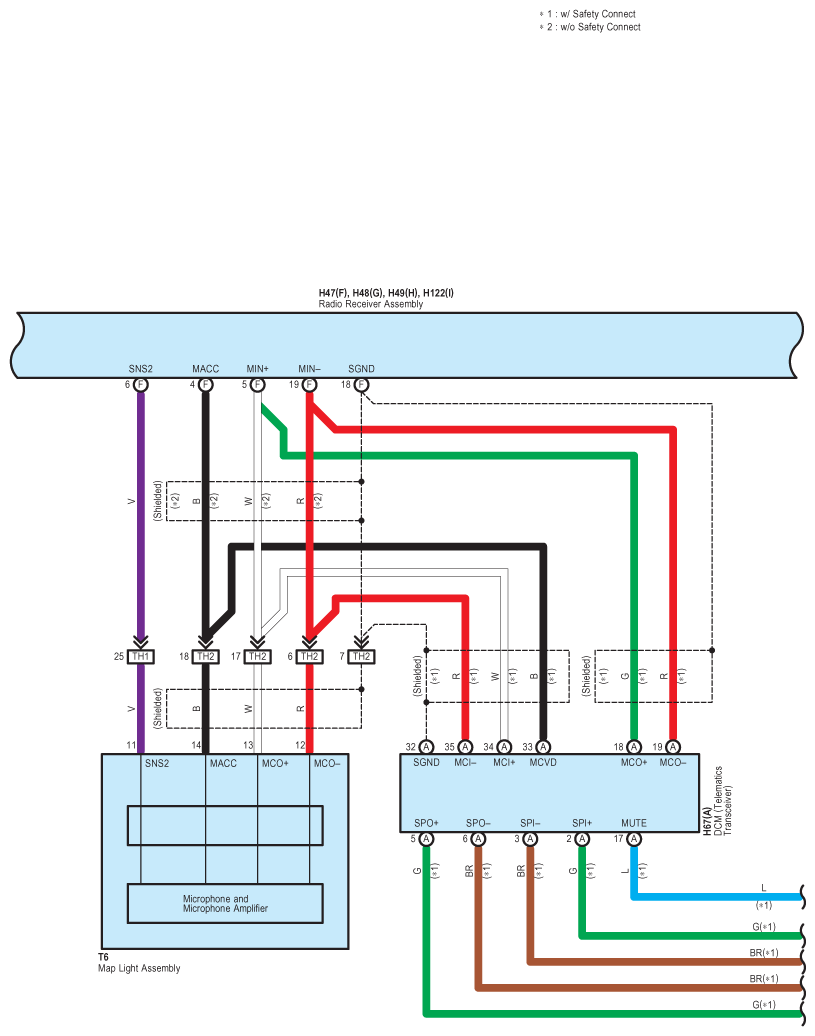

Fig 5: Audio W/O LEXUS Navigation W/O Stereo Component Amplifier System Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
