Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

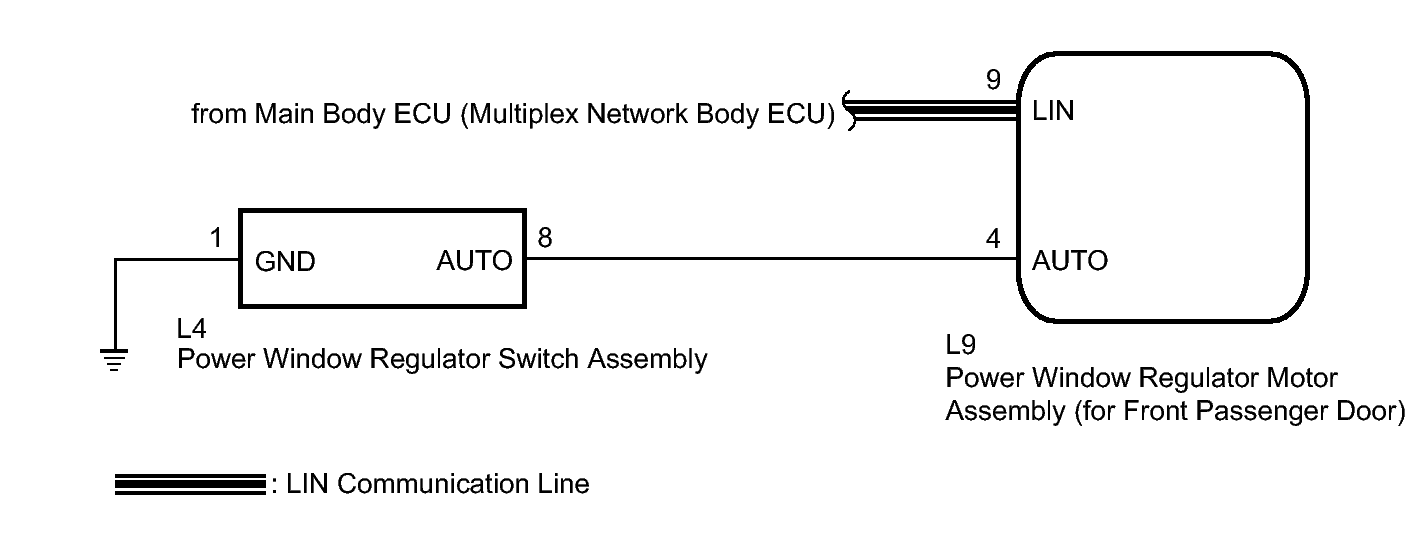

Fig 1: Identifying Power Window Control System Diagram
GTY406799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
